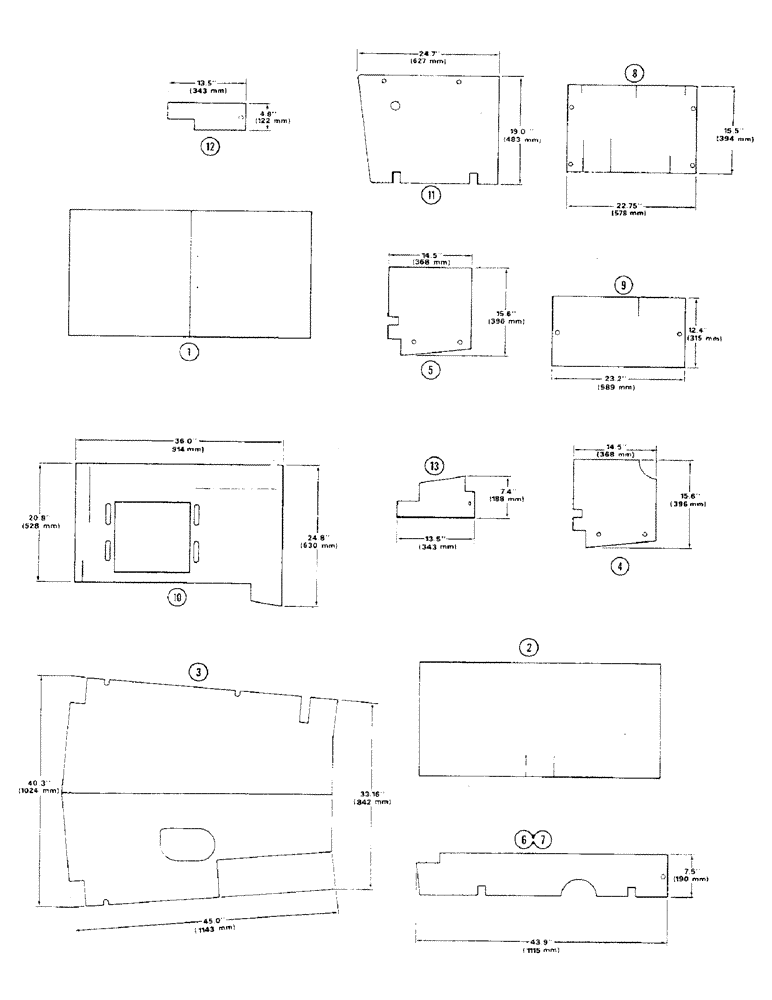

Запчасти Case 475 (292) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R26143

PAD - ROPS canopy roof, front

1шт.

2

R31545

PAD - ROPS canopy roof, rear

1шт.

3

REF

INSTRUCTION

PAD - hood, used on models with horizontal air intake only, cut from R30870, if used

1шт.

For noise reduction pads used on models with vertical air intake, see Figure 294.

1шт.

4

REF

INSTRUCTION

PAD - side screen, upper, right-hand, used on models with horizontal air intake only, cut from R30870, if used

1шт.

For noise reduction pads used on models with vertical air intake, see Figure 294.

1шт.

5

REF

INSTRUCTION

PAD - side screen, upper, left-hand, used on models with horizontal air intake only, cut from R30870, if used

1шт.

For noise reduction pads used on models with vertical air intake, see Figure 294.

1шт.

6

REF

INSTRUCTION

PAD - side panel, lower, right-hand, cut from R30870

1шт.

7

REF

INSTRUCTION

PAD - side panel, lower, left-hand, cut from R30870

1шт.

8

REF

INSTRUCTION

PAD - floor plate, front, cut from R30870

1шт.

9

REF

INSTRUCTION

PAD - floor plate, rear, cut from R30870

1шт.

10

REF

INSTRUCTION

PAD - seat mounting plate, cut from R30870

1шт.

11

REF

INSTRUCTION

PAD - cover, hydraulic reservoir, right-hand side, cut from R30870

1шт.

12

REF

INSTRUCTION

PAD - heel plate, left-hand side, cut from R30870

1шт.

13

REF

INSTRUCTION

PAD - heel plate, right-hand side, cut from R30870

1шт.

R30870

PAD

- bulk roll, 54" (1372 MM) x 72" (1829 MM) x 1" (25 MM)

1шт.

345-44

ADHESIVE

- spray, for attaching foam pads to metal surfaces, 23 fluid ounces (680 ML)

1шт.
