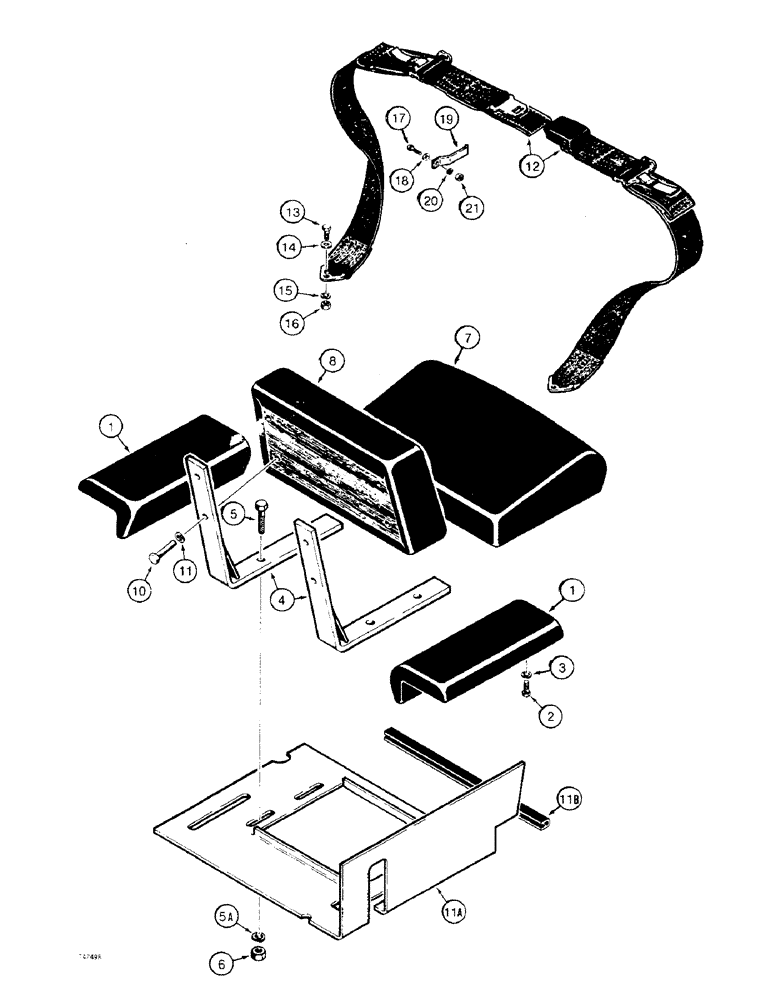

Запчасти Case 475 (288) - SEAT FRAME AND CUSHIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R40342

ARM

REST - seat

2шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

D35198

MOUNTING PARTS

BRACKET - seat mounting

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5a

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

D35226

SEAT

- operators

1шт.

8

D44169

CUSHION

BACKREST - seat

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

11a

R37219

PANEL

PLATE - seat mounting, includes pad, see figure 292 for pad

1шт.

11b

D35424

LINING

TRIM - edge, seat mounting plate

2шт.

12

R36488

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide

1шт.

12

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

13

F42236

STEP BOLT

BOLT - special, seat belts

2шт.

14

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, if used, seat belts

2шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belts 7/16"

2шт.

16

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated, seat belts

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Seat belts Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

18

195-21

WASHER,5/16"

- flat, , If used, Seat belts 5/16"

2шт.

19

R24720

HOOK

BRACKET - seat belt retaining

2шт.

20

92-5

LOCK WASHER,5/16"

seat belts 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, seat belts

2шт.
