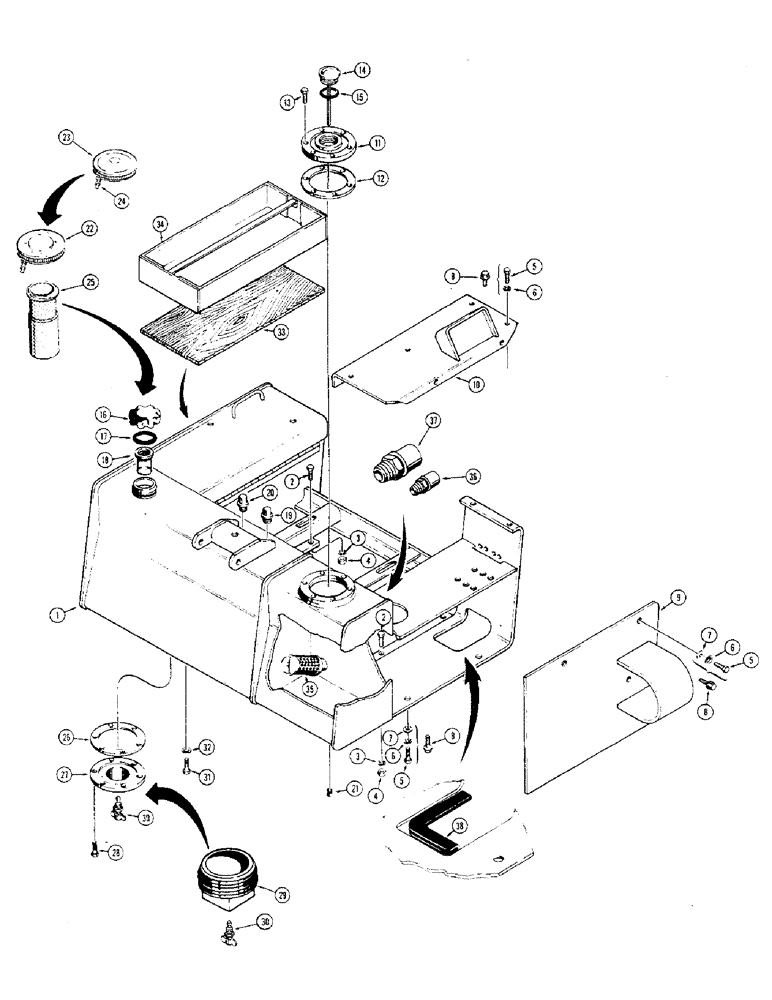

Запчасти Case 475 (286) - FUEL AND HYDRAULIC RESERVOIR FRAME AND COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R31443

FRAME

- fuel and hydraulic reservoir, uses Refs. 16 - 20

1шт.

1

R39376

TANK

FRAME - fuel and hydraulic reservoir, uses Refs. 23 - 25

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

No longer used (Replace with 121-428 flange head bolts, ref. 8) Hex, 1/2"-13 x 1", G5, Full Thd

7шт.

6

92-8

LOCK WASHER,1/2"

used with hex head bolts only 1/2"

7шт.

7

195-33

WASHER,1/2"

- flat, , used with hex head bolts only 1/2"

4шт.

8

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

7шт.

9

R24734

COVER

- hydraulic reservoir, right-hand side

1шт.

10

R42575

COVER

- hydraulic reservoir, top, includes decals

1шт.

11

D34977

CAP

- hydraulic reservoir

1шт.

12

D50547

GASKET,1.52mm Thk

- hydraulic reservoir cap

1шт.

13

L107828

BOLT

- special

6шт.

14

D34945

DIPSTICK

- hydraulic reservoir, metal, replaces all-plastic dipstick on some models

1шт.

15

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- dipstick

1шт.

16

D31747

COVER

CAP - R31443 fuel tank

1шт.

17

D34975

GASKET

- cap, R31443 fuel tank

1шт.

18

D36346

STRAINER ELEMENT

STRAINER - fuel, R31443 fuel tank

1шт.

19

D33028

VALVE

RELIEF VALVE - R31443 fuel tank

1шт.

20

D33027

BREATHER

VALVE - inlet, R31443 fuel tank

1шт.

21

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT, fuel tank and hydraulic reservoir

2шт.

22

R39338

CUP

CAP - R39376 fuel tank, no longer used, order R43900 cap and R43902 chain, see refs. 23 and 24

1шт.

23

R43900

CAP

- R39376 fuel tank

1шт.

24

R43902

CHAIN (CE)

CHAIN - R39376 fuel tank cap

1шт.

25

R39339

STRAINER ELEMENT

STRAINER - fuel, R39376 fuel tank

1шт.

26

D50547

GASKET,1.52mm Thk

- D34979 water trap, if used

1шт.

27

D34979

COVER

TRAP - water, if used

1шт.

28

L107828

BOLT

- special, D34979 water trap, if used

6шт.

29

R27578

PLUG

- tank, if used

1шт.

30

217-81

VALVE

DRAINCOCK - fuel tank

1шт.

31

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

D35022

GUARD

SHIELD - wood, battery

1шт.

34

D50765

TOOL

BOX - operators

1шт.

35

D33557

FILTER, ELEMENT

FILTER - suction, hydraulic reservoir

1шт.

36

R15536

VALVE

RELIEF VALVE - hydraulic reservoir

1шт.

37

R15538

VALVE

- air inlet, hydraulic reservoir

1шт.

38

D35424

LINING

TRIM - edge, hydraulic reservoir, if used

1шт.
