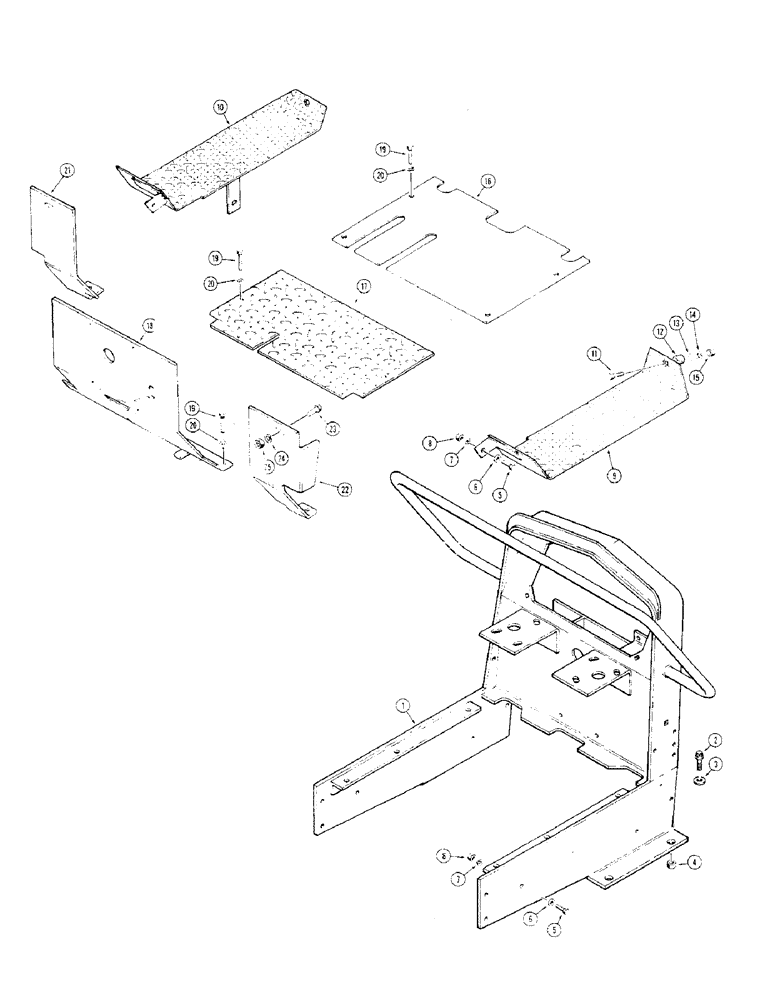

Запчасти Case 475 (284) - COWL AND FLOOR PLATES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R36945

COWL - frame

1шт.

2

166-135

BOLT

- Ferry head, 3/4" - 10 NC x 2-1/4", grade 8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

4шт.

4

25-1012

NUT,3/4"-10, G5

4шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

9

F93353

PLATE - step, right-hand

1шт.

10

F93352

PLATE - step, left-hand

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

12

F10140

SPACER - step plate

2шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

R32172

PLATE

- floor, front

1шт.

17

D35167

PLATE

- floor, rear

1шт.

18

D35169

PLATE - heel

1шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

8шт.

20

92-8

LOCK WASHER,1/2"

8шт.

21

R26121

PLATE - heel, left-hand, if used

1шт.

For noise reduction pads used with heel plates, see Figure 292.

1шт.

22

R26125

PLATE - heel, right-hand, if used

1шт.

For noise reduction pads used with heel plates, see Figure 292.

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
