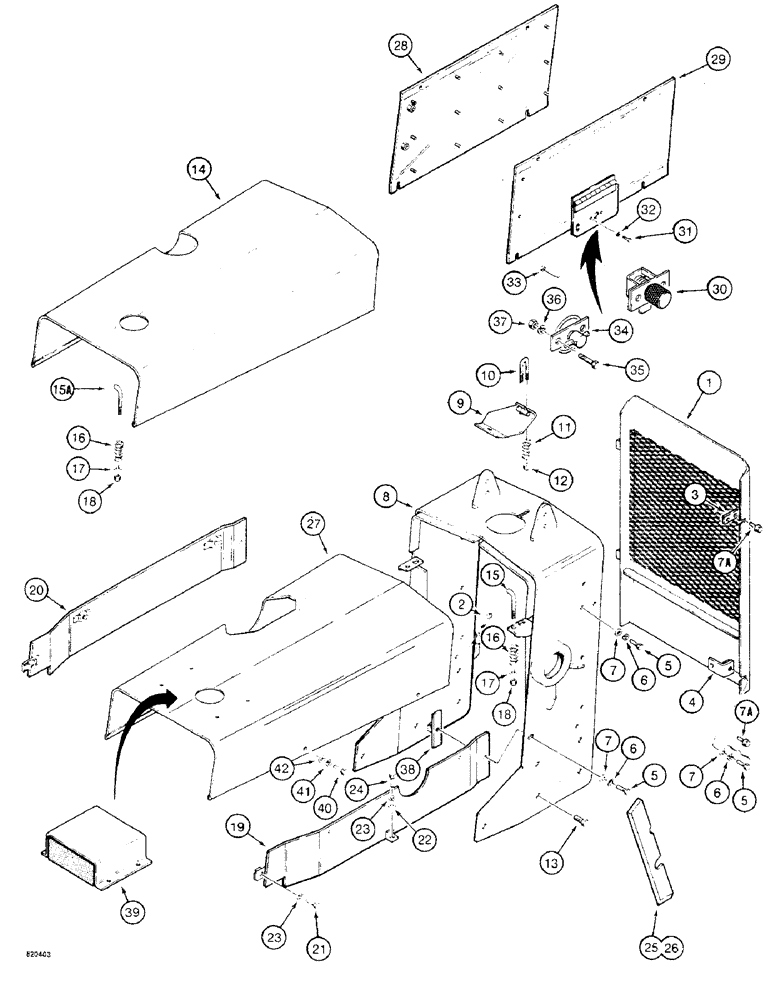

Запчасти Case 475 (282) - HOOD, SHROUD, GRILLE, AND SIDE SHIELDS, MODELS WITH VERTICAL AIR INTAKE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R25772

GRILLE - radiator, models without dozer blade

1шт.

1

R31285

GRILLE - radiator, models with dozer blade

1шт.

2

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Replaces roll pin on some models 3/16" x 1"

2шт.

3

R25762

BRACKET - grille mounting, upper

1шт.

4

D35324

BRACKET - grille mounting, lower

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2-4шт.

6

92-8

LOCK WASHER,1/2"

2-4шт.

7

R24718

WASHER

- special, if used

2шт.

7a

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces hex head bolt, lock washer and flat washer on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

8

R24460

SHROUD - radiator guard, models without dozer blade

1шт.

8

R35515

SHROUD - radiator guard, models with dozer blade

1шт.

9

R40757

LID

DOOR - access, radiator, includes decal

1шт.

10

D35723

BOLT

U-BOLT - access door

1шт.

11

23098

SPRING

- access door

2шт.

12

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

13

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

10шт.

14

R24745

HOOD

- models with vertical air intake

1шт.

15

D33958

BOLT

- special, hood retaining, front

2шт.

15a

D41350

BOLT

BOLT - special, hood retaining, rear

2шт.

16

A34492

SPRING

- bolt

4шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

18

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

19

R31534

PANEL - side, lower, right-hand

1шт.

20

R31535

PANEL

- side, lower, left-hand

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

R24718

WASHER

- special

4шт.

23

92-8

LOCK WASHER,1/2"

6шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

R31450

KIT

- wear plate, models with dozer blade, Includes: Refs. 25, 26

1шт.

25

R31078

LARGE PLATE

WEAR PLATE - right-hand

1шт.

26

R31077

LARGE PLATE

WEAR PLATE - left-hand

1шт.

27

R34360

HOOD - models with vertical air intake

1шт.

28

R34477

SHIELD

- side, left-hand, includes pad, for pad see figure 294

1шт.

29

R34478

SHIELD

- side, right-hand, includes pad, for pad see figure 294, no longer available, order R46093 side shield, L102515 latch, (2) 182-125 bolts, (2) 92-3 washers and (2) 129-7 nuts

1шт.

29

R46093

GUARD

SHIELD - side, right-hand, includes pad, for pad see figure 296

1шт.

30

R25164

FASTENER

- used on R34478 side shield only

1шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

R25164 fastener only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , R25164 Fastener only 1/4"

2шт.

33

25-104

NUT,1/4"-20, G5

R25164 fastener only 1/4"-20, G5

2шт.

34

L102515

LATCH

FASTENER - used on R46093 side shield only

1шт.

35

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no. 10 - 24 NC x 1/2", L102515 fastener only

2шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, , L102515 fastener only #10

2шт.

37

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC, L102515 fastener only

2шт.

38

R31540

STRAP - panel retaining

2шт.

39

REF

INSTRUCTION

COVER ASSEMBLY - air intake, special noise reduction parts, see figure 46

1шт.

40

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

195-88

WASHER - flat, 1/2"

4шт.
