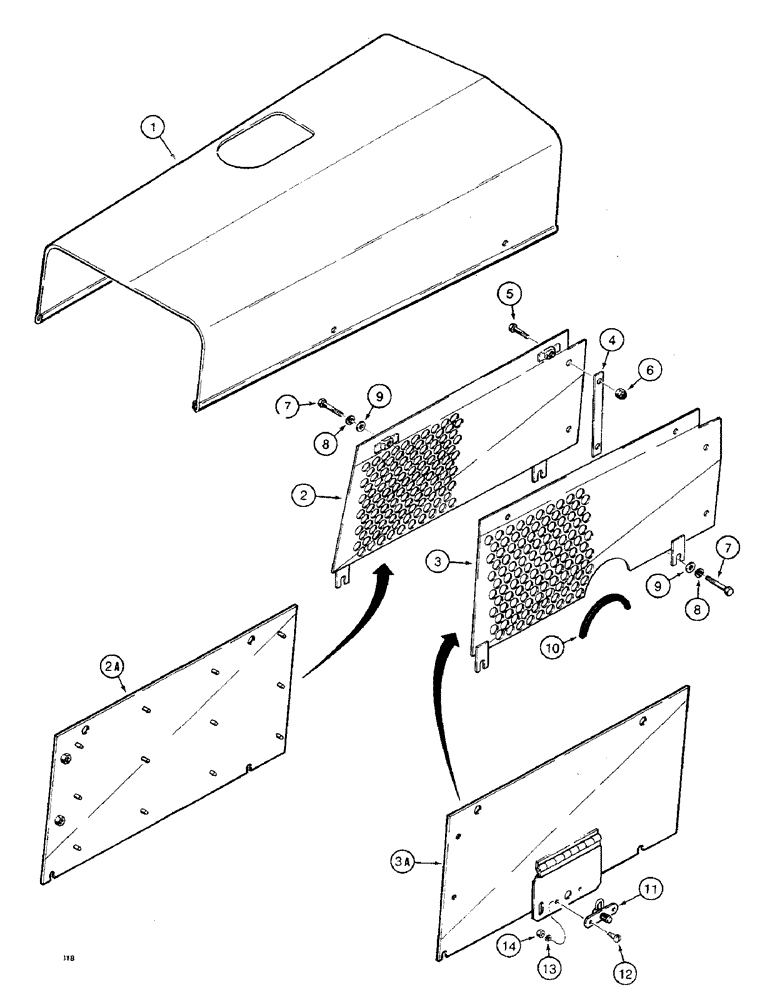

Запчасти Case 475 (280) - HOOD AND SIDE SHIELDS, USED ON MODELS WITH HORIZONTAL AIR INTAKE ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

R31550

HOOD - models with horizontal air intake only

1шт.

2

R31527

SHIELD

- side, left-hand, with holes, no longer available, order R36960 side shield

1шт.

For noise reduction pads used with side screens, see Figure 292.

1шт.

2a

R36960

SHIELD

- side, left-hand, without holes

1шт.

For noise reduction pads used with side screens, see Figure 292.

1шт.

3

R31528

SHIELD

- side, right-hand, with holes, no longer available, order R46093 side shield, L102515 latch, (2) 182-125 screws, (2) 92-3 washers, and (2) 129-7 nuts

1шт.

For noise reduction pads used with side screens, see Figure 292.

1шт.

3a

R46093

GUARD

SHIELD - side, right-hand, without holes

1шт.

For noise reduction pads used with side screens, see Figure 292.

1шт.

3

R31528

SHIELD

SCREEN - side, right-hand

1шт.

For noise reduction pads used with side screens, see Figure 292.

1шт.

4

R31531

STRIP - side screen, used with R31527 and R31528 side shields only

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

6

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

195-533

WASHER,1/2", SAE

- flat, 1/2"

8шт.

10

R26191

TRIM - engine access, right-hand side screen, if used

1шт.

11

L102515

LATCH

FASTENER - R46093 side shield only

1шт.

12

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - no. 10 - 24 NC x 1/2"

2шт.

13

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

129-7

NUT,Hex, #10 - 24

- hex, no. 10 - 24 NC

2шт.
