Запчасти Case 475 (272) - BLADE AND CHUTE ASSEMBLY, 2-1/2" WIDE BLADE - 24", 30", AND 36 COVER DEPTHS (89) - TOOLS

REF

INSTRUCTION

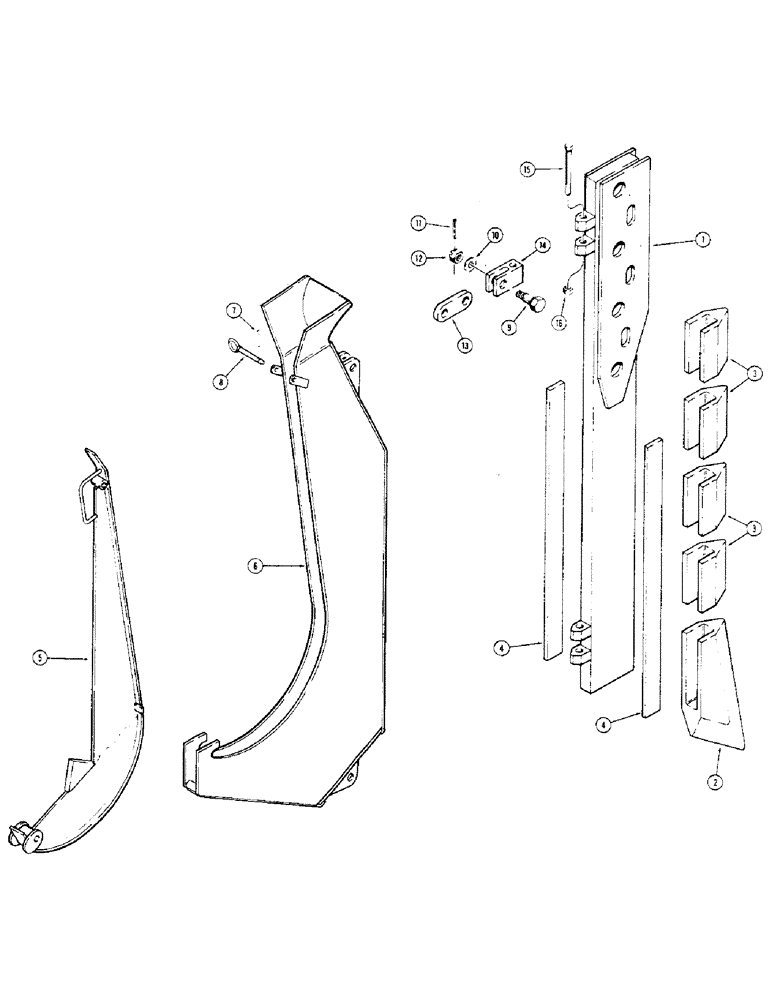

BLADE AND CHUTE ASSEMBLY - machinery item, see Figure 2 for ordering, Includes: Refs. 1-16

1шт.

H611780

BLADE

ASSEMBLY - complete, Includes: Refs. 1-4

1шт.

1

H605949

SHANK

- blade

1шт.

2

H304907

POINT

TIP - blade assembly

1шт.

3

H304881

CYLINDER END CAP

SECTION - blade assembly

4шт.

4

H304865

BAR

- shim, blade sections and tip

2шт.

H634949

GATE ASSY

CHUTE AND GATE ASSEMBLY - complete, replaces H600213 chute and gate assembly, Includes: Refs. 5-16

1шт.

5

H597203

DOOR SEAL

GATE - chute

1шт.

6

H635086

CHUTE ASSY.

CHUTE - drop, replaces and is interchangeable with H600205 chute

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

8

H590034

AXLE PIN

PIN - gate retaining

1шт.

9

H290866

STEP BOLT

SHOULDER BOLT - special, 3/4" - 16 NF, grade 8

4шт.

10

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat, 3/4"

4шт.

11

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, 5/32" x 1 1/2", Slotted

4шт.

12

86632554

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4" - 16 NF

4шт.

13

H279323

LINK

-, Serial Range: chute-blade

2шт.

14

H279331

BLOCK

HINGE - swivel

2шт.

15

28-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- hex head, 3/4" - 16 NF x 5-1/2", grade 8

2шт.

16

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex, self-locking, 3/4" - 16 NF

2шт.

REF

INSTRUCTION

BLADE AND CHUTE ASSEMBLY - machinery item, see Figure 2 for ordering, heavy duty blade, Includes: Refs. 1-16

1шт.

H635524

BLADE

ASSEMBLY - cutting, heavy duty blade, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

SHANK - blade, heavy duty blade, Ref. 1 IS 2-1/2'' [63 MM] x 8'' [203 MM] wide

1шт.

2

H304907

POINT

TIP - blade assembly, heavy duty blade

1шт.

3

H304881

CYLINDER END CAP

SECTION - blade assembly, heavy duty blade

4шт.

4

H304865

BAR

- shim, blade sections and tip, heavy duty

2шт.

H634949

GATE ASSY

CHUTE AND GATE ASSEMBLY - complete, heavy duty blade, Includes: Refs. 5-16

1шт.

5

H597203

DOOR SEAL

GATE - chute, heavy duty blade

1шт.

6

H635086

CHUTE ASSY.

CHUTE - drop, heavy duty blade

1шт.

7

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", heavy duty blade

1шт.

8

H590034

AXLE PIN

PIN - gate retaining, heavy duty blade

1шт.

9

H290866

STEP BOLT

SHOULDER BOLT - special, 3/4" - 16 NF, grade 8, heavy duty blade

4шт.

10

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat, 3/4", heavy duty blade

4шт.

11

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, , Heavy duty blade 5/32" x 1 1/2", Slotted

4шт.

12

86632554

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4" - 16 NF, heavy duty blade

4шт.

13

H279323

LINK

- chute to blade, heavy duty blade

2шт.

14

H279331

BLOCK

HINGE - swivel, heavy duty blade

2шт.

15

28-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- hex head, 3/4" - 16 NF x 5-1/2", grade 8, heavy duty blade

2шт.

16

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex, self-locking, 3/4" - 16 NF, heavy duty blade

2шт.
