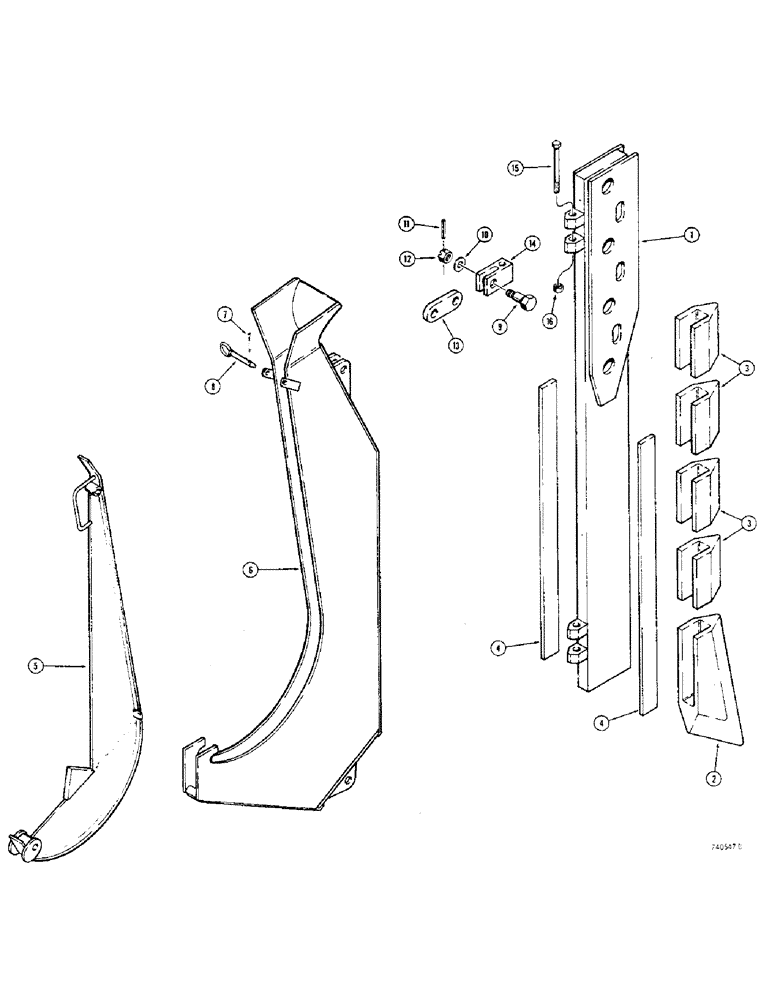

Запчасти Case 475 (270) - CHUTE AND BLADE ASSEMBLY, 2" WIDE BLADE - 24", 30", AND 36" COVER DEPTHS (89) - TOOLS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
CHUTE AND BLADE ASSEMBLY - machinery item, see Figure 2 for ordering, Includes: Refs. 1-16
1шт.
H611772
BLADE
ASSEMBLY - complete, Includes: Refs. 1-4
1шт.
1
H605949
SHANK
- blade
1шт.
2
H304899
POINT
TIP - blade assembly
1шт.
3
H304873
CYLINDER END CAP
SECTION - blade assembly
4шт.
4
H304857
BAR
- shim, blade section and tip
2шт.
H635490
PLATE
CHUTE AND GATE ASSEMBLY - complete, replaces H600197 chute and gate assembly, Includes: Refs. 5-16
1шт.
5
H597179
DOOR SEAL
GATE - chute
1шт.
6
H635508
CHUTE ASSY.
CHUTE - drop, replaces H600189 chute
1шт.
7
132-335
COTTER PIN,1/8" x 1 1/4"
1/8" x 1-1/4"
1шт.
8
H590026
AXLE PIN
PIN - gate retaining
1шт.
9
H290866
STEP BOLT
SHOULDER BOLT - special, 3/4" - 16 NF, grade 8
4шт.
10
195-2089
WASHER,25/32" x 1 1/2" x .083"
- flat, 3/4"
4шт.
11
138-81
LOCK PIN,5/32" x 1 1/2", Slotted
PIN, 5/32" x 1 1/2", Slotted
4шт.
12
86632554
SLOTTED NUT,3/4"-16, G5
NUT - hex, slotted, 3/4" - 16 NF
4шт.
13
H279323
LINK
-, Serial Range: chute-blade
2шт.
14
H279331
BLOCK
HINGE - swivel
2шт.
15
28-1288
BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8
- hex head, 3/4" - 16 NF x 5-1/2", grade 8
2шт.
16
232-46112
LOCK NUT,3/4"-16, GC
NUT - hex, self-locking, 3/4" - 16 NF
2шт.
REF
INSTRUCTION
BLADE AND CHUTE ASSEMBLY - machinery item, see Figure 2 for ordering, heavy duty blade, Includes: Refs. 1-16
1шт.
H635516
BLADE
ASSEMBLY - cutting, Includes: Refs. 1-4
1шт.
1
NSS
NOT SOLD SEPARAT
SHANK - blade, heavy duty blade, Ref. 1 IS 2'' [51 MM] x 8'' [203 MM] wide
1шт.
2
H304899
POINT
TIP - blade assembly, heavy duty blade
1шт.
3
H304873
CYLINDER END CAP
SECTION - blade assembly, heavy duty blade
4шт.
4
H304857
BAR
- shim, blade sections and tip, heavy duty blade
2шт.
H635490
PLATE
CHUTE AND GATE ASSEMBLY - complete, heavy duty blade, Includes: Refs. 5-16
1шт.
5
H597179
DOOR SEAL
GATE - chute, heavy duty blade
1шт.
6
H635508
CHUTE ASSY.
CHUTE - drop, heavy duty blade
1шт.
7
132-335
COTTER PIN,1/8" x 1 1/4"
1/8" x 1-1/4", heavy duty blade
1шт.
8
H590026
AXLE PIN
PIN - gate retaining, heavy duty blade
1шт.
9
H290866
STEP BOLT
SHOULDER BOLT - special, 3/4" - 16 NF, grade 8, heavy duty blade
4шт.
10
195-2089
WASHER,25/32" x 1 1/2" x .083"
- flat, 3/4", heavy duty blade
4шт.
11
138-81
LOCK PIN,5/32" x 1 1/2", Slotted
PIN, , Heavy duty blade 5/32" x 1 1/2", Slotted
4шт.
12
86632554
SLOTTED NUT,3/4"-16, G5
NUT - hex, slotted, 3/4" - 16 NF, heavy duty blade
4шт.
13
H279323
LINK
- chute to blade, heavy duty blade
2шт.
14
H279331
BLOCK
HINGE - swivel, heavy duty blade
2шт.
15
28-1288
BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8
- hex head, 3/4" - 16 NF x 5-1/2", grade 8, heavy duty blade
2шт.
16
232-46112
LOCK NUT,3/4"-16, GC
NUT - hex, self-locking, 3/4" - 16 NF, heavy duty blade
2шт.
