Запчасти Case 475 (268) - CHUTE AND BLADE ASSEMBLY, 1-1/2" WIDE BLADE - 24", 30", AND 36 COVER DEPTHS (89) - TOOLS

REF

INSTRUCTION

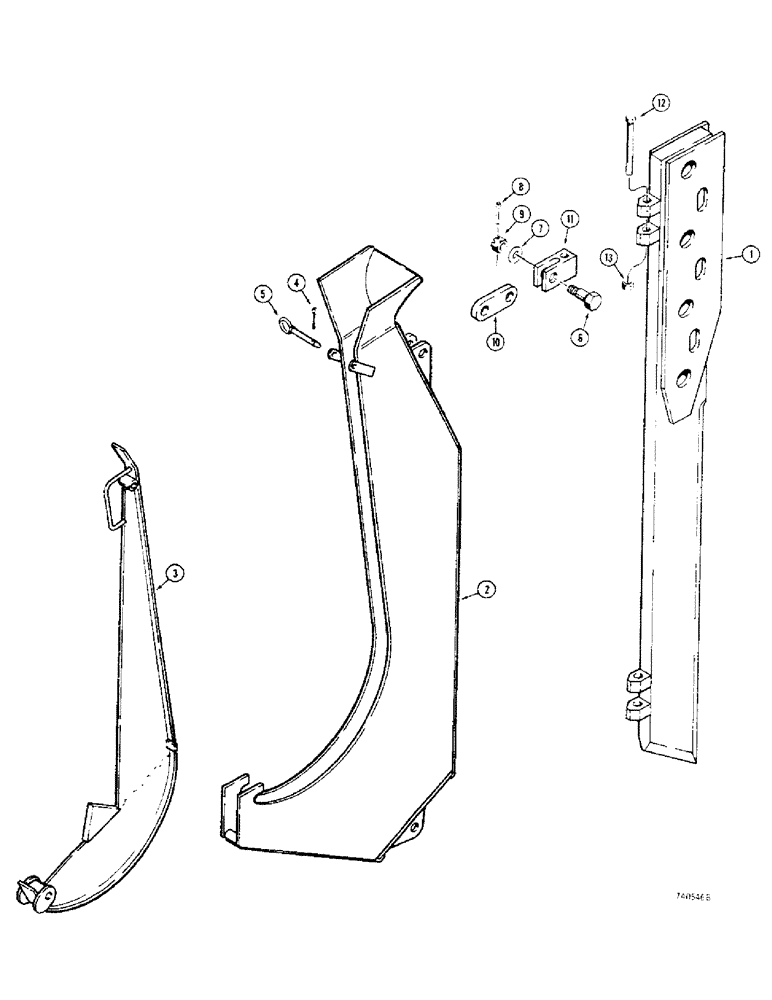

BLADE AND CHUTE ASSEMBLY - machinery item, see Figure 2 for ordering, Includes: Refs. 1-13

1шт.

1

H605956

BLADE

- cutting, 6" (152 MM) wide

1шт.

H635151

PLATE

CHUTE AND GATE ASSEMBLY - complete, replaces H600171 chute and gate assembly, Includes: Refs. 2-13

1шт.

2

H635144

CHUTE ASSY.

CHUTE - drop, replaces H600163 chute

1шт.

3

H594358

DOOR

GATE - chute

1шт.

4

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

5

H590026

AXLE PIN

PIN - gate retaining

1шт.

6

H290866

STEP BOLT

SHOULDER BOLT - special, 3/4" - 16 NF, grade 8

4шт.

7

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat, 3/4"

4шт.

8

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, 5/32" x 1 1/2", Slotted

4шт.

9

86632554

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4" - 16 NF

4шт.

10

H279323

LINK

-, Serial Range: chute-blade

2шт.

11

H279331

BLOCK

HINGE - swivel

2шт.

12

28-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- hex head, 3/4" - 16 NF x 5-1/2", grade 8

2шт.

13

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex, self-locking, 3/4" - 16 NF

2шт.

REF

INSTRUCTION

BLADE AND CHUTE ASSEMBLY - machinery item, see Figure 2 for ordering, heavy duty blade, Includes: Refs. 1-13

1шт.

1

H635573

BLADE

- cutting, 8" (203 MM) wide , Ref. 1 IS 1-1/2'' [38 MM] x 8'' [203 MM] wide, heavy duty blade

1шт.

H635151

PLATE

CHUTE AND GATE ASSEMBLY - complete, heavy duty blade, Includes: Refs. 2-13

1шт.

2

H635144

CHUTE ASSY.

CHUTE - drop, heavy duty blade

1шт.

3

H594358

DOOR

GATE - chute, heavy duty blade

1шт.

4

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", heavy duty blade

1шт.

5

H590026

AXLE PIN

PIN - gate retaining, heavy duty blade

1шт.

6

H290866

STEP BOLT

SHOULDER BOLT - special, 3/4" - 16 NF, grade 8, heavy duty blade

4шт.

7

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat, 3/4", heavy duty blade

4шт.

8

138-81

LOCK PIN,5/32" x 1 1/2", Slotted

PIN, , Heavy duty blade 5/32" x 1 1/2", Slotted

4шт.

9

86632554

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4" - 16 NF, heavy duty blade

4шт.

10

H279323

LINK

- chute to blade, heavy duty blade

2шт.

11

H279331

BLOCK

HINGE - swivel, heavy duty blade

2шт.

12

28-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- hex head, 3/4" - 16 NF x 5-1/2", grade 8, heavy duty blade

2шт.

13

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex, self-locking, 3/4" - 16 NF, heavy duty blade

2шт.
