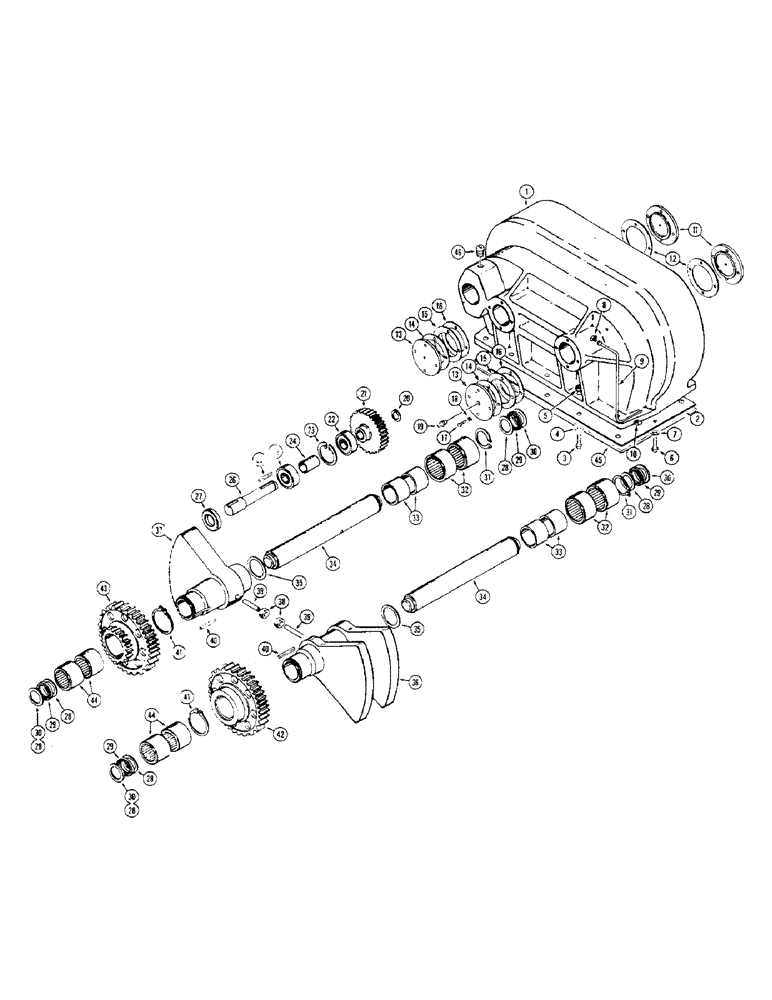

Запчасти Case 475 (266) - CABLE PLOW ASSEMBLY, VIBRATOR - GEAR BOX (89) - TOOLS

H542282

DAMPER

VIBRATOR ASSEMBLY - gear box, Includes: Refs. 1-46

1шт.

1

H139220

CASE

- vibrator

1шт.

2

H146464

GASKET

- case

1шт.

3

113-2615

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8" - 11 NC x 3", grade 8

10шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

20шт.

5

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

6

113-273

BOLT

- hex head, 3/8" - 16 NC x 1-1/2", if used

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

2шт.

8

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, x 1/4" tube, if used 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

8

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree, 1/4" NPT x 3/8" tube, if used

1шт.

9

H546275

TUBE,0.25" OD x 18" L

- vent, 1/4" tube OD, 222-762 elbow, if used

1шт.

9

H627810

TUBE,0.38" OD x 18" L

- vent, 3/8" tube OD, 222-768 elbow, if used

1шт.

10

H346163

CLAMP - tube

1шт.

11

H144428

CYLINDER END CAP

COVER - case, rear

2шт.

12

H149948

GASKET

- rear cover

2шт.

13

H144410

COVER ASSY

COVER - case, front

2шт.

14

H149930

COVER ASSY

GASKET - front cover

2шт.

15

H151779

SHIM,.005" Thk

(0.127 mm) .005" Thk

4шт.

16

H151787

SHIM,.015" Thk

(0.381 mm) .015" Thk

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

20

F62235

SNAP RING,#112, Ext

RING, Snap, , pin, small, drive gear #112, Ext

1шт.

21

H150979

GEAR WHEEL

DRIVE GEAR - vibrator

1шт.

22

H747477

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

- drive gear shaft

2шт.

23

H748632

SNAP RING,2.812", Int, #281

Ring, Snap, , shaft, large, drive gear 2.812", Int, #281

1шт.

24

H144493

SPACER

- bearing

1шт.

25

H34488

KEY

- square, 3/8" x 1-1/2"

1шт.

26

H140236

GEAR WHEEL

SHAFT - gear, drive

1шт.

27

H749309

SEAL

OIL SEAL - shaft

1шт.

28

H147785

BEARING WASHER

THRUST WASHER - .031" (0.787 MM) thick

1шт.

29

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - thrust

4шт.

30

A54021

WASHER

THRUST WASHER - .093" (2.36 MM) thick

1шт.

31

H748624

SNAP RING,#250, Ext

RING, Snap, , shaft, driven gear #250, Ext

2шт.

32

H747915

NEEDLE BEARING,76.2 mm ID x 95.25 mm OD x 44.5 mm

ROLLER BEARING - driven gear shaft

4шт.

33

H747923

BEARING CUP,63.5 mm ID x 76.2 mm OD x 44.45 mm

RACE - roller bearing

4шт.

34

H146696

SHAFT

- gear, driven

2шт.

35

H147934

SPACER

- counterweight

2шт.

36

H143321

COUNTERWEIGHT - two bar

1шт.

37

H143313

WEIGHT

COUNTERWEIGHT - single bar

1шт.

38

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8" - 11 NC, plated

2шт.

39

178-852

SET SCREW,Hex Soc, 5/8"-11 x 2"

- hex socket, 5/8" - 11 NC x 2"

2шт.

40

H380030

KEY

- square, 1/4" x 1-3/8"

2шт.

41

39323

SNAP RING,#325, Ext

RING, Snap, , driven gear #325, Ext

2шт.

42

H132092

GEAR WHEEL

DRIVEN GEAR - vibrator

1шт.

43

H141655

GEAR WHEEL

DRIVEN GEAR - vibrator

1шт.

44

H747899

ROLLER BEARING

- driven gear shaft, front

4шт.

45

H146456

LARGE PLATE

COVER - gear case, bottom

1шт.

46

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, if used Hex Soc, 1/4"-18 NPTF

1шт.
