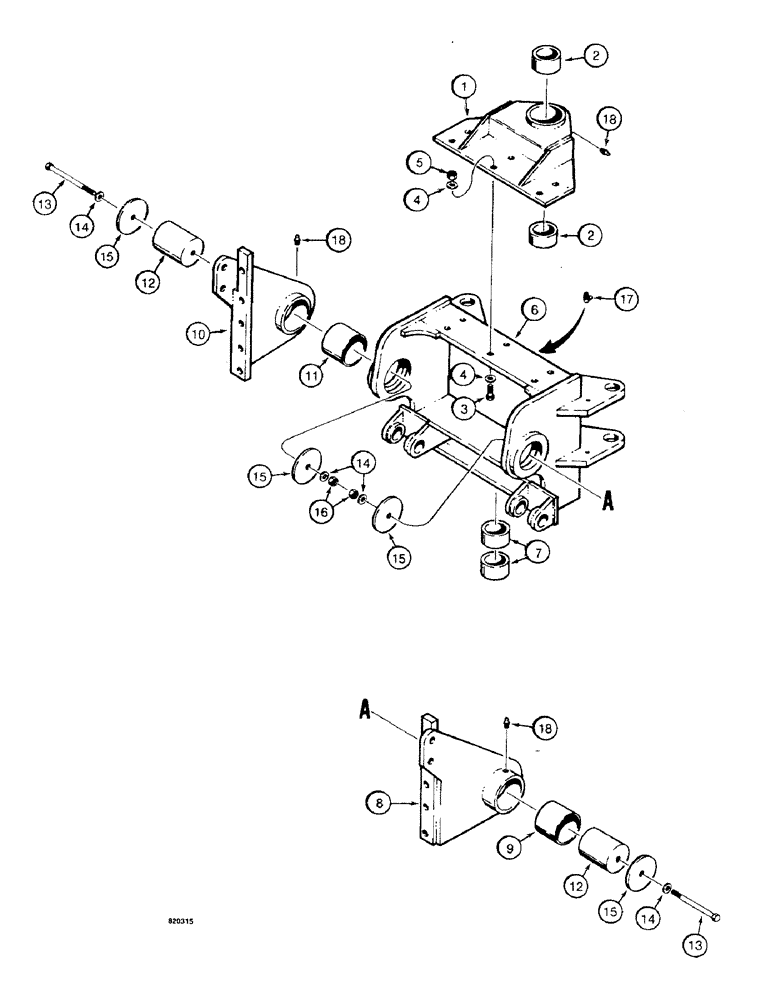

Запчасти Case 475 (264) - CABLE PLOW ASSEMBLY, TRUNNION AND SWING FRAME (89) - TOOLS

1

H596635

FUNNEL

FRAME - swing, Includes: Ref. 2

1шт.

2

H199463

BUSHING

- swing frame

2шт.

3

113-772

BOLT (SPREADER),Hex, 3/4" - 10 x 2-1/2", Gr 8

BOLT - hex head, 3/4" - 10 NC x 2-1/2", grade 8, use with Loctite 242 (Blue)

6шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

12шт.

5

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

6

H596569

FRAME

- trunnion, Includes: Ref. 7

1шт.

7

H199463

BUSHING

- trunnion frame

2шт.

8

H560979

PLATE ASSY.

PLATE - side, left-hand side of crawler, Includes: Ref. 9

1шт.

9

H199307

BUSHING

- plate

1шт.

10

H560987

PLATE ASSY.

PLATE - side, right-hand side of crawler, Includes: Ref. 11

1шт.

11

H199307

BUSHING

- plate

1шт.

12

H200055

SHAFT

- pivot

2шт.

13

113-2604

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8" - 11 NC x 6", grade 8

2шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

4шт.

15

H228452

WASHER

- special, shaft retaining

4шт.

16

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITIING - straight, 1/8" NPT

3шт.
