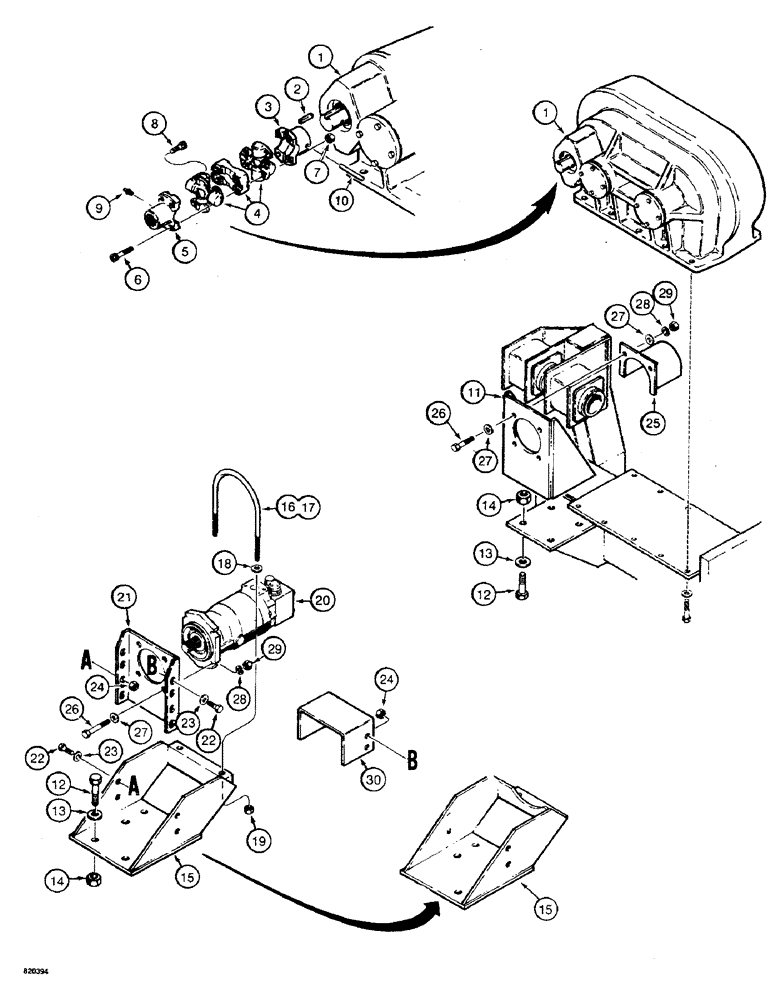

Запчасти Case 475 (262) - CABLE PLOW ASSEMBLY, GEAR BOX AND MOTOR MOUNTING (89) - TOOLS

1

H542282

DAMPER

VIBRATOR ASSEMBLY - gear box, parts list figure 266

1шт.

2

HO49379

KEY - yoke, square, 3/8" x 1-3/8", replaces 1-1/2" long key

1шт.

3

H387977

YOKE

- drive, keyed, has 3/8" threaded hole in bottom, replaces H242354 yoke without hole

1шт.

4

H577478

DIFF. SPIDER

UNIVERSAL JOINT ASSEMBLY - motor drive

1шт.

5

H234823

YOKE

- drive, splined

1шт.

6

62-516

HEX SOC SCREW,5/16"-24 x 1"

BOLT - hex socket head, 5/16" - 24 NF x 1"

4шт.

7

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

4шт.

8

62-512

HEX SOC SCREW,5/16"-24 x 3/4"

BOLT - hex socket head, 5/16" - 24 NF x 3/4"

4шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , tapered threads 1/4"-28 NPT x .54" lg

1шт.

10

138-2056

PIN,6.35mm OD x 63.5mm L, Coiled

1шт.

11

H562108

SUPPORT

- motor, no longer available, order H639989 kit, see below

1шт.

12

113-772

BOLT (SPREADER),Hex, 3/4" - 10 x 2-1/2", Gr 8

BOLT - hex head, 3/4" - 10 NC x 2-1/2", grade 8, use with Loctite 242 (Blue)

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

14

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

15

H637546

MOUNTING PARTS

SUPPORT - motor

1шт.

16

H366013

HARDWARE

U-BOLT - 1-1/2" length thread, used with H637546 support with U-shaped bracket, if used

1шт.

17

H389072

U-BOLT

- 2-3/4" length thread, used with H637546 support with rectangular bracket, if used

1шт.

18

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

19

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

20

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, hydraulic connections figure 204, parts list figure 208

1шт.

21

H366054

BRACKET

- motor mounting

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

24

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

25

R29927

GUARD - yoke, with mounting flange, used with H562108 motor support only, if used

1шт.

26

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

4шт.

27

R24323

WASHER

- special

8шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

30

R41085

GUARD

- yoke, without mounting flange, used with H637546 motor support only, if used

1шт.

H639989

SPARE PART

1шт.

KIT - motor mounting, includes H637546 motor support, H366054 bracket, R41085 yoke guard, hardware, and instructions. Note that when installing the new motor support H637546 on the old H596726 gear box frame (Ref. 1) the plate to which the support mounts must be reworked. The kit includes instructions for this rework.

1шт.
