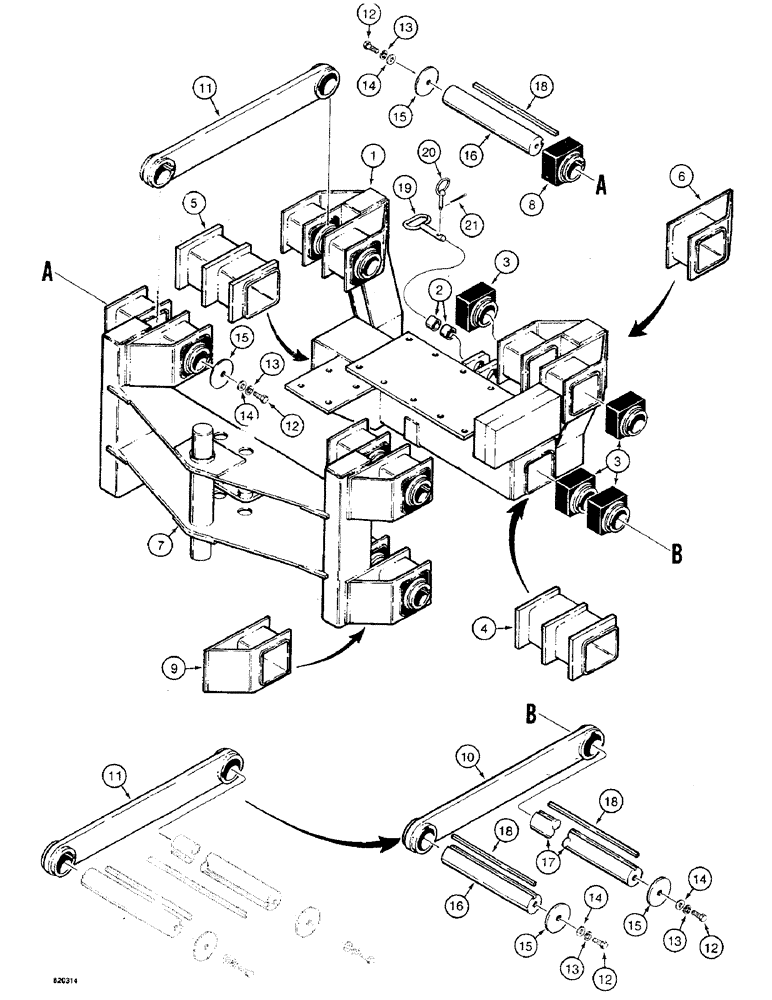

Запчасти Case 475 (260) - CABLE PLOW ASSEMBLY, GEAR BOX FRAME AND PIVOT FRAME (89) - TOOLS

1

H596726

MOUNTING PARTS

FRAME ASSEMBLY - gear box and blade mounting, use with H573436 pivot frame (Ref. 7) and H587568 links, if used

1шт.

1

H650655

FUNNEL

FRAME ASSEMBLY - gear box and blade mounting, use with H650663 pivot frame (Ref. 7) and H650648 links, if used, Includes: Refs. 2-6

1шт.

2

H275404

BUSHING

- blade

8шт.

R38288

BUSHING

KIT - gear box frame, includes bushings, weldments and instructions, Includes: Refs. 3-6

1шт.

3

H230862

SHOCK ABSORBER

BUSHING - rubber

8шт.

4

H561159

MOUNTING PARTS

FRAME - bushing, lower, right-hand

1шт.

5

H561167

MOUNTING PARTS

FRAME - bushing, lower, left-hand

1шт.

6

H561076

MOUNTING PARTS

FRAME - bushing, upper

4шт.

7

H573436

FUNNEL

FRAME ASSEMBLY - pivot, use with H596726 gear box frame (ref. 1) and H587568 links, if used

1шт.

7

H650663

FUNNEL

FRAME ASSEMBLY - pivot, use with H650655 gear box frame (ref. 1) and H650648 links, if used

1шт.

R38287

SPRING

KIT - pivot frame, includes bushings, weldments, and instructions, Includes: Refs. 8, 9

1шт.

8

H230862

SHOCK ABSORBER

BUSHING - rubber

8шт.

9

H561076

MOUNTING PARTS

FRAME - bushing

8шт.

10

H587568

LINK

- gear box frame to pivot frame, keyways for shaft mounting key point up, used with H596726 gear box frame and H573436 pivot frame, if used

4шт.

11

H650648

DRAG LINK

LINK - gear box frame to pivot frame, keyways for shaft mounting key point in toward each other, used with H650655 gear box frame and H650663 pivot frame, if used

4шт.

12

113-2605

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8, Full Thd

- hex head, 5/8" - 11 NC x 1-1/4", grade 8

14шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

14шт.

15

H230516

WASHER

- special, shaft retaining

14шт.

16

H200089

SHAFT

- link mounting, 13-1/2" (343 MM) long

6шт.

17

H200097

SHAFT

- link mounting, 43-3/4" (1111 MM) long

1шт.

18

H255380

KEY

- square, 3/8" x 13-1/4"

8шт.

19

REF

INSTRUCTION

PIN - blade mounting, see figure 258

2шт.

20

REF

INSTRUCTION

PIN - small, pin retaining, see figure 258

2шт.

21

REF

INSTRUCTION

COTTER PIN - 5/32" x 1-1/4", see figure 258

2шт.
