Запчасти Case 475 (256) - SHEAVE, WITH HUB FLANGE (89) - TOOLS

NSS

NOT SOLD SEPARAT

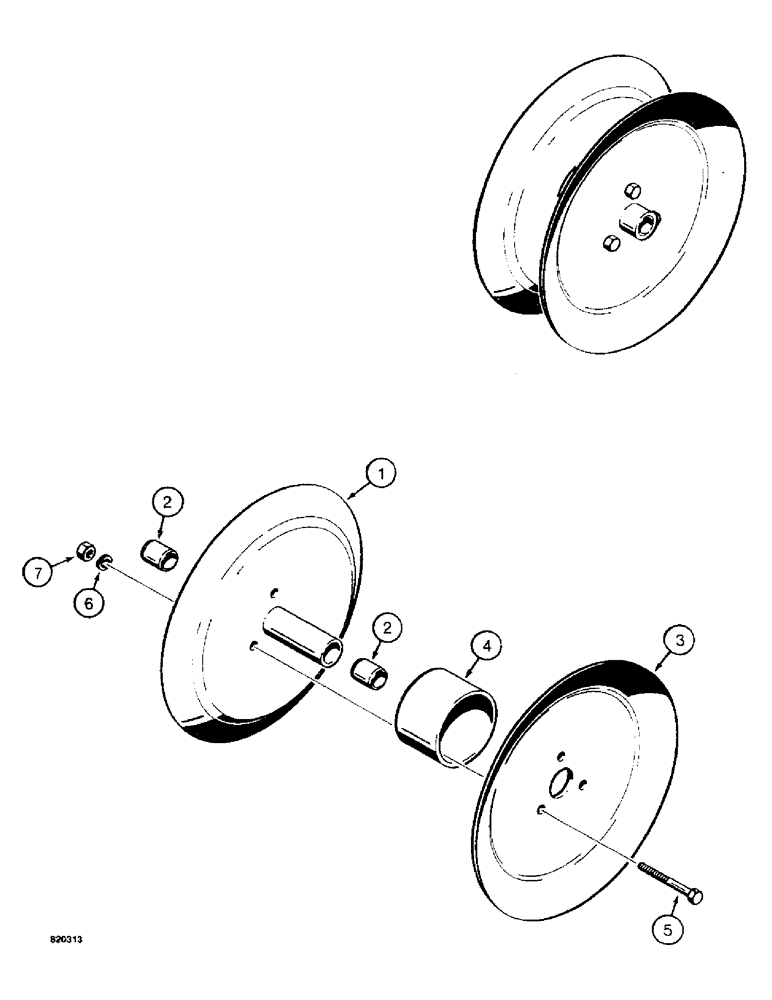

SHEAVE ASSEMBLY - for 2" (51 MM) cable, Includes: R43151 disc assembly and Refs. 1-7

2шт.

R43151

DISC ASSEMBLY - sheave half with hub, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

DISC - sheave half with hub

1шт.

2

R26240

BUSHING - disc

2шт.

3

R43152

SHEAVE

DISC - sheave half without hub

1шт.

4

R43149

SPACER - sheave

1шт.

5

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.
