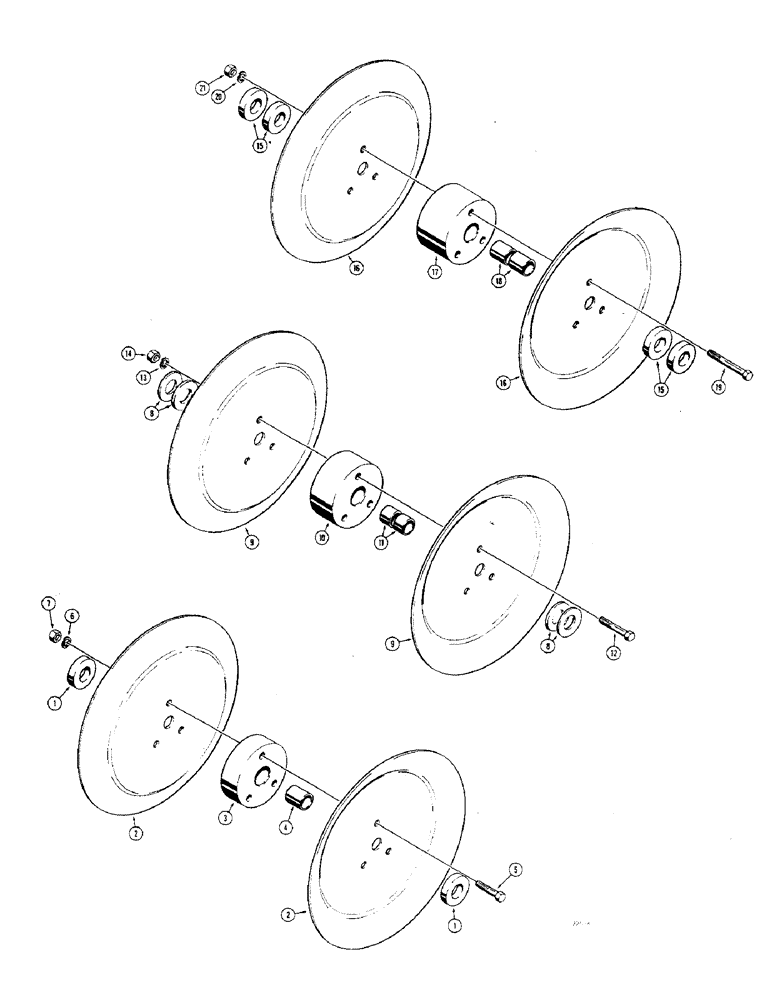

Запчасти Case 475 (254) - SHEAVES, WITHOUT HUB FLANGE, SHEAVE FOR 1" (25.4 MM) CABLE (89) - TOOLS

R5241

X

SHEAVE ASSEMBLY - for 1" (25.4 MM) cable, no longer available, order R26222 sheave assembly, Includes: Refs. 1-7

2шт.

1

R26237

SPACER

- sheave

2шт.

R26220

SHEAVE

- complete, Includes: Refs. 2-7

1шт.

2

R26231

SHEAVE

DISC - sheave half

2шт.

R26223

SPACER ASSEMBLY - sheave assembly, Includes: Refs. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - sheave

1шт.

4

R26240

BUSHING - sheave

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

R5242

WASHER

SHEAVE ASSEMBLY - for 1-1/2" (38 MM) cable, no longer available, order R26222 sheave assembly, Includes: Refs. 8-14

2шт.

8

195-45

WASHER,3/4"

Sheave for 1-1/2'' [38 mm] cable 3/4"

4шт.

R26221

SHEAVE

- complete, no longer available, order R26222 sheave assembly, sheave for 1-1/2'' [38 MM] cable, Includes: Refs. 9-11

1шт.

9

R26231

SHEAVE

DISC - sheave half , sheave for 1-1/2'' [38 MM] cable

2шт.

R26224

SPACER ASSEMBLY - sheave assembly , sheave for 1-1/2'' [38 MM] cable, Includes: Refs. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - sheave , for 1-1/2'' [38 MM] cable

1шт.

11

L15247

BUSHING

sheave for 1-1/2'' [38 MM] cable

2шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2", sheave for 1-1/2'' [38 MM] cable

3шт.

13

92-6

LOCK WASHER,3/8"

sheave for 1-1/2'' [38 mm] cable 3/8"

3шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, sheave for 1-1/2'' [38 MM] cable

3шт.

15

R26237

SPACER

- sheave, for 2'' [51 MM] cable

4шт.

R26222

SHEAVE

ASSEMBLY - for 2" (51 MM) cable, for 2'' [51 MM] cable, Includes: Refs. 16-21

2шт.

16

R26231

SHEAVE

DISC - sheave half , for 2'' [51 MM] cable

2шт.

R26225

SPACER ASSEMBLY - sheave assembly, for 2'' [51 MM] cable, Includes: Refs. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - sheave, for 2'' [51 MM] cable

1шт.

18

R26240

BUSHING - sheave, for 2'' [51 MM] cable

2шт.

19

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4", sheave for 2'' [51 MM] cable

3шт.

20

92-6

LOCK WASHER,3/8"

sheave for 2'' [51 MM] cable 3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, sheave for 2'' [51 MM] cable

3шт.
