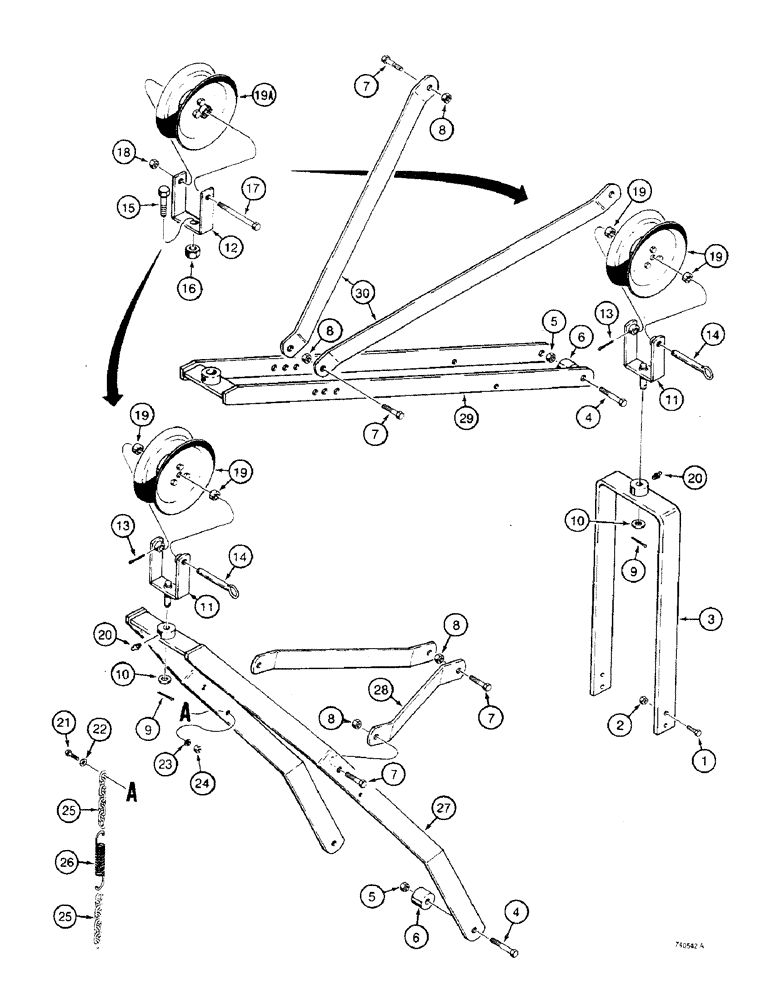

Запчасти Case 475 (252) - CABLE CARRIER (89) - TOOLS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

2

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

3

R24360

BRACKET - sheave mounting, front

1шт.

4

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

5

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

6

R24376

SPACER - mounting

2шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

8

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

9

132-95

COTTER PIN,3/16" x 1 1/2"

PIN, Split (Cotter), , R26229 swivel only 3/16" x 1 1/2"

2шт.

10

D30196

WASHER

- special, R26229 swivel only

2шт.

11

R26229

PIVOT

SWIVEL - sheave, mounts with washer and cotter pin, no longer available, order R42958 swivel, (1) 26-1664 bolt, (1) 131-20 nut, (1) 15-12120 bolt, and (1) 131-16 nut

2шт.

12

R42958

FORK

SWIVEL - sheave, mounts with bolt and nut

2шт.

13

132-99

COTTER PIN,3/16" x 2"

PIN, Split (Cotter), , R26229 swivel only 3/16" x 2"

2шт.

14

R26236

SHAFT

PIN - sheave, R26229 swivel only, may be replaced with (1) 15-12120 bolt and (1) 131-16 nut

2шт.

15

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4", grade 8 R42958 swivel

2шт.

16

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, R42958 swivel

2шт.

17

15-12120

BOLT (MACHINE)

BOLT - hex head, 3/4" - 10 NC x 7-1/2", if used

2шт.

18

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , If used 3/4"-10, GB

2шт.

19

REF

INSTRUCTION

SHEAVE - cable guide, without hub flange, see figure 254 for correct assembly and components

2шт.

19a

REF

INSTRUCTION

SHEAVE - cable guide, with hub flange, parts list figure 256

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

25

T33946

CHAIN - sheave bracket retaining

2шт.

26

R31412

SPRING

- chain

1шт.

27

R24369

BRACKET - sheave, used on models without rops

1шт.

28

R24375

ARM - tension, used on models without rops

2шт.

29

R29616

BRACKET - sheave, used on models with rops

1шт.

30

R29606

ARM - tension, used on models with rops

2шт.
