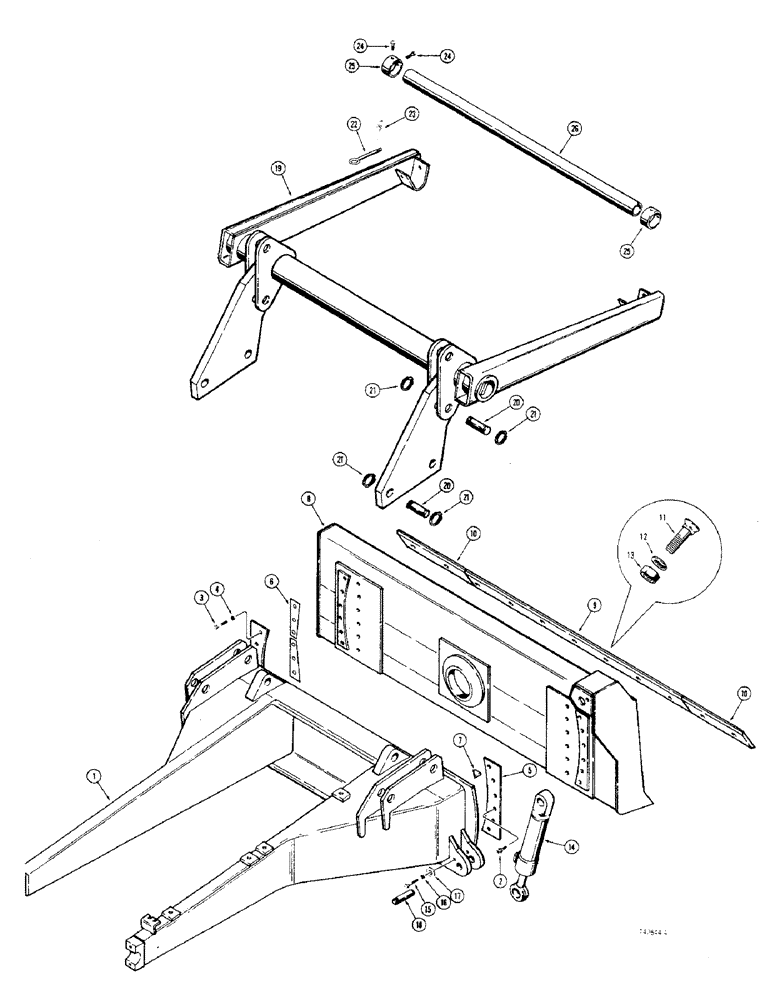

Запчасти Case 475 (250) - DOZER BLADE WITH REEL CARRIER (86) - DOZER

1

REF

INSTRUCTION

C-FRAME - dozer, see figure 248

1шт.

2

164-82

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 1 3/4"

BOLT - hex socket head, 5/8" - 11 NC x 1-3/4", grade 8

4шт.

3

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

D47764

PLATE ASSY.

PLATE - guide

2шт.

6

D47911

SHIM,.0359" Thk

(0.912 mm) .0359" Thk

1шт.

7

D42402

GAUGE

- leveling, weld on

1шт.

8

R31043

BLADE - dozer

1шт.

9

R31003

CUTTING EDGE - center

1шт.

10

R29742

BLADE

CUTTING EDGE - end

2шт.

11

19-828

BOLT,1/2"-13 x 1 3/4", G5

PLOW BOLT - 1/2" - 13 NC x 1-3/4"

13шт.

12

92-8

LOCK WASHER,1/2"

13шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

13шт.

14

REF

INSTRUCTION

CYLINDER - tilt, see figures 222 or 224

1шт.

15

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

18

D34796

PIN

- tilt cylinder mounting

2шт.

19

R33105

REEL CARRIER - used with dozer blade

1шт.

20

D28037

AXLE PIN

PIN - reel carrier mounting

6шт.

21

D25279

SNAP RING,M35, Int

- pin retaining

12шт.

22

R26247

AXLE PIN

PIN - bar retaining

2шт.

23

136-160

COTTER PIN,Int, 13/64" x .156"

HAIR PIN - 1-13/16" long

2шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

R24390

STOP

RETAINER - reel carrier bar

2шт.

26

R24392

BAR

- reel carrier

1шт.
