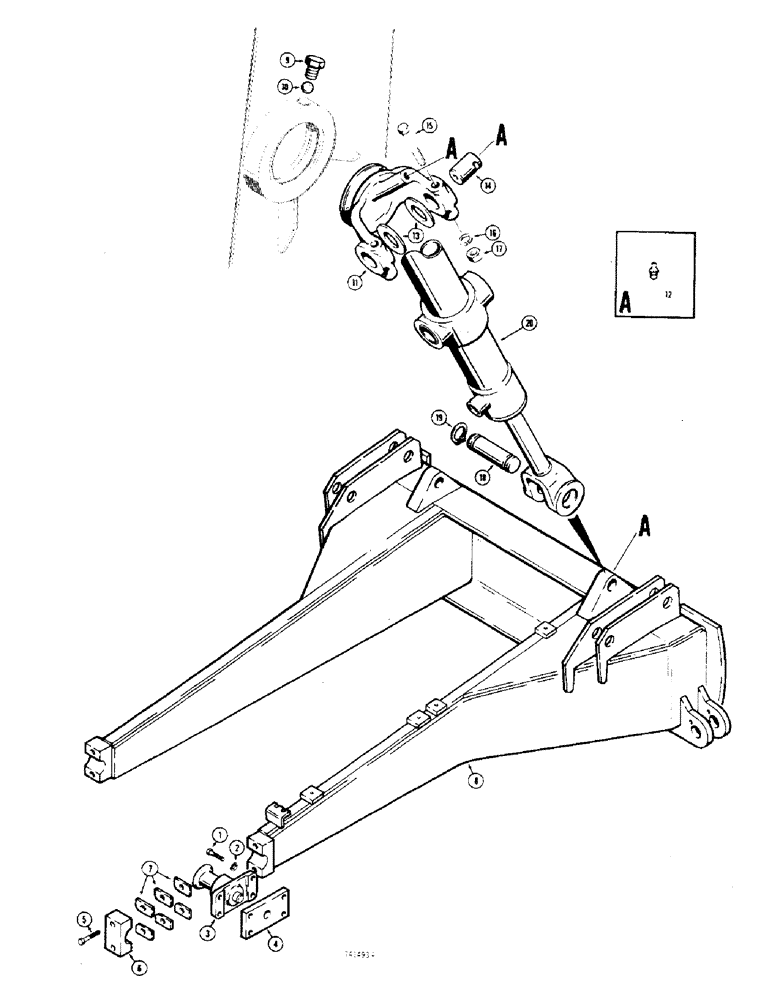

Запчасти Case 475 (248) - DOZER C-FRAME AND LIFT PARTS (86) - DOZER

1

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

8шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

D50535

TRUNNION

- C-frame

2шт.

4

R31059

SPACER - trunnion

2шт.

5

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

6

D40376

CAP

BRACKET - end, C-frame

2шт.

7

D34794

SHIM,1/32" Thk

(0.78 mm) 1/32" Thk

1шт.

8

R33236

C-FRAME - dozer

1шт.

9

D28481

PLUG

- special

2шт.

10

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

38шт.

11

D36155

TRUNNION

- lift cylinder

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

8шт.

13

D24516

WASHER

THRUST WASHER - trunnion pin

4шт.

14

D24508

PIN,31.74mm OD x 50.8mm L

- trunnion

4шт.

15

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

D46467

PIN

- lift cylinder mounting

2шт.

19

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

20

REF

INSTRUCTION

CYLINDER - lift, see figures 218 and 220

2шт.
