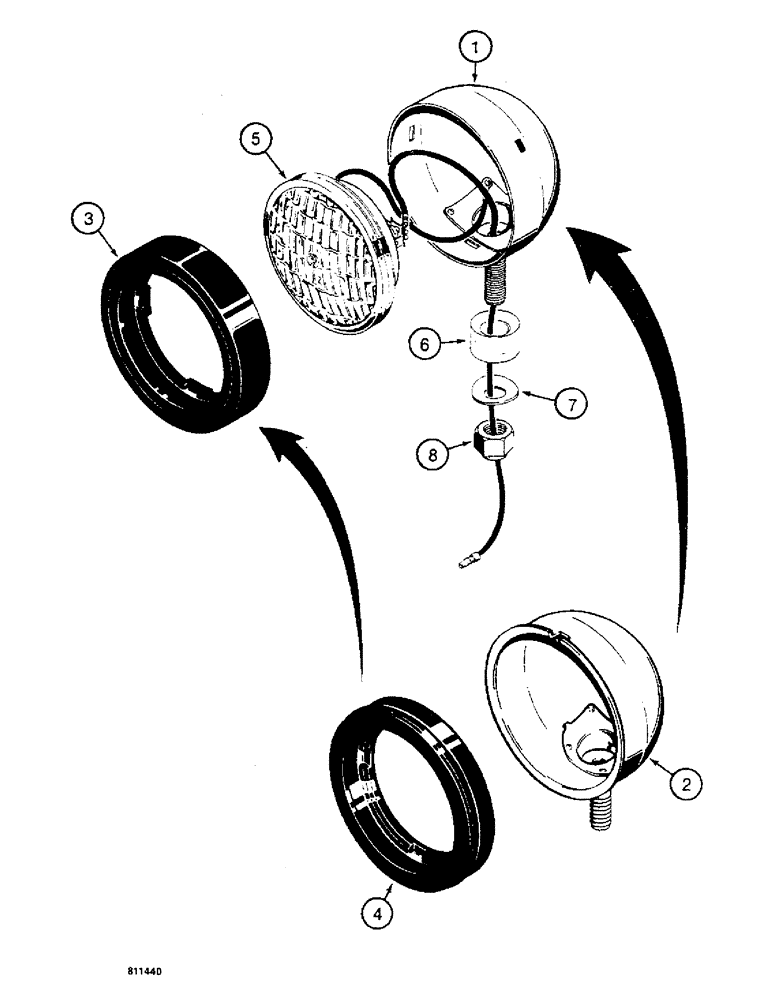

Запчасти Case 475 (102) - D34934 LAMP ASSEMBLY (55) - ELECTRICAL SYSTEMS

D34934

LAMP

ASSEMBLY - rear lamp and head lamps, Includes: Refs. 1-7

3шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts ref. 3 only

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts ref. 4 only

1шт.

3

A25213

RETAINER

- bulb, rubber, locks to shell with 3 rubber tabs, if used

1шт.

4

N6160

LAMP

RETAINER - bulb, rubber, locks over shell flange, if used

1шт.

5

A11280

LAMP

BULB - sealed unit, no. 4411

1шт.

6

D37048

BUSHING

- pivot

1шт.

7

D37049

WASHER

- special

1шт.

8

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2" - 13 NF, services a lock washer and nut used in production

1шт.
