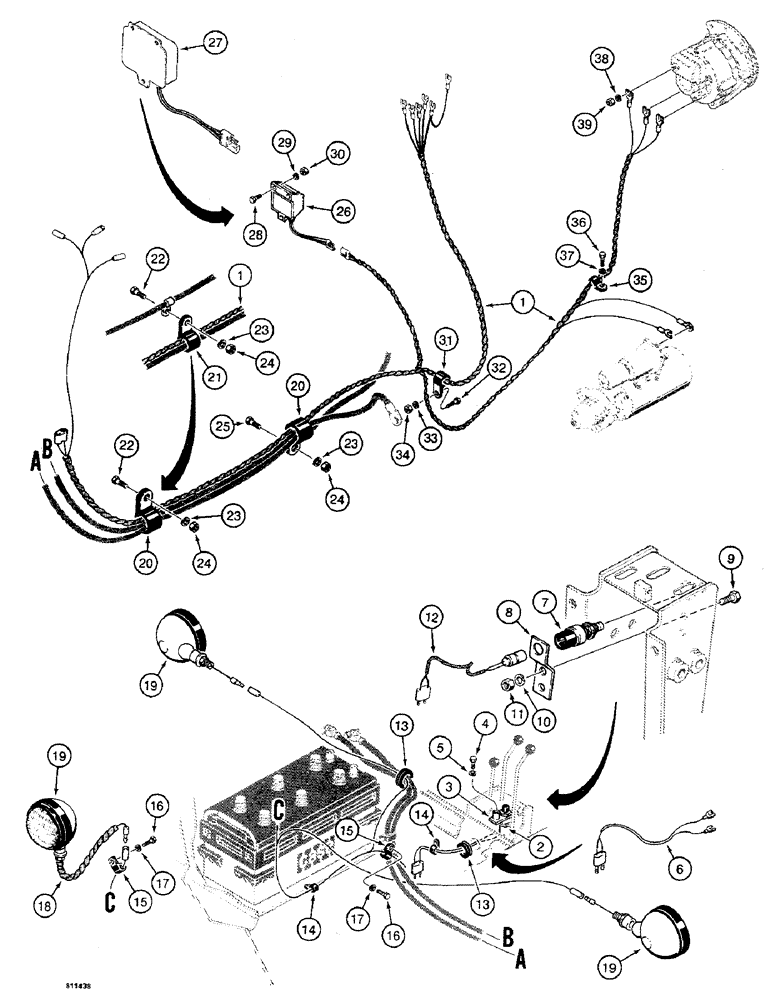

Запчасти Case 475 (098) - WIRING HARNESS TO ALTERNATOR AND LAMPS (55) - ELECTRICAL SYSTEMS

1

R24820

HARNESS

- main wiring

1шт.

2

D34924

SWITCH

- starter, vertical, no longer used, order R40432 switch, ref. 7, and R40995 wire, ref. 12

1шт.

3

D34923

BRACKET

- D34924 starter switch only

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

D51991

CABLE PULLING GRIP

WIRE - D34924 starter switch, spade and plug in connections, if used

1шт.

7

R40432

SWITCH

- starter, horizontal

1шт.

8

R31304

BRACKET

- R40432 starter switch

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

25-1010

NUT,5/8"-11, G5

- hex, 5/16" - 18 NC

2шт.

12

R40995

ELECTRICAL WIRE

WIRE - R40432 starter switch, plug in connections, if used

1шт.

13

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- wiring harness

2шт.

14

49832

CLAMP

- wire, starter switch and tail lamp, uses control tower mounting hardware and seat bracket hardware

2шт.

15

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, tail lamp

2шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex head, 3/8" - 24 NF x 1/2"

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

D34933

LOOM

CONDUIT - wire, tail lamp, may be cut from D42919 bulk

1шт.

See below for D42919 CONDUIT

1шт.

19

D34934

LAMP

ASSEMBLY - tail lamp and head lamps, parts list figure 102

3шт.

20

D43364

CLAMP

- wiring harness and battery cables, if used

1-2шт.

21

51200320

CLAMP

- wiring harness and positive battery cable, if used

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

L11351

REGULATOR

VOLTAGE REGULATOR - 12 Volt, no longer available, order R41058 voltage regulator

1шт.

27

R41058

REGULATOR

VOLTAGE REGULATOR - 12 Volt

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

30

25-224

SQUARE NUT,Sq, 1/4"-20

- hex, 1/4" - 20 NC

3шт.

31

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- wiring harness

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

35

49838

CLAMP

- harness

1шт.

36

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

3шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC

3шт.

D42919

LOOM

CONDUIT - bulk, 14" (356 MM) long

1шт.
