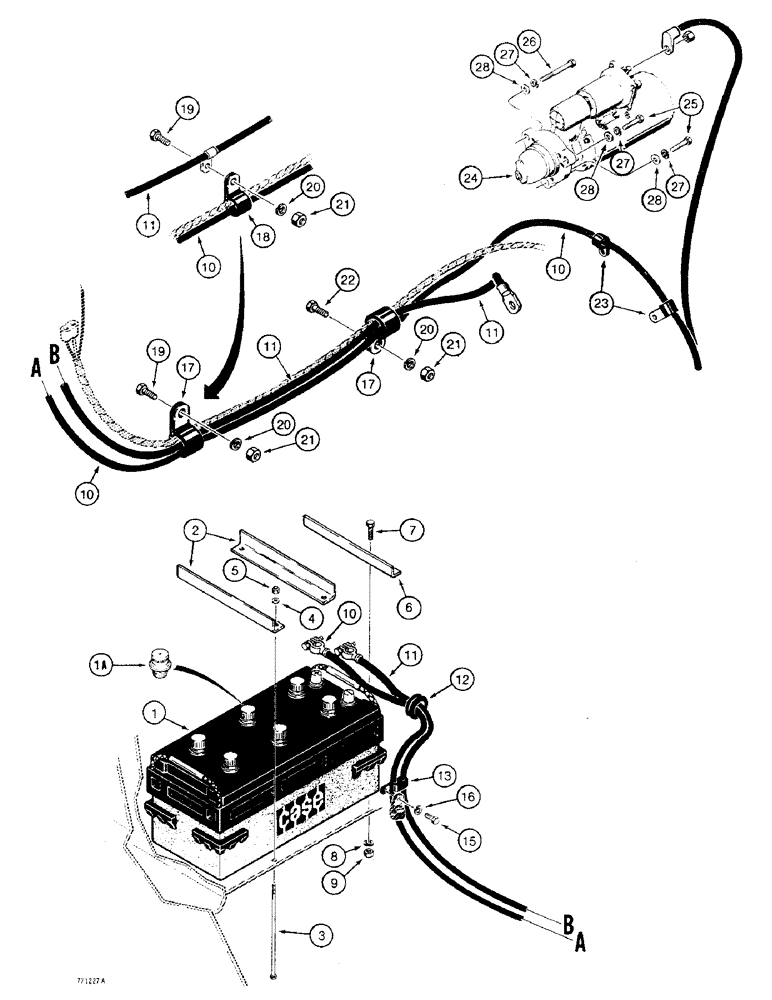

Запчасти Case 475 (096) - BATTERY AND CABLES TO STARTER (55) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

- 12 volt, service replacement, Includes: Refs. 1A

1шт.

1a

R30819

CYLINDER END CAP

CAP - battery, nonspill

6шт.

2

R39653

RETAINER

BRACKET - battery retaining, upper

2шт.

3

13-5160

BOLT,Hex, 5/16" - 18 x 10", Gr 5

- hex head, 5/16" - 18 NC x 10"

4шт.

4

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

5

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

6

D44203

RETAINER

BRACKET - battery retaining, lower

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

R24358

CABLE PULLING GRIP

CABLE - battery positive

1шт.

11

R40380

CABLE

- battery, negative, includes clamp

1шт.

12

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- battery cables

1шт.

13

D34980

CLAMP

- battery cables, at battery

1шт.

15

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex head, 3/8" - 24 NF x 1/2"

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

D43364

CLAMP

- battery cables and wiring harness, if used

1-2шт.

18

51200320

CLAMP

- positive battery cable and wiring harness, if used

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

49838

CLAMP

- positive battery cable, uses flywheel housing mounting hardware

2шт.

24

REF

INSTRUCTION

STARTER - engine, see figures 72 - 86 for the correct assembly and components

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

26

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

27

92-8

LOCK WASHER,1/2"

3шт.

28

R24323

WASHER

- special

3шт.
