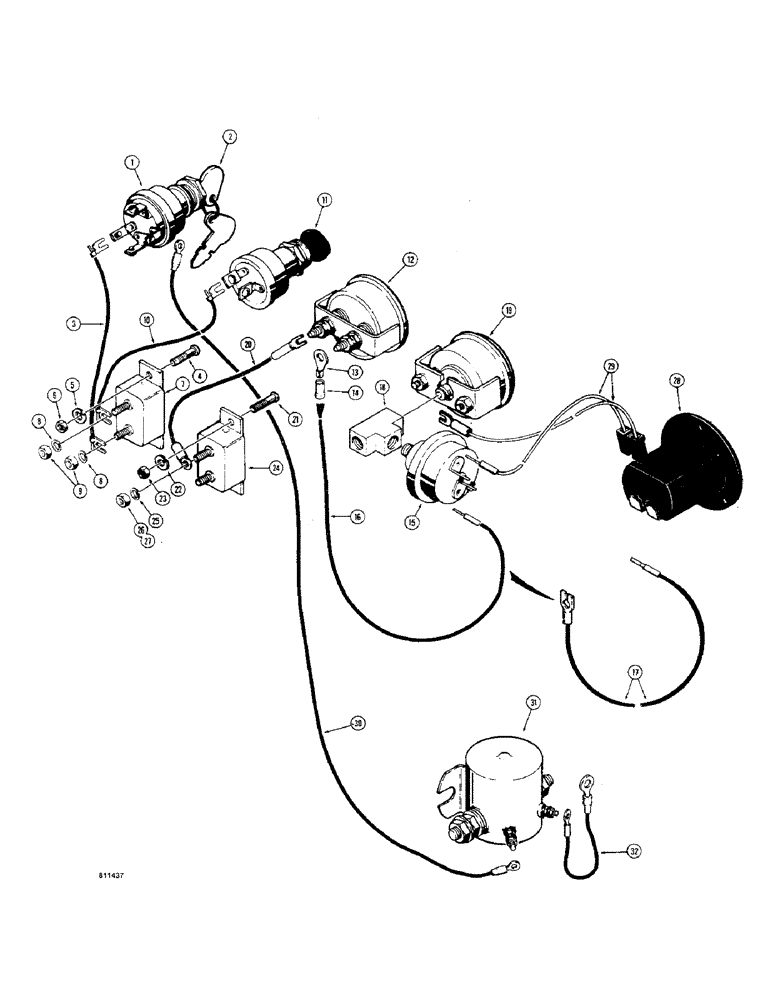

Запчасти Case 475 (094) - INSTRUMENT PANEL WIRING (55) - ELECTRICAL SYSTEMS

D35092

SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

2

R30074

SET

KEY - set of two

1шт.

3

A11768

ELECTRICAL WIRE

WIRE - jumper, ignition switch to circuit breaker

1шт.

4

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head slotted, no. 6 - 32 NC x 3/8", plated

2шт.

5

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

6

129-15

NUT,#6-32

2шт.

7

D37203

BREAKER

CIRCUIT BREAKER - 15 amperes, 12 volt, Includes: Refs. 8, 9

1шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

9

129-37

NUT,#10-32

2шт.

10

A11768

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to lamp switch

1шт.

11

D35065

SWITCH

- lamp

1шт.

12

R18748

AMMETER

GAUGE - ammeter

1шт.

13

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - electrical, oil pressure switch wire, if used

1шт.

14

223-83

SLEEVE

- terminal, if used

1шт.

15

D28798

SWITCH

- oil pressure, includes wire, wire not used in production, Includes: Refs. 16

1шт.

16

D28797

ELECTRICAL WIRE

WIRE - oil pressure switch, if used, cut to 5" (127 MM) and add 223-50 terminal, ref. 13, and 223-83 sleeve, Ref. 14

1шт.

17

R33634

WIRE - oil pressure switch to ammeter, used in production, may be used for service, or use refs. 13, 14, and 16

1шт.

18

217-10

TEE,1/8" - 27 NPTF Fem

- female, 1/8" NPT

1шт.

19

D22853

GAUGE

- engine oil pressure

1шт.

20

G44017

ELECTRICAL WIRE

WIRE - ammeter to circuit breaker

1шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head slotted, no. 6 - 32 NC x 3/8", plated

2шт.

22

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

23

129-15

NUT,#6-32

2шт.

24

R45475

BREAKER

CIRCUIT BREAKER - 40 amperes, 24 volt, Includes: Refs. 25-27

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

26

129-37

NUT,#10-32

If used #10-32

2шт.

27

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, no. 10 - 32 NF, plated, if used

2шт.

28

REF

INSTRUCTION

HOURMETER - engine, for correct hourmeter and mounting hardware, see figure 90

1шт.

29

D39285

ELECTRICAL WIRE

WIRE - hourmeter to oil pressure switch and oil pressure gauge

2шт.

30

G13087

CABLE PULLING GRIP

WIRE - ignition switch to solenoid, if used

1шт.

31

A57069

SOLENOID

- engine preheater, if used

1шт.

32

D31548

ELECTRICAL WIRE

WIRE - ground, solenoid, if used

1шт.
