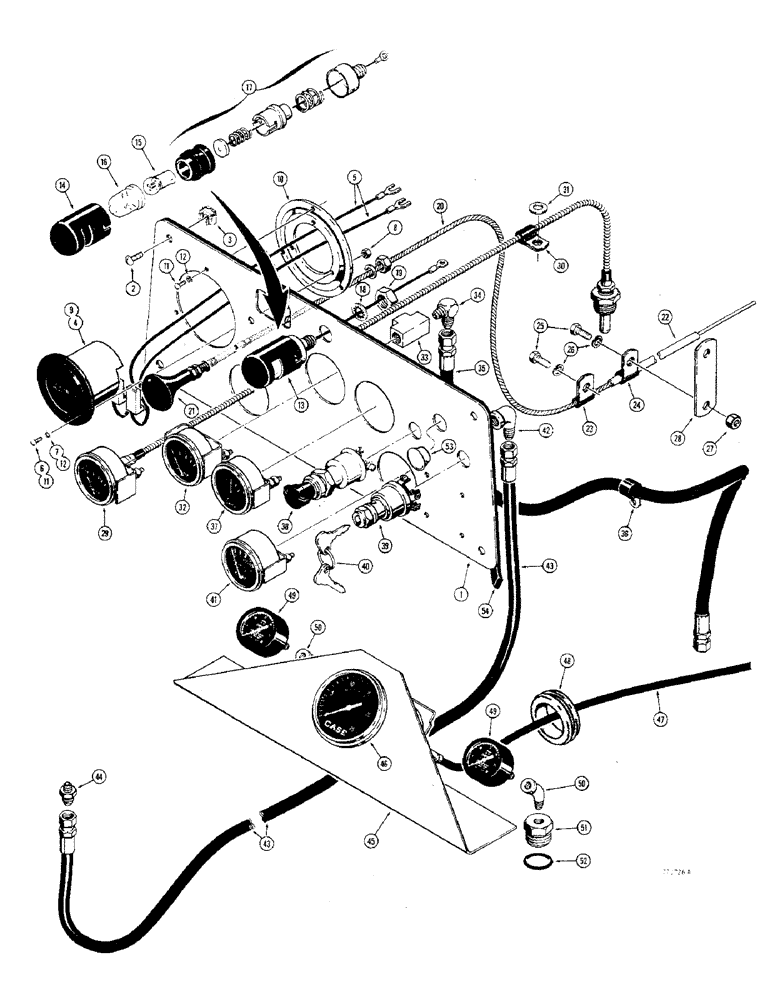

Запчасти Case 475 (090) - INSTRUMENT PANEL AND GAUGES (55) - ELECTRICAL SYSTEMS

1

R36946

PANEL

INSTRUMENT PANEL - gauges

1шт.

2

174-212

SCREW,Sl Rnd Hd, 5/16" - 24 x 3/4"

- round head slotted, 5/16" - 24 NF x 7/8"

4шт.

3

131-139

SPRING NUT,Ret, 5/16"-24

4шт.

D39286

GAUGE

HOURMETER ASSEMBLY - no longer available, order R24646 hourmeter, ref. 9, Includes: Refs. 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

HOURMETER - engine

1шт.

5

D39285

ELECTRICAL WIRE

WIRE - hourmeter

2шт.

D39284

KIT

- hardware, Includes: Refs. 6-8

1шт.

6

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head slotted, no. 6 - 32 NC x 1/2"

3шт.

7

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

8

129-6

NUT,#8-32

- hex, no. 6-32 NC

3шт.

9

R24646

ELECTRICAL GAUGE

HOURMETER - engine

1шт.

10

D35079

DAMPER

INSULATOR - vibration, hourmeter

1шт.

11

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head slotted, no. 6 - 32 NC x 1/2", plated

3-6шт.

12

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3-6шт.

13

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Refs. 14-17

1шт.

14

R22237

COVER

- lamp

1шт.

15

71421

BULB,R5W, 12V, 5W

- lamp, no. 67

1шт.

16

R22232

SIGHTGLASS

LENS - lamp

1шт.

17

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - lamp

1шт.

18

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

19

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, jam, 5/8" - 18 NF

1шт.

20

R30305

CABLE

- fuel shutoff, no longer available, order R42393 cable assembly

1шт.

20

R42393

CABLE

ASSEMBLY - fuel shutoff, Includes: Ref. 21

1шт.

21

L33717

KNOB

- shutoff cable

1шт.

22

F19416

TUBE

SPACER - R30305 fuel shutoff cable only

1шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- fuel shutoff cable, used with F19416 spacer

1шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- fuel shutoff cable, used without F19416 spacer

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

28

R39308

PLATE

- clamp mounting, fuel shutoff cable, if used

1шт.

29

11284

ELECTRICAL GAUGE

GAUGE - engine temperature, with 28-1/4" (718 MM) long cable, no longer available, order 10838 gauge

1шт.

29

10838

ELECTRICAL GAUGE

GAUGE - engine temperature, with 34-1/4" (870 MM) long cable

1шт.

30

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cable, engine temperature gauge

1шт.

31

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

32

D22853

GAUGE

- engine oil pressure

1шт.

33

217-10

TEE,1/8" - 27 NPTF Fem

- engine oil pressure gauge, 1/8" NPT

1шт.

34

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/8" NPT

1шт.

35

D95115

HOSE

- engine oil pressure, 41-1/2" (1054 MM) long

1шт.

36

49838

CLAMP

- hose, engine oil pressure

1шт.

37

R18748

AMMETER

GAUGE - ammeter

1шт.

38

D35065

SWITCH

- lamp, instrument panel

1шт.

D35092

SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Refs. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

40

R30074

SET

KEY - set of two

1шт.

41

D29570

GAUGE

- transmission oil pressure

1шт.

42

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

STREET ELBOW - 90 degree, female

1шт.

43

R24455

HOSE ASSY.

HOSE - transmission oil pressure, 70-1/2" (1791 MM) long

1шт.

44

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male

1шт.

45

R25582

BRACKET

- tachometer mounting

1шт.

46

D38122

TACHOMETER

- engine RPM

1шт.

47

A59691

CABLE

- tachometer

1шт.

48

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- tachometer cable

1шт.

49

R29792

GAUGE ASSY.

GAUGE - filter oil pressure

2шт.

REF. 49 - THERE WAS A STYLING CHANGE ON THIS GAUGE,IT DOESN"T LOOK LIKE WHAT IS SHOWN IN PARTS CATALOG.

1шт.

50

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET ELBOW - 45 degree, 1/8" NPT

2шт.

51

R26251

ADAPTER - special, Includes: Ref. 52

2шт.

53

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16", if used

1шт.

54

R26191

TRIM - instrument panel, if used

1шт.

52

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.
