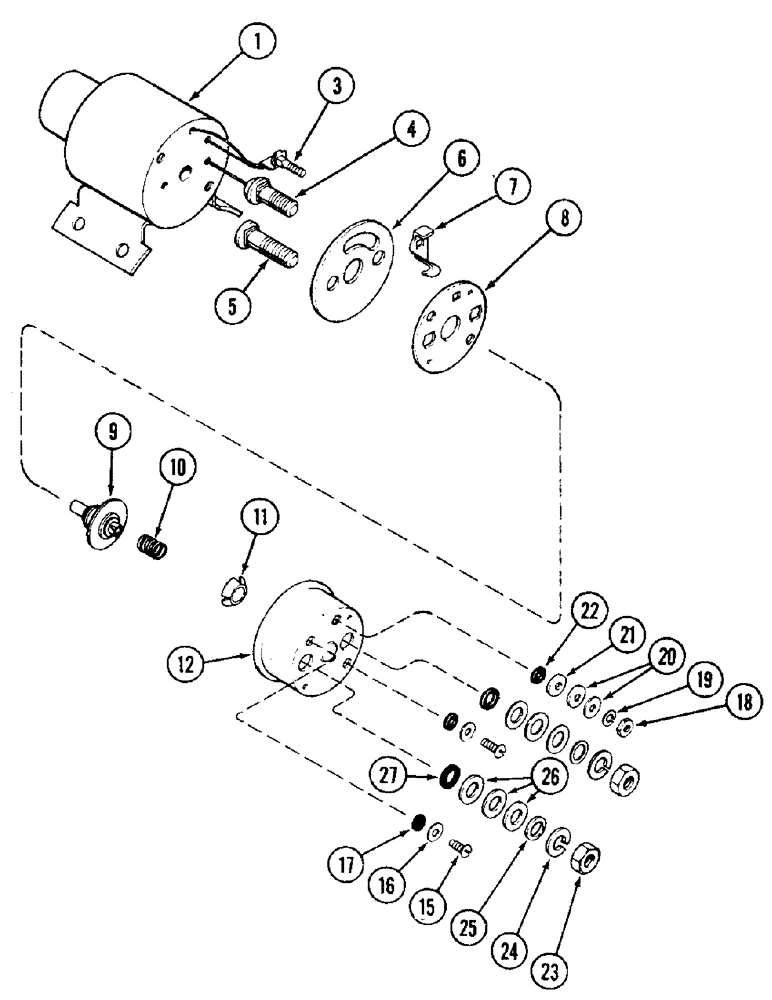

Запчасти Case 475 (088) - STARTER SOLENOIDS (55) - ELECTRICAL SYSTEMS

A43846

SOLENOID

ASSEMBLY - (Delco-Remy no. 1115528) (Order A44817)

1шт.

A44817

SOLENOID

ASSEMBLY - (Delco-Remy no. 1115514), Includes: Refs. 1-27

1шт.

1

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - with coil

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

6

A42377

GASKET

- solenoid cover

1шт.

7

A42384

CLIP

- solenoid terminal

1шт.

8

A42386

INSULATOR

- solenoid cover

1шт.

9

A42385

CONTACT

- solenoid

1шт.

10

A42059

SPRING

- contact return

1шт.

11

A42391

INSULATOR

- solenoid cover cup

1шт.

12

A42388

COVER

- solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

- cover (#10 NF slotted head)

2шт.

16

A42378

WASHER

- terminal stud

2шт.

17

A42392

WASHER

- terminal stud (Rubber)

2шт.

18

129-37

NUT,#10-32

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

- terminal stud

1шт.

21

A42390

WASHER

- terminal stud

1шт.

22

A42392

WASHER

- terminal stud (Rubber)

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

- terminal stud

2шт.

26

A42379

WASHER

- terminal stud

6шт.

27

A42389

WASHER

- terminal stud

2шт.
