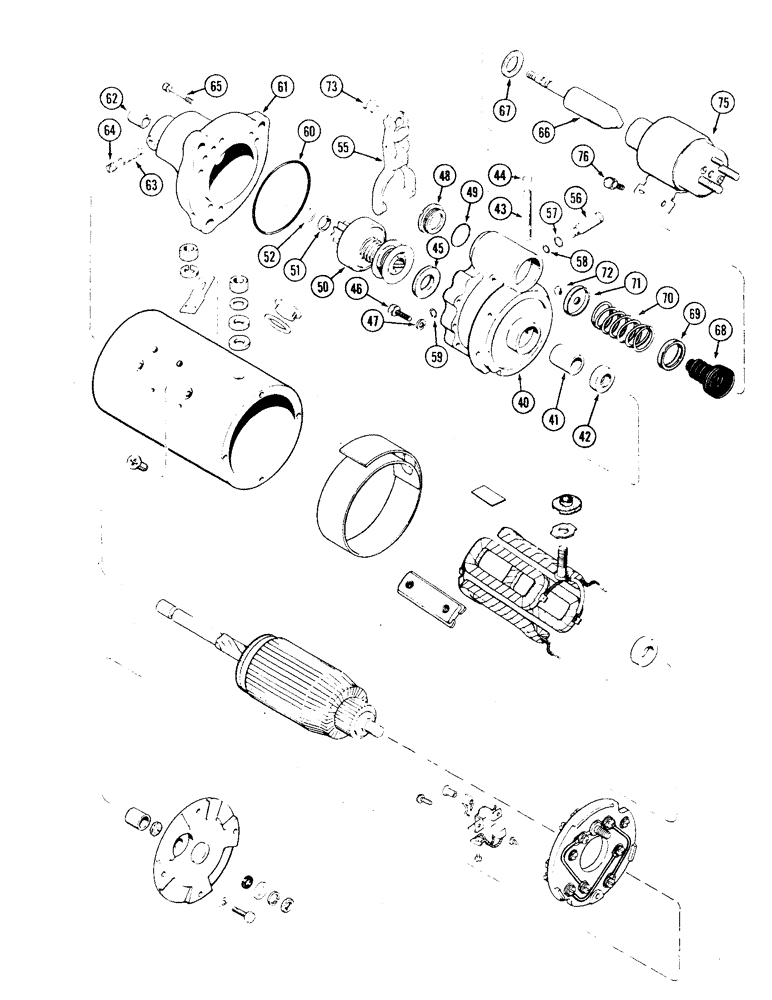

Запчасти Case 475 (086) - A149056 STARTER, DELCO-REMY NO. 1113399 (55) - ELECTRICAL SYSTEMS

A149056

STARTING MOTOR

STARTER ASSEMBLY - (Continued from figure 84), Includes: Refs. 40-76

1шт.

40

A43859

HOUSING

ASSEMBLY - shift lever, Includes: Refs. 41-45

1шт.

41

A40944

BUSHING

- housing

1шт.

42

A25407

OIL SEAL

- oil

1шт.

43

A41417

WICK

- oil

1шт.

44

221-1849

PLUG

- 1/8" PT hex socket head

1шт.

45

R15043

WASHER

- brake

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Lever housing attaching Hex, 1/4"-28 x 1", G5

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

- inspection, lever housing

1шт.

49

A41924

GASKET

- plug

1шт.

50

A47178

DRIVE

ASSEMBLY - clutch

1шт.

51

R15049

COLLAR

- pinion stop

1шт.

52

R15048

RING

- retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT LEVER ASSEMBLY

1шт.

56

A43851

SHAFT

- shift lever

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- shifter shaft

1шт.

58

A47259

O-RING,0.244" ID x 0.391" OD

- shifter shaft

1шт.

59

G46146

SNAP RING,#37, Ext

RING, Snap, , shift lever attaching pin #37, Ext

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

- lever housing to drive housing

1шт.

61

A47716

HOUSING

ASSEMBLY - drive (Replaces A43858), Includes: Refs. 62-64

1шт.

62

A40868

BUSHING

- housing

1шт.

63

R15023

WICK

- oil

1шт.

64

221-1849

PLUG

- 1/8" PT hex socket head

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - 1/4 x 7/8" NF socket head

6шт.

66

A43857

PLUNGER

ASSEMBLY - starter

1шт.

67

A41922

WASHER

- plunger

1шт.

68

A42308

BOOT

- plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, with 1-3/16" (30.2 MM) hole

1шт.

70

A41242

SPRING

- shift lever, 2-3/4" (69.9 MM) free length

1шт.

71

A43419

SEAT

RETAINER - spring, with 3/8" (9.5 MM) hole

1шт.

72

G46146

SNAP RING,#37, Ext

RING, Snap, , plunger spring retainer #37, Ext

1шт.

73

A43856

NUT

- plunger rod guide adjusting

1шт.

75

A44817

SOLENOID

ASSEMBLY - starter (Replaces A43846) (See figure 88)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

BOLT - 1/4 x 3/8" NC hex

4шт.
