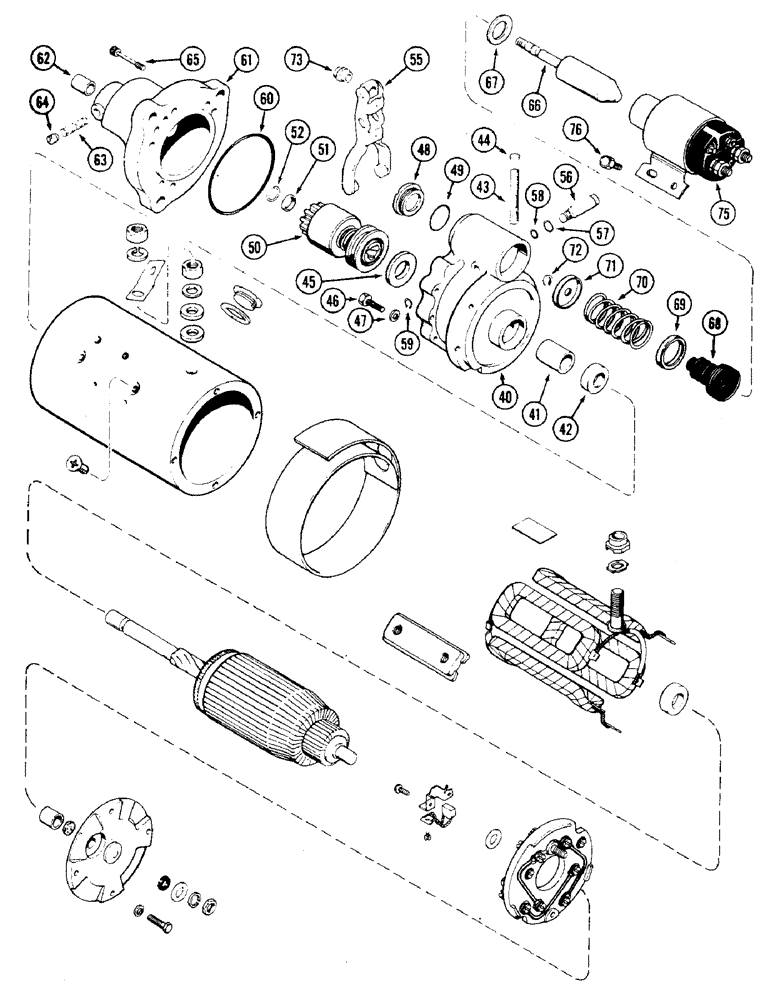

Запчасти Case 475 (082) - A145555 STARTER, DELCO-REMY NO. 1113478 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A145555
STARTING MOTOR
STARTER ASSEMBLY - (Continued from figure 80), Includes: Refs. 40-76
1шт.
40
A43859
HOUSING
ASSEMBLY - shift lever, Includes: Refs. 41-45
1шт.
41
A40944
BUSHING
- housing
1шт.
42
A25407
OIL SEAL
- oil
1шт.
43
R15023
WICK
- oil
1шт.
44
221-1849
PLUG
- 1/8" PT hex socket head
1шт.
45
R15043
WASHER
- brake
1шт.
46
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
Lever housing attaching Hex, 1/4"-28 x 1", G5
5шт.
47
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
48
R21587
PLUG
- inspection, lever housing
1шт.
49
A41924
GASKET
- plug
1шт.
50
A47106
DRIVE
ASSEMBLY - clutch (Order A47178 from figure 86)
1шт.
51
R15049
COLLAR
- pinion stop
1шт.
52
R15048
RING
- retainer, pinion stop
1шт.
55
A43852
LEVER
SHIFT LEVER ASSEMBLY - starter
1шт.
56
A43851
SHAFT
- shift lever
1шт.
57
A47258
O-RING,0.369" ID x 0.515" OD
- shifter shaft
1шт.
58
A47259
O-RING,0.244" ID x 0.391" OD
- shifter shaft
1шт.
59
G46146
SNAP RING,#37, Ext
RING, Snap, , shift lever attaching pin #37, Ext
1шт.
60
A43854
O-RING,3.237" ID x 0.106" THK
- lever housing to drive housing
1шт.
61
A47716
HOUSING
ASSEMBLY - drive (Replaces A43858), Includes: Refs. 62-64
1шт.
62
A40868
BUSHING
- housing
1шт.
63
R15023
WICK
- oil
1шт.
64
221-1849
PLUG
- 1/8" PT hex socket head
1шт.
65
A47141
SCREW,Hex, 1/4" - 28 x 7/8"
- 1/4 x 7/8" NF socket head cap
6шт.
66
A43857
PLUNGER
ASSEMBLY - starter
1шт.
67
A41922
WASHER
- plunger
1шт.
68
A42308
BOOT
- plunger
1шт.
69
A43380
BACK-UP RING
RETAINER - spring, with 1-3/16" (30.2 MM) hole
1шт.
70
A41242
SPRING
- shift lever, 2-3/4" (69.9 MM) free length
1шт.
71
A43419
SEAT
RETAINER - spring, with 3/8" (9.5 MM) hole
1шт.
72
G46146
SNAP RING,#37, Ext
RING, Snap, , plunger spring retainer #37, Ext
1шт.
73
A43856
NUT
- plunger rod guide adjusting
1шт.
75
A44817
SOLENOID
ASSEMBLY - starter (See figure 88)
1шт.
76
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- 1/4 x 3/8" NC hex
4шт.
Выбрано товаров: 35
