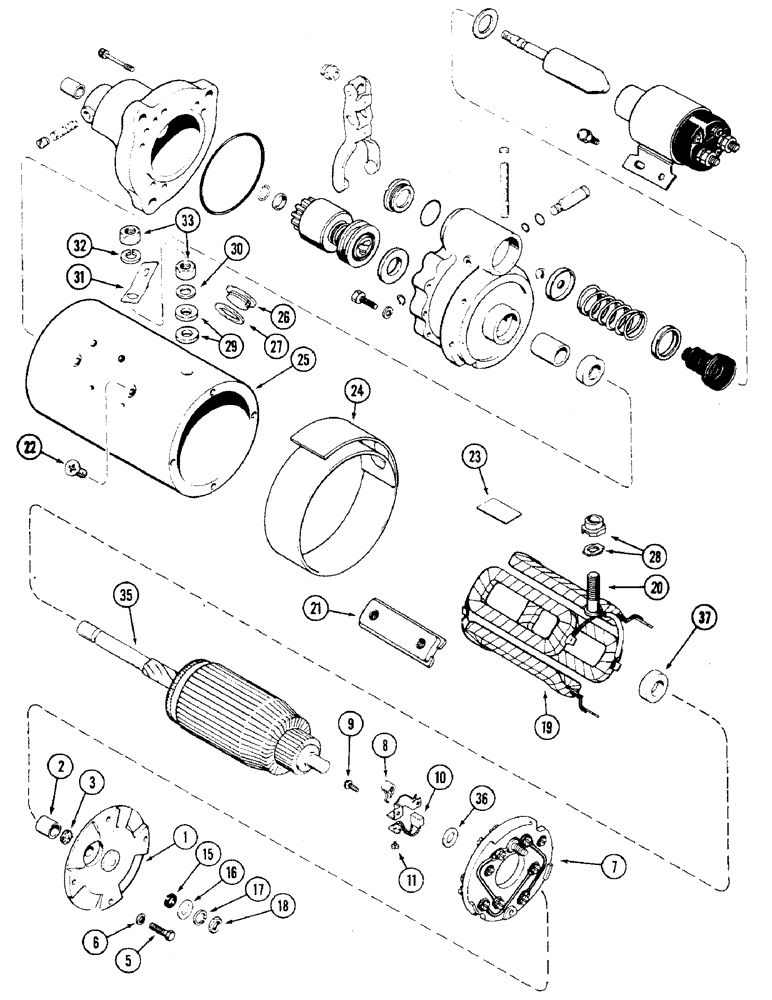

Запчасти Case 475 (080) - A145555 STARTER, DELCO-REMY NO. 1113478 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A145555
STARTING MOTOR
STARTER ASSEMBLY - (Delco #1113478) (Order A149056 from figure 84), Includes: Refs. 1-37
1шт.
1
A45365
FRAME
ASSEMBLY - commutator end, Includes: Refs. 2, 3
1шт.
2
A45153
BRUSH, COMMUTATOR
BUSHING - frame
1шт.
3
A47133
WICK
- oil
1шт.
5
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
4шт.
6
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
7
A43850
PLATE
BRUSH PLATE ASSEMBLY - starter, Includes: Ref. 8
1шт.
8
A42333
SPRING
- brush
4шт.
9
A43847
SCREW,3/8" - 32 x 1/2"
- brush attaching with washer
1шт.
10
A40891
BRUSH, COMMUTATOR
BRUSH ASSEMBLY - starter
4шт.
11
174-211
SCREW,Sl Rnd Hd, #8 - 32 x 5/16"
- brush attaching (#8 x 5/16" round head)
4шт.
15
A42085
BUSHING
- commutator end terminal
1шт.
16
R15013
WASHER
- terminal
1шт.
17
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
18
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
19
A42332
COIL
FIELD COIL ASSEMBLY - starter (4 coils), Includes: Ref. 20
1шт.
20
A40896
STUD
- terminal, (1/2" NC x 2-1/8" special)
1шт.
21
R15115
SHOE
- pole
4шт.
22
A42127
SCREW,3/8" - 24 x 0.20"
- pole shoe, 3/8 x 3/16" NF Phillips head
8шт.
23
A42327
INSULATOR
INSULATION - field coil
2шт.
24
A42342
INSULATOR
- field coil
1шт.
25
NSS
NOT SOLD SEPARAT
FRAME - field
1шт.
26
R21587
PLUG
- inspection, commutator end
1шт.
27
A41924
GASKET
- plug
1шт.
28
A41925
BUSHING
PACKAGE - field terminal stud
1шт.
29
D30005
INSULATOR
WASHER - insulator, terminal stud
2шт.
30
D30006
WASHER
- terminal stud
1шт.
31
A43863
ROD, CONNECTING
CONNECTOR - solenoid
1шт.
32
192-113
LOCK WASHER,1/2"
WASHER - lock 1/2"
1шт.
33
129-145
JAM NUT,Jam, 1/2"-13, G5
2шт.
35
A43855
ARMATURE
- starter
1шт.
36
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
- armature spacer, commutator end
1шт.
37
A43853
BUSHING
SPACER - armature, drive end
1шт.
Выбрано товаров: 33
