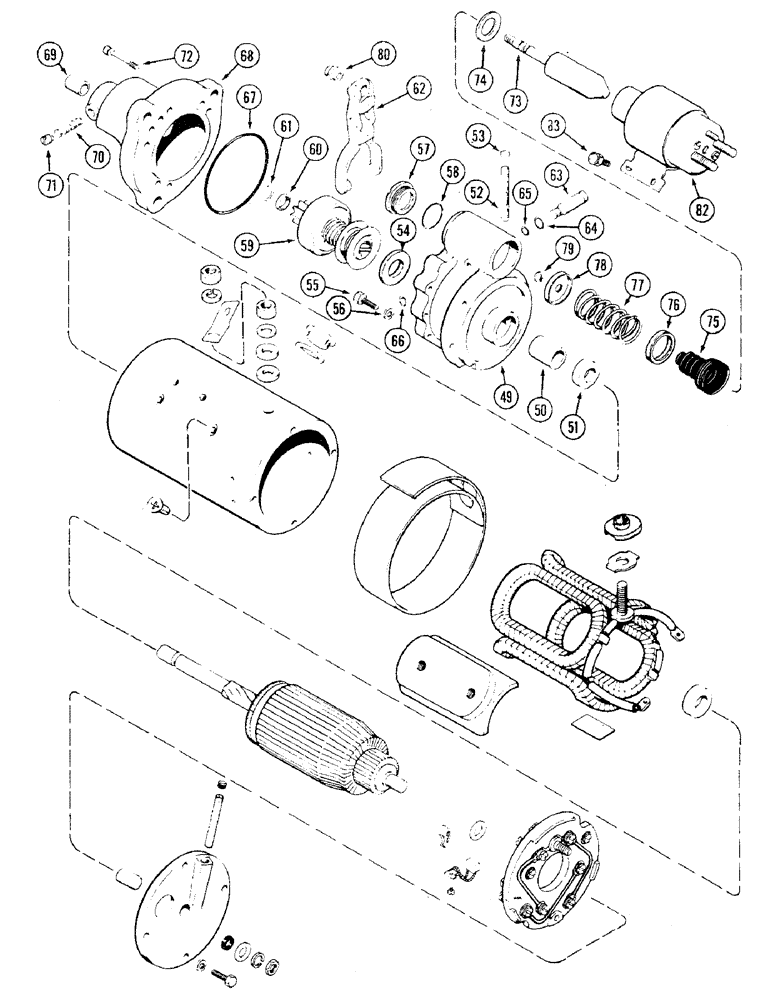

Запчасти Case 475 (078) - A64907 STARTER, DELCO-REMY NO. 1113399 (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A64907
ELECTRIC MOTOR
STARTER ASSEMBLY - (Continued from figure 76), Includes: Refs. 49-83
1шт.
104212A2R
REMAN-STARTER
Remanufactured Starter
1шт.
104212A1C
CORE-STARTER
Return Part Number
1шт.
49
A43859
HOUSING
HOUSING ASSEMBLY - shift lever, Includes: Refs. 50-54
1шт.
50
A40944
BUSHING
BUSHING - housing
1шт.
51
A25407
OIL SEAL
SEAL - oil
1шт.
52
A41417
WICK
WICK - oil
1шт.
53
221-1849
PLUG
PLUG - oil wick hole
1шт.
54
R15043
WASHER
WASHER - brake
1шт.
55
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT, , Housing Hex, 1/4"-28 x 1", G5
5шт.
56
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
57
R21587
PLUG
PLUG - housing
1шт.
58
A41924
GASKET
GASKET - housing plug
1шт.
59
A47178
DRIVE
DRIVE ASSEMBLY (Replaces A42331)
1шт.
60
R15049
COLLAR
COLLAR - pinion stop
1шт.
61
R15048
RING
RING - retainer, pinion stop collar
1шт.
62
A43852
LEVER
LEVER - shift
1шт.
63
A43851
SHAFT
SHAFT - shift lever pivot
1шт.
64
A47258
O-RING,0.369" ID x 0.515" OD
O-RING - pivot shaft
1шт.
65
A47259
O-RING,0.244" ID x 0.391" OD
O-RING - pivot shaft
1шт.
66
G46146
SNAP RING,#37, Ext
RING, Snap, , pivot lever retainer #37, Ext
1шт.
67
A43854
O-RING,3.237" ID x 0.106" THK
GASKET - lever housing to drive end housing
1шт.
68
A47716
HOUSING
HOUSING ASSEMBLY - drive end (Replaces A43858), Includes: Refs. 69-71
1шт.
69
A40868
BUSHING
BUSHING - housing
1шт.
70
R15023
WICK
WICK - oil
1шт.
71
221-1041
PLUG
PLUG - oil wick hole
1шт.
72
62-414
HEX SOC SCREW,1/4"-28 x 7/8"
SCREW ASSEMBLY - lever housing to drive end housing
4шт.
73
A43857
PLUNGER
PLUNGER - solenoid
1шт.
74
A41922
WASHER
WASHER - retaining
1шт.
75
A42308
BOOT
BOOT - solenoid and plunger
1шт.
76
A43380
BACK-UP RING
RETAINER - spring, with 1-3/16" (30.2 MM) hole
1шт.
77
A41242
SPRING
SPRING - plunger return
1шт.
78
A43419
SEAT
RETAINER - spring, with 7/16" (11.1 MM) hole
1шт.
79
G46146
SNAP RING,#37, Ext
RING, Snap, , plunger retaining #37, Ext
1шт.
80
A43856
NUT
NUT - retaining, plunger to shift lever
1шт.
82
A44817
SOLENOID
SOLENOID ASSEMBLY - (See figure 88) (Replaces A43846)
1шт.
83
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
SCREW - solenoid mounting (1/4 x 3/8" NC hex)
4шт.
Выбрано товаров: 37
