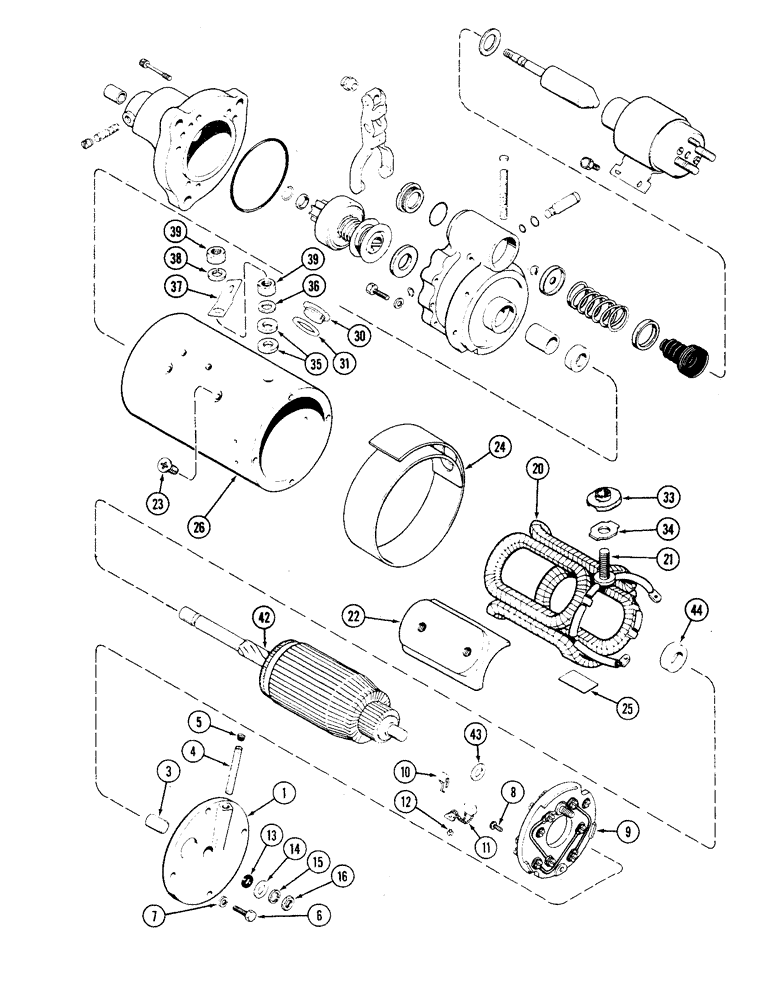

Запчасти Case 475 (076) - A64907 STARTER, DELCO-REMY NO. 1113399 (55) - ELECTRICAL SYSTEMS

A64907

ELECTRIC MOTOR

STARTER ASSEMBLY - (Delco-Remy #1113399) (Order A149056 from figure 84), Includes: Refs. 1-44

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

1

A45365

FRAME

FRAME ASSEMBLY - commutator end (Replaces A48849), Includes: Refs. 3-5

1шт.

3

A42323

BUSHING

BUSHING - frame

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil wick hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Commutator end Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A43847

SCREW,3/8" - 32 x 1/2"

SCREW - brush plate attaching

1шт.

9

A43850

PLATE

PLATE ASSEMBLY - brush (Less brushes), Includes: Ref. 10

1шт.

10

A42333

SPRING

SPRING - brush tension

4шт.

11

A40891

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY

4шт.

12

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - brush lead (#8 x 5/16 NC round head)

4шт.

13

A42085

BUSHING

WASHER - brush plate terminal insulating (Rubber)

1шт.

14

R15013

WASHER

WASHER - terminal

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Terminal 3/8"-16, G5

2шт.

20

A42332

COIL

COIL ASSEMBLY - field, Includes: Ref. 21

1шт.

21

A40896

STUD

STUD - starter terminal

1шт.

22

R15115

SHOE

SHOE - pole

4шт.

23

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes

8шт.

24

A43848

INSULATOR

INSULATION - field coil

1шт.

25

A42327

INSULATOR

INSULATION - coil junction

2шт.

26

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

30

R21587

PLUG

PLUG - brush inspection (In frame)

1шт.

31

A41924

GASKET

GASKET - inspection plug

1шт.

A41925

BUSHING

BUSHING ASSEMBLY - field coil stud insulation, Includes: Refs. 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

34

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

35

D30005

INSULATOR

INSULATOR - field coil stud (Outer)

2шт.

36

D30006

WASHER

WASHER - terminal stud

1шт.

37

A43863

ROD, CONNECTING

CONNECTOR - field, Serial Range: studs-solenoid

1шт.

38

129-113

SPARE PART WASHER - 1/2" lock

1шт.

39

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

42

A43855

ARMATURE

ARMATURE - starter

1шт.

43

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - armature (Commutator end)

1шт.

44

A43853

BUSHING

SPACER - armature (Shift lever housing)

1шт.
