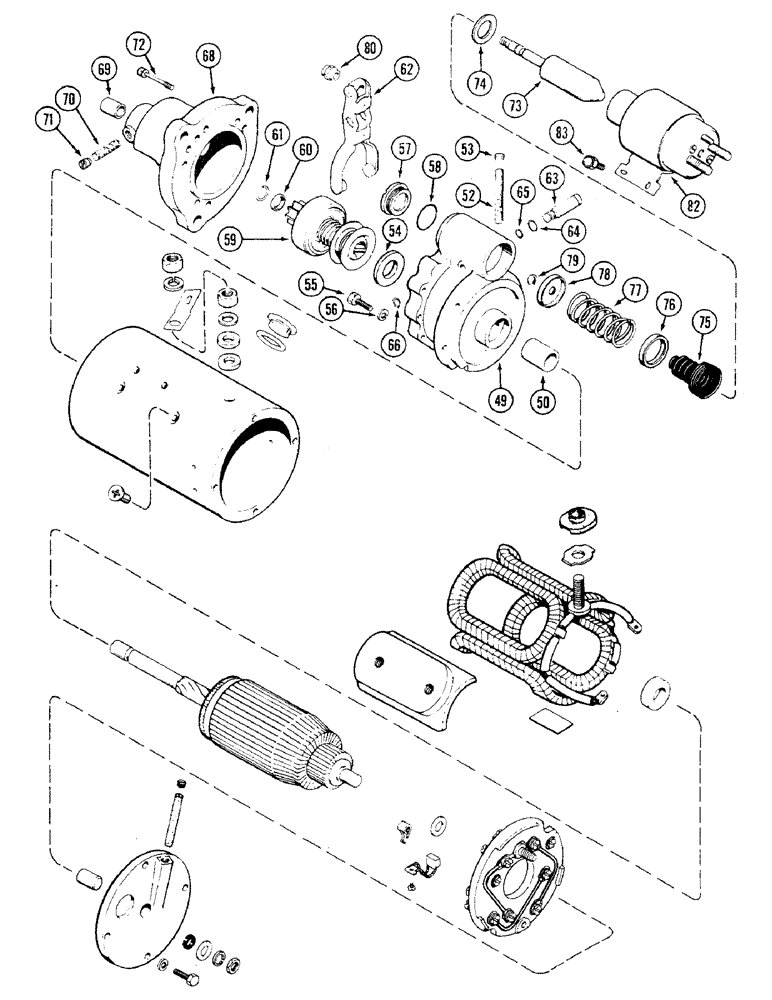

Запчасти Case 475 (074) - L52632 STARTER (55) - ELECTRICAL SYSTEMS

L52632

STARTER MOTOR

STARTER ASSEMBLY - (Continued from figure 72), Includes: Refs. 49-83

1шт.

49

A43859

HOUSING

ASSEMBLY - shift lever, Includes: Refs. 50-54

1шт.

50

A40944

BUSHING

- housing

1шт.

52

A41417

WICK

- oil

1шт.

53

221-1849

PLUG

- oil wick hole

1шт.

54

R15043

WASHER

- brake

1шт.

55

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Housing Hex, 1/4"-28 x 1", G5

5шт.

56

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

57

R21587

PLUG

- housing

1шт.

58

A41924

GASKET

- housing plug

1шт.

59

A47178

DRIVE

ASSEMBLY (Replaces A42331)

1шт.

60

R15049

COLLAR

- pinion stop

1шт.

61

R15048

RING

- retainer, pinion stop collar

1шт.

62

A43852

LEVER

- shift

1шт.

63

A43851

SHAFT

- shift lever pivot

1шт.

64

A47258

O-RING,0.369" ID x 0.515" OD

- pivot shaft

1шт.

65

A47259

O-RING,0.244" ID x 0.391" OD

- pivot shaft

1шт.

66

G46146

SNAP RING,#37, Ext

RING, Snap, , pivot lever retainer #37, Ext

1шт.

68

A47716

HOUSING

ASSEMBLY - drive end (Replaces A43858), Includes: Refs. 69-71

1шт.

69

A40868

BUSHING

- housing

1шт.

70

R15023

WICK

- oil

1шт.

71

221-1041

PLUG

- oil wick hole

1шт.

72

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW ASSEMBLY - lever housing to drive end housing

4шт.

73

A43857

PLUNGER

- solenoid

1шт.

74

A41922

WASHER

- retaining

1шт.

75

A42308

BOOT

- solenoid and plunger

1шт.

76

A43380

BACK-UP RING

RETAINER - spring, with 1-3/16" (30.2 MM) hole

1шт.

77

A41242

SPRING

- plunger return

1шт.

78

A43419

SEAT

RETAINER - spring, with 7/16" (11.1 MM) hole

1шт.

79

G46146

SNAP RING,#37, Ext

RING, Snap, , plunger retaining #37, Ext

1шт.

80

A43856

NUT

- retaining, plunger to shift lever

1шт.

82

A44817

SOLENOID

ASSEMBLY - starter (See figure 88) (Replaces A43846)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting (1/4 x 3/8" NC hex)

4шт.
