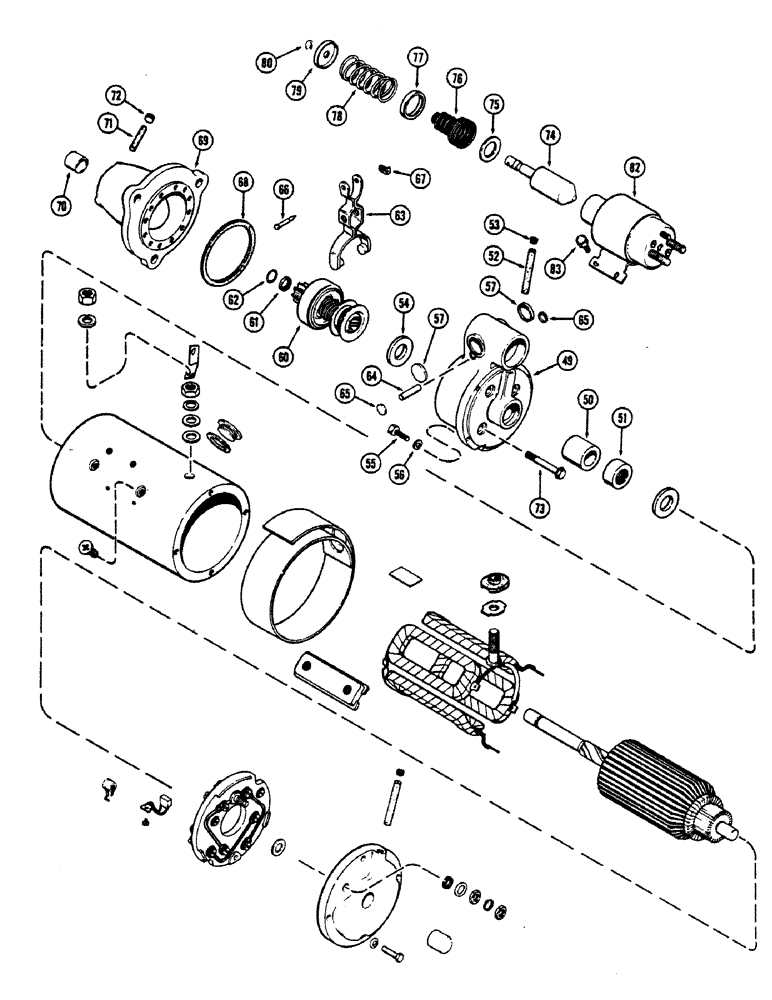

Запчасти Case 475 (043A) - A59217 STARTER (55) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY. - (Continued from Fig. 42)

1шт.

49

A42325

HOUSING ASSY. - shift lever

1шт.

50

A40944

BUSHING

- (3/4 x 7/8 x 3/4")

1шт.

51

A25407

OIL SEAL

- oil (21/32 x 1-3/8 x 3/8")

1шт.

52

A41417

WICK

- oil

1шт.

53

221-1849

PLUG

- oil wick hole

1шт.

54

R15043

WASHER

- brake (25/32 x 2 x 3/32")

1шт.

55

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Housing Hex, 1/4"-28 x 1", G5

5шт.

56

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

57

A42013

PLUG

- housing (1-3/16" cup type)

2шт.

60

A42331

DRIVE

ASSY.

1шт.

61

R15049

COLLAR

- pinion stop

1шт.

62

R15048

RING

- retaining, pinion stop collar

1шт.

63

A25398

LEVER

- shift

1шт.

64

A25402

STUD

SHAFT - shift lever pivot

1шт.

65

A42064

PLUG

- pivot shaft holes (5/8" cup type)

2шт.

66

A25400

PIN

- shift lever to solenoid plunger

1шт.

67

A25406

OIL SEAL

RETAINER - shift lever pin

1шт.

68

A41508

GASKET

- lever housing to drive end housing

1шт.

69

A25347

HOUSING ASSY. - drive end

1шт.

70

A40868

BUSHING

- (9/16 x 3/4 x 3/4")

1шт.

71

R15023

WICK

- oil

1шт.

72

221-1041

PLUG

- oil wick hole

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW ASSY. - lever housing to drive housing

4шт.

74

A25394

PLUNGER

- solenoid

1шт.

75

A42008

WASHER

- retaining (13/32 x 1-7/16 x 1/32")

1шт.

76

A42308

BOOT

- solenoid & plunger

1шт.

77

A43380

BACK-UP RING

RETAINER - spring (With 1-13/64" hole)

1шт.

78

A41242

SPRING

- plunger return

1шт.

79

R21571

RETAINER

- spring (With 13/32" hole)

1шт.

80

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

82

A42326

SOLENOID

ASSY. (See Fig. 44)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid attaching (1/4 x 3/8" N.C. hex.)

4шт.
