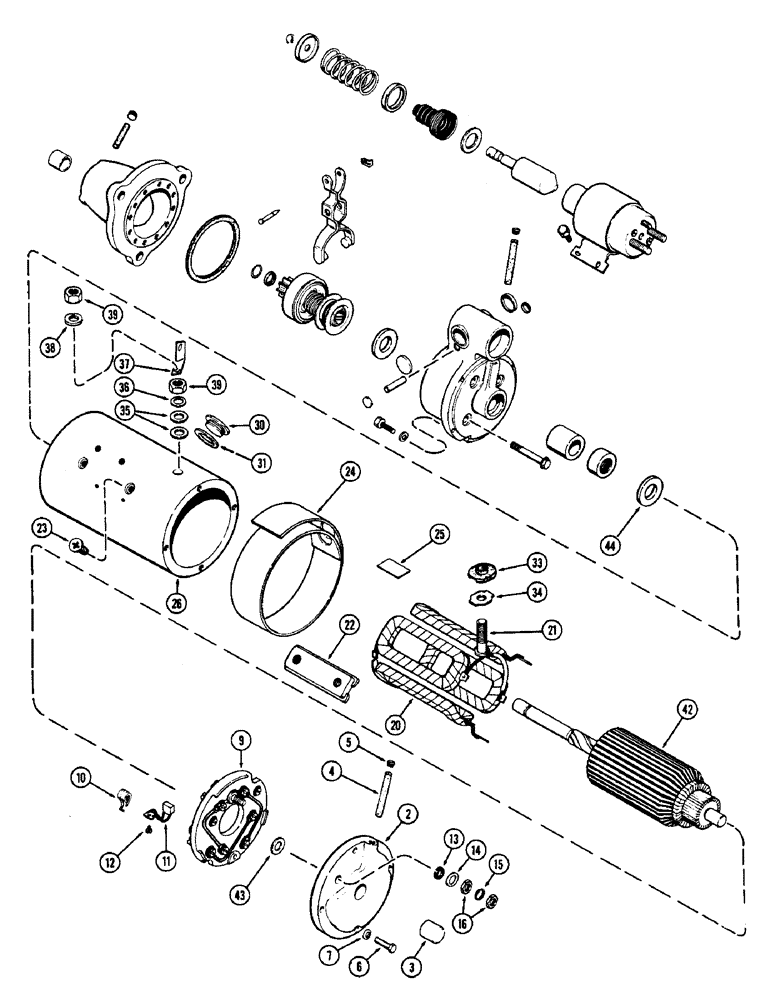

Запчасти Case 475 (042) - A59217 STARTER (55) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY. - (Delco #1113404) (Production only) (Order A64907)

1шт.

2

A42341

FRAME

ASSY. - commutator end

1шт.

3

A42323

BUSHING

- (9/16 x 11/16 x 7/8")

1шт.

4

R15023

WICK

- oil

1шт.

5

221-1041

PLUG

- oil wick hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A42786

LARGE PLATE

PLATE ASSY. brush (Less brush)

1шт.

10

A42333

SPRING

- brush tension

4шт.

11

A40891

BRUSH, COMMUTATOR

BRUSH ASSY.

4шт.

12

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush lead (#8 x 5/16" N.C., rd. hd.)

4шт.

13

A42085

BUSHING

WASHER - brush plate terminal insulating (Rubber)

1шт.

14

R15013

WASHER

- terminal (3/8 x 11/16 x 1/16")

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal Jam, 3/8"-16, G5

2шт.

20

A42332

COIL

ASSY. - field

1шт.

21

A40896

STUD

- starter terminal

1шт.

22

R15115

SHOE

- pole

4шт.

23

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes

8шт.

24

A42342

INSULATOR

INSULATION - field coil

1шт.

25

A42327

INSULATOR

INSULATION - coil junction

2шт.

26

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

30

R21587

PLUG

- brush inspection (In frame)

1шт.

31

A41924

GASKET

- inspection plug

1шт.

A41925

BUSHING

ASSY. - field coil stud, insulation

1шт.

33

NSS

NOT SOLD SEPARAT

INSULATOR - field coil, inner

1шт.

34

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

35

D30005

INSULATOR

- field coil stud (Outer)

2шт.

36

D30006

WASHER

- term. stud (1/2 x 7/8 x 1/32" metal)

1шт.

37

A42343

CONNECTOR, ELEC

CONNECTOR - field stud to solenoid

1шт.

38

129-113

WASHER - 1/2" lock

1шт.

39

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

42

A40800

ARMATURE

1шт.

43

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (Comm. end)

1шт.

44

A42202

WASHER

- armature spacer (3/4 x 1-3/4 x 5/16")

1шт.
