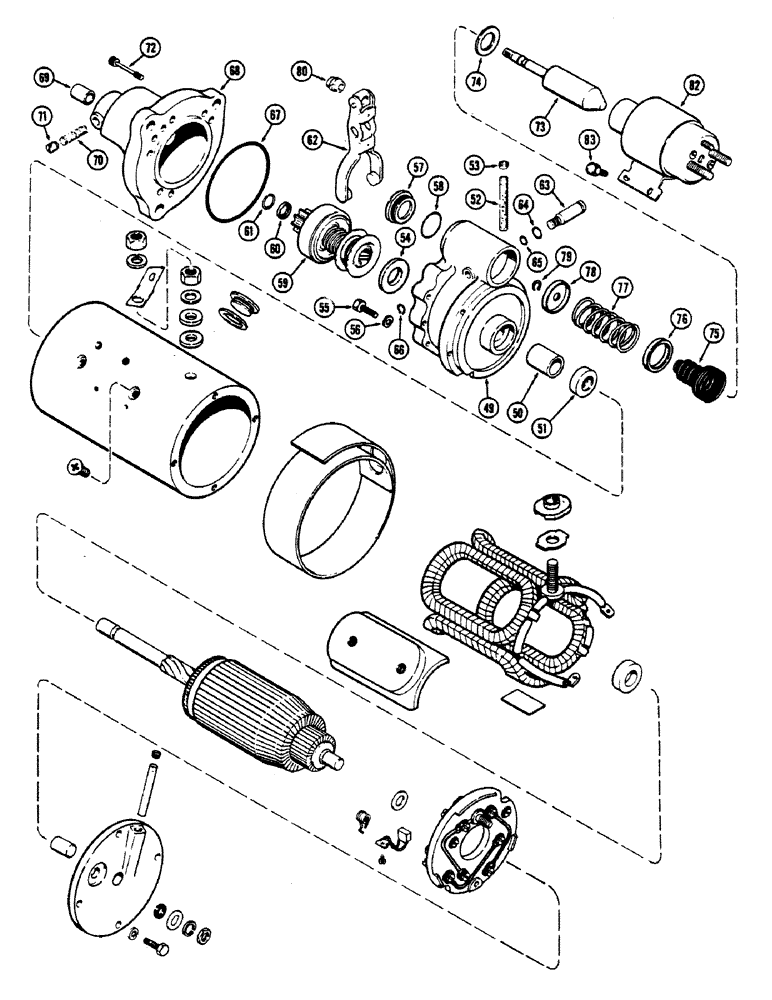

Запчасти Case 475 (041A) - A64907 STARTER (55) - ELECTRICAL SYSTEMS

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Continued from Fig. 40)

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

49

A43859

HOUSING

HOUSING ASSY. - shift lever

1шт.

50

A40944

BUSHING

BUSHING - (3/4 x 7/8 x 3/4")

1шт.

51

A25407

OIL SEAL

SEAL - oil (21/32 x 1-3/8 x 3/8")

1шт.

52

A41417

WICK

WICK - oil

1шт.

53

221-1849

PLUG

PLUG - oil wick hole

1шт.

54

R15043

WASHER

WASHER - brake (25/32 x 2 x 3/32")

1шт.

55

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Housing Hex, 1/4"-28 x 1", G5

5шт.

56

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

57

R21587

PLUG

PLUG - housing

1шт.

58

A41924

GASKET

GASKET - housing plug

1шт.

59

A42331

DRIVE

DRIVE ASSY.

1шт.

60

R15049

COLLAR

COLLAR - pinion stop

1шт.

61

R15048

RING

RING - retainer, pinion stop collar

1шт.

62

A43852

LEVER

LEVER - shift

1шт.

63

A43851

SHAFT

SHAFT - shift lever pivot

1шт.

64

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - pivot shaft (3/8 x 1/2 x 1/16")

1шт.

65

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - pivot shaft (1/4 x 3/8 x 1/16")

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot lever retainer #37, Ext

1шт.

67

A43854

O-RING,3.237" ID x 0.106" THK

GASKET - lever hsg. to drive end hsg.

1шт.

68

A43858

HOUSING

HOUSING ASSY. - drive end

1шт.

69

A40868

BUSHING

BUSHING - (9/16 x 3/4 x 3/4")

1шт.

70

R15023

WICK

WICK - oil

1шт.

71

221-1041

PLUG

PLUG - oil wick hole

1шт.

72

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW ASSY. - lever hsg. to drive end hsg.

4шт.

73

A43857

PLUNGER

PLUNGER - solenoid

1шт.

74

A41922

WASHER

WASHER - retaining (13/16 x 1-3/8 x 1/32")

1шт.

75

A42308

BOOT

BOOT - solenoid & plunger

1шт.

76

A43380

BACK-UP RING

RETAINER - spring (With 1-13/64" hole)

1шт.

77

A41242

SPRING

SPRING - plunger return

1шт.

78

A41242

SPRING

RETAINER - spring (With 13/32" hole)

1шт.

79

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

80

A43856

NUT

NUT - retaining, plunger to shift lever

1шт.

82

A43846

SOLENOID

SOLENOID ASSY. - (See Fig. 44)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid attaching (1/4 x 3/8" N.C. hex.)

4шт.
