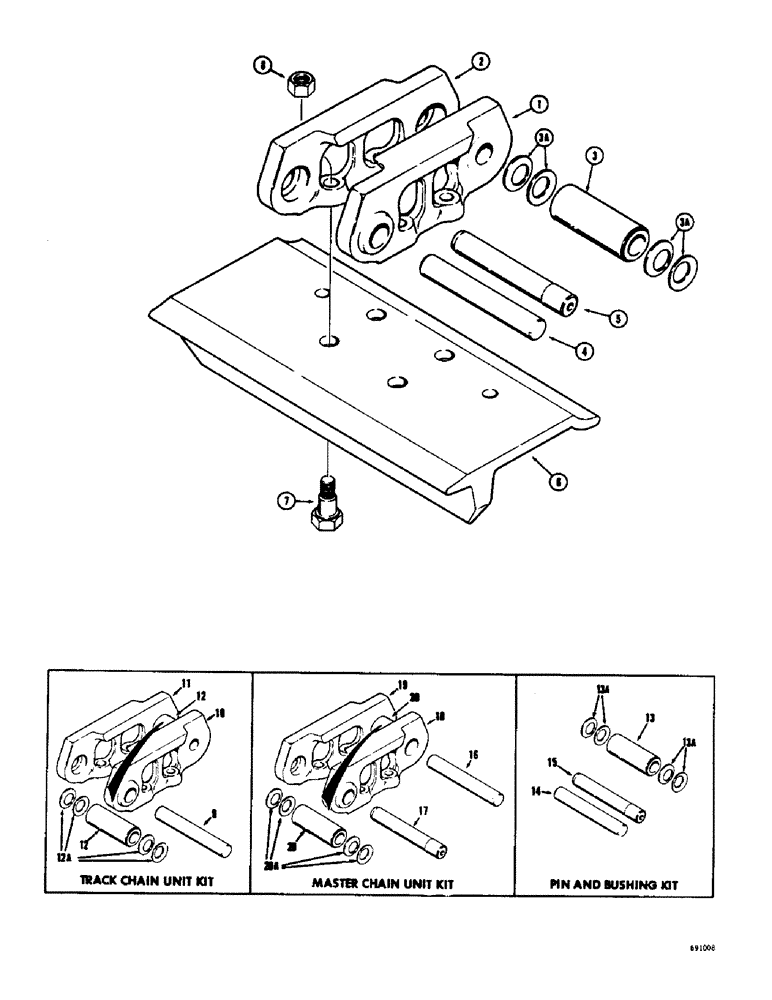

Запчасти Case 475 (130) - TRACK CHAINS AND TRACK SHOES (48) - TRACKS & TRACK SUSPENSION

D48011

CHAIN

ASSEMBLY - 18 unit, sealed chain

2шт.

D48010

CHAIN (AG)

CHAIN ASSEMBLY - 19 unit, sealed track chain

2шт.

1

D43181

LINK

- track chain (R.H.)

19шт.

2

D43182

LINK

- track chain (L.H.)

19шт.

3

D48007

BUSHING

- track

19шт.

3a

D48006

SEALING WASHER

- washer

76шт.

4

D43184

PIN

- track, standard

18шт.

5

D43185

PIN

- track, master

1шт.

6

D43482

TRACK SHOE

SHOE - track, 20 inch (Grouser closed)

74шт.

7

R24688

FLANGE BOLT

BOLT - special (1/2" - 20 NF 1.56 inch)

296шт.

8

R24578

NUT

- special

296шт.

D48039

DRAG LINK

KIT - track chain unit, sealed

70шт.

9

D43184

PIN

- track, standard, chain unit kit

2шт.

10

D43181

LINK

- track chain (R.H.), chain unit kit

1шт.

11

D43182

LINK

- track chain (L.H.), unit kit

1шт.

12

D48007

BUSHING

- track chain, unit kit

1шт.

12a

D48006

SEALING WASHER

- washer, track chain unit kit

4шт.

D48040

KIT

- pin and bushing, sealed track

1шт.

13

D48007

BUSHING

- track chain, pin and bushing kit

74шт.

13a

D48006

SEALING WASHER

- washer, pin and bushing kit

296шт.

14

D43398

PIN

- track, .003" oversize, bushing kit

70шт.

15

D44051

PIN

- track, master (.003" oversize), bushing kit

4шт.

D48038

DRAG LINK

KIT - master chain unit, sealed track

4шт.

16

D43184

PIN

- track, standard, master chain unit kit

1шт.

17

D43185

PIN

- track, master, chain unit kit

1шт.

18

D43181

LINK

- track chain (R.H.), master unit kit

1шт.

19

D43182

LINK

- track chain (L.H.), master unit kit

1шт.

20

D48007

BUSHING

- track chain, master unit kit

1шт.

20a

D48006

SEALING WASHER

- washer, master chain unit kit

1шт.

R29953

SHOE

rubber track, master chain unit kit

1шт.
