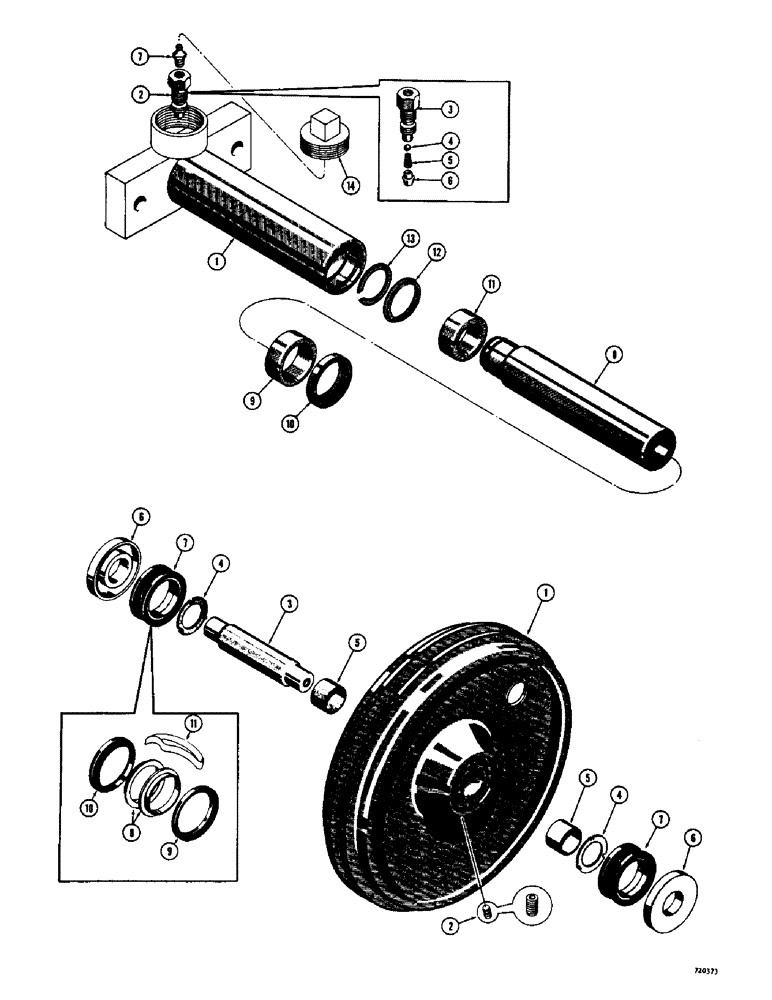

Запчасти Case 475 (128) - TRACK ADJUSTER (48) - TRACKS & TRACK SUSPENSION

D48596

ADJUSTER

HYDRAULIC ADJUSTER - track

2шт.

1

D48595

TUBE ASSY.

TUBE - cylinder

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - complete

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check ball

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - body

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

8

D35506

PISTON

1шт.

9

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- rider

1шт.

10

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

11

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

BEARING - backup

1шт.

12

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

PACKING - "U" cup

1шт.

13

A27085

RING

SNAP RING - piston

1шт.

14

D43400

PLUG

- pipe

1шт.

D35271

FRONT IDLER

IDLER WHEEL - complete

2шт.

1

D35272

FRONT IDLER

HUB - idler wheel

1шт.

2

221-841

PLUG

- pipe, hex. socket, idler wheel

1шт.

3

D35270

SHAFT

- idler wheel

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust, idler wheel

2шт.

5

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, idler wheel

2шт.

6

D35265

COLLAR

BUSHING - thrust, idler wheel

2шт.

7

D35267

SEAL

- face, idler wheel

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, idler wheel

1шт.

D36826

SEAL KIT

KIT - field repair, idler wheel

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner, idler wheel

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer, idler wheel

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic, idler wheel

1шт.
