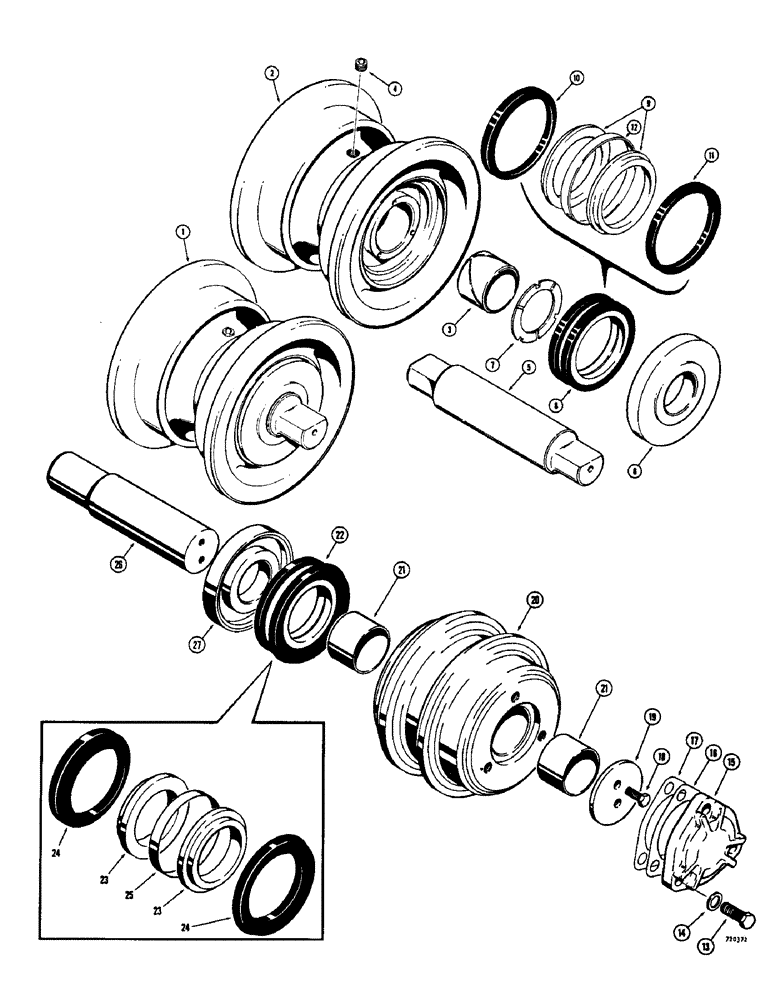

Запчасти Case 475 (126) - R24034 TRACK ROLLERS (48) - TRACKS & TRACK SUSPENSION
№
Артикул
Название
Примечание
Количество
1
R36468
ROLLER
- track, face seal Order R5017 kit consists of R24034 roller, D51644 shims and instructions.
10шт.
2
R24033
ROLLER, TRACK
HUB - track, roller
1шт.
3
D46396
BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L
- split
2шт.
4
221-841
PLUG
- pipe, Allen head
1шт.
5
D43858
SHAFT
- track roller
1шт.
6
D35265
COLLAR
- thrust
2шт.
7
D35266
THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk
- thrust
2шт.
8
D35267
SEAL
- face
2шт.
9
NSS
NOT SOLD SEPARAT
BODY - seal
1шт.
D36826
SEAL KIT
KIT - field repair
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - rubber, inner
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - rubber, outer
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - plastic
1шт.
D49923
ROLLER
- track carrier
2шт.
13
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
D49923 Track carrier roller Hex, 1/2"-13 x 1 1/4", G5, Full Thd
3шт.
14
D35288
WASHER
- copper, D49923 track carrier roller
1шт.
15
D30381
COVER
- roller, D49923 track carrier
1шт.
16
D30384
SHIM,.010" Thk
(Brown), D49923 Track carrier roller .010" Thk
1шт.
17
D30383
SHIM,.005" Thk
(Blue), D49923 Track carrier roller .005" Thk
1шт.
18
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
D49923 track carrier roller Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
19
D30382
WASHER
- thrust, D49923 track carrier roller
1шт.
20
D49922
HUB - roller, D49923 track carrier
1шт.
21
D46396
BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L
- split, D49923 track carrier roller
2шт.
22
D35267
SEAL
- face, D49923 track carrier roller
1шт.
23
NSS
NOT SOLD SEPARAT
BODY - seal, split, D49923 track carrier roller
1шт.
D36826
SEAL KIT
KIT - repair, D49923 track carrier roller
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - rubber, D49923 track carrier roller
2шт.
25
NSS
NOT SOLD SEPARAT
RETAINER - plastic, D49923 track carrier roller
1шт.
26
D49919
SHAFT
- roller, D49923 track carrier
1шт.
27
D35265
COLLAR
BUSHING - thrust, D49923 track carrier roller
1шт.
Выбрано товаров: 30
