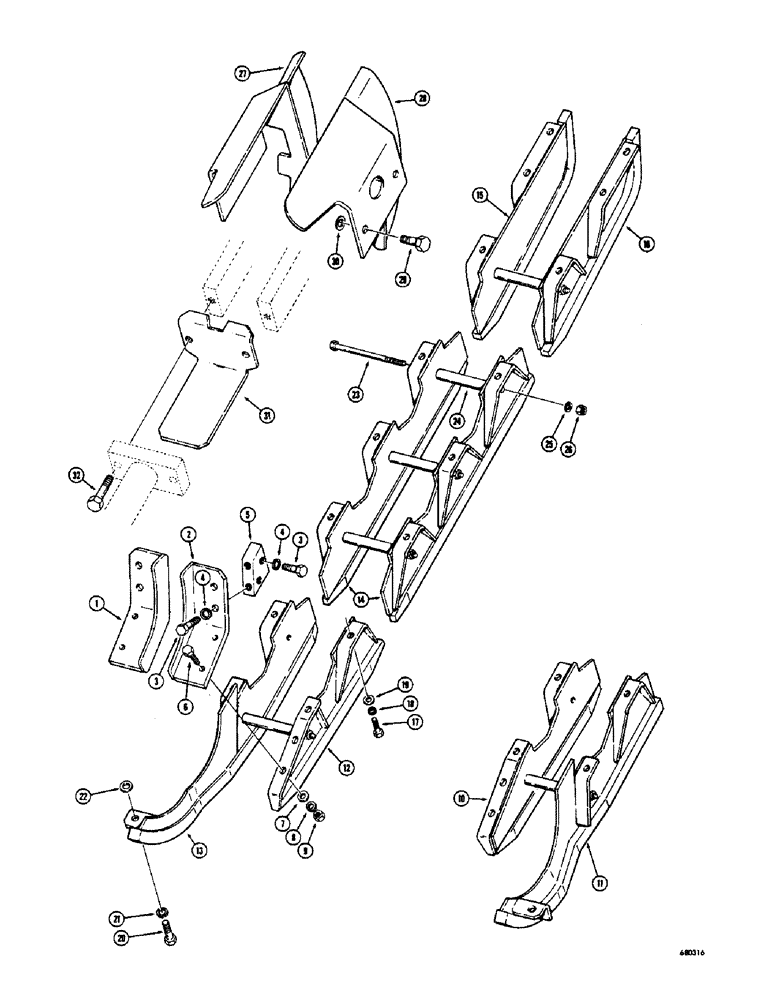

Запчасти Case 475 (125A) - TRACK GUIDES (ROCK GUARDS) (48) - TRACKS & TRACK SUSPENSION

1

D39558

GUARD

- sprocket, outer (L.H.)

1шт.

2

D39559

GUARD

- sprocket, outer (R.H.)

1шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

D39560

BLOCK

- sprocket guard mounting

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

7

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

D39566

GUARD

TRACK GUIDE - rear, outer (L.H.)

1шт.

11

D50533

LOCK

TRACK GUIDE - rear, inner (L.H.)

1шт.

12

D39567

GUARD

TRACK GUIDE - rear, outer (R.H.)

1шт.

13

D50532

GUARD

TRACK GUIDE - rear, inner (R.H.)

1шт.

14

D35387

GUIDE

TRACK GUIDE - center

4шт.

15

D39553

GUARD

TRACK GUIDE - front, L.H.

2шт.

16

D39554

GUARD

TRACK GUIDE - front, R.H.

2шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

32шт.

18

92-8

LOCK WASHER,1/2"

32шт.

19

195-33

WASHER,1/2"

- flat, () 1/2"

32шт.

20

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

HHCS - 5/16" - 11 NC x 1-1/4"

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

195-41

WASHER,5/8"

2шт.

23

13-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

HHCS - 1/2" - 13 NC x 7-1/2"

10шт.

24

D35372

BUSHING

SPACER - track guide

10шт.

25

92-8

LOCK WASHER,1/2"

10шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

10шт.

27

D39575

GUARD

- rock, idler wheel (L.H.)

2шт.

28

D39574

GUARD

- rock, idler wheel (R.H.)

2шт.

29

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

30

D35268

SHIM,1/32" Thk

Guard 1/32" Thk

1шт.

31

D48940

GUARD

- rock, track frame

2шт.

32

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.
