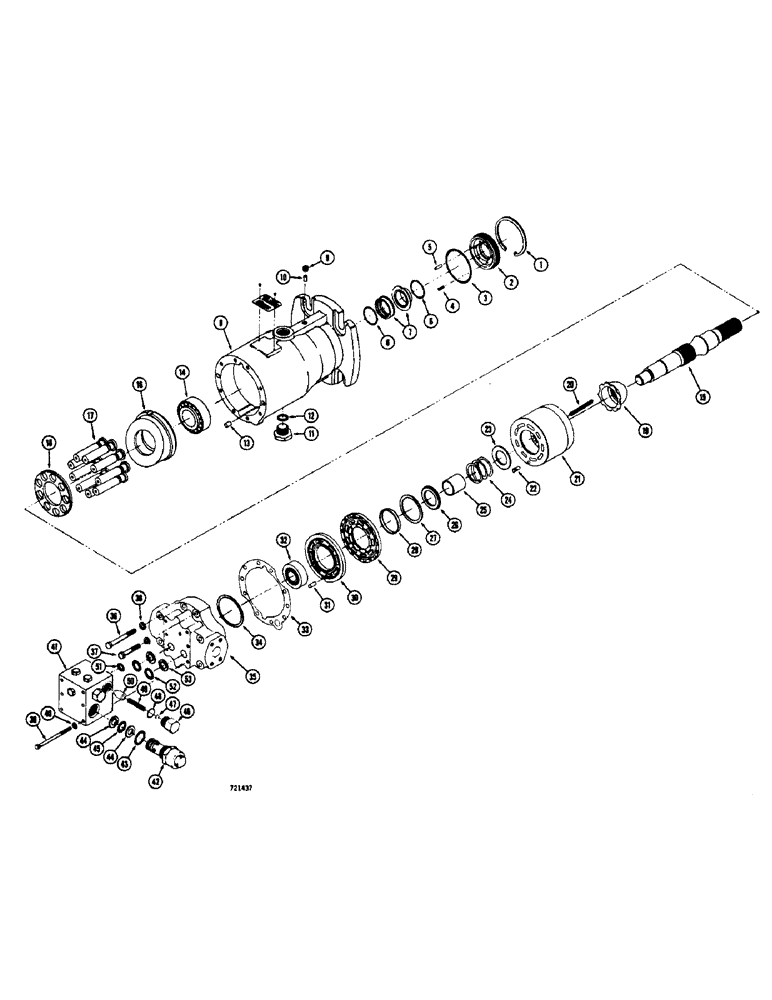

Запчасти Case 475 (182) - F94287 HYDROSTATIC MOTOR, VIBRATOR DRIVE (35) - HYDRAULIC SYSTEMS

F94287

MOTOR HOUSING

MOTOR - hydrostatic, fixed displacement (Sundstrand #21-3023)

1шт.

R29533

SEAL KIT

KIT - seal

1шт.

1

F23160

RING

- retaining

1шт.

2

F23159

RETAINER

RETAINING - seal

1шт.

3

F23158

O-RING

SEAL - "O" ring

1шт.

4

F23156

SPRING

- retainer

1шт.

5

F23157

AXLE PIN

PIN - grooved

1шт.

6

R26322

O-RING

SEAL - "O" ring

2шт.

7

F89258

SEAL

KIT

1шт.

8

F23212

HOUSING - pump

1шт.

9

F23137

PLUG

- special

1шт.

10

NLS

NO LONGER SERVICED

PIN - retaining

1шт.

11

86512512

PLUG,7/8" - 14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

F23124

AXLE PIN

PIN - aligning

2шт.

14

R26254

BEARING

ASSEMBLY - front

1шт.

15

F23206

SHAFT

- motor

1шт.

16

F23208

PLATE

- swivel, fixed

1шт.

R29536

BLOCK

KIT - block, cylinder

1шт.

17

R26275

PISTON

- cylinder

9шт.

18

F23207

FLANGE

RETAINER - piston

1шт.

19

F23205

GUIDE

- retainer

1шт.

20

F23204

SPRING

- retaining

1шт.

21

F89263

BLOCK

- cylinder

1шт.

22

F23203

PIN

- alignment

1шт.

23

F23202

SEAT

- spring

1шт.

24

R26276

SPRING - cylinder

1шт.

25

F23200

GUIDE

- spring

1шт.

26

F23199

RETAINER

- spring

1шт.

27

F23198

SEAL ASSY.

RING - retaining

1шт.

28

F23197

WASHER

PILOT - bearing

1шт.

29

F23196

LARGE PLATE

PLATE - bearing, rear

1шт.

30

F23279

SHIN

PLATE - bearing, rear

1шт.

31

NLS

NO LONGER SERVICED

PIN - alignment

1шт.

32

NLS

NO LONGER SERVICED

ASSEMBLY - rear

1шт.

33

F23193

HEADED PIN,3/4" x 4 11/16"

GASKET - end cap

1шт.

34

F23193

HEADED PIN,3/4" x 4 11/16"

SHIM

1шт.

35

H219428

CAP - end, motor

1шт.

36

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

5шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

38

F23114

WASHER

- special

8шт.

R29543

HYDRAULIC VALVE

MANIFOLD AND VALVE ASSEMBLY - motor

1шт.

39

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

6шт.

40

F23187

WASHER

- special (5/16")

6шт.

F89261

MANIFOLD

AND VAVLE - motor

1шт.

41

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - motor

1шт.

42

F89262

LOCK VALVE

VALVE - high pressure relief

2шт.

43

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

44

A16860

RING

- back up

4шт.

45

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

46

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

47

H570283

SHIM

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

R29539

SEAL ASSY.

SEAL KIT - manifold

1шт.

51

R15366

O-RING,7/8" ID x 1" OD x 1/16"

SEAL - "O" ring

1шт.

52

F23189

O-RING

SEAL - "O" ring

2шт.

53

F23190

O-RING

RING - back up

2шт.
