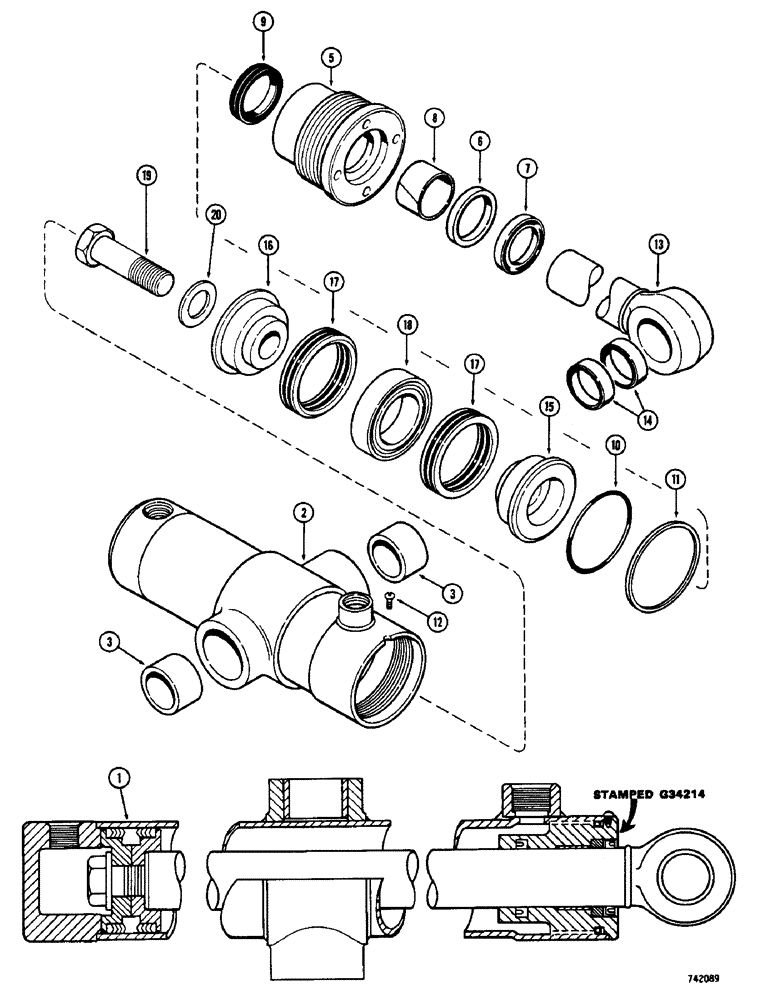

Запчасти Case 475 (171A) - G34214 PLOW SWING CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (35) - HYDRAULIC SYSTEMS

1

G34214

CYLINDER BLOCK

CYLINDER - plow swing, 3-1/2" dia. x 5-1/8" stroke

1шт.

2

G32897

TUBE

- cylinder body

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

4

RESERVED

1шт.

G34645

GLAND

ASSEMBLY (Replaces G34465)

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

8

G34302

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

9

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G34215

ROD

- piston (1-1/2" dia.)

1шт.

14

D43056

BUSHING

- piston rod

2шт.

15

G34219

PISTON ASSY.

PISTON - split (Rod end)

1шт.

16

G32257

PISTON ASSY.

PISTON - split (Bolt end)

1шт.

17

D47202

PACKING ASSY. - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G34646

1шт.

18

D47208

RING

- center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2" (Grade 8)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened (7/8" x 1-3/8" x 1/8")

1шт.

G34646

GASKET KIT

SEAL KIT - cylinder repair Includes: Ref. 7-11 and 17

1шт.
