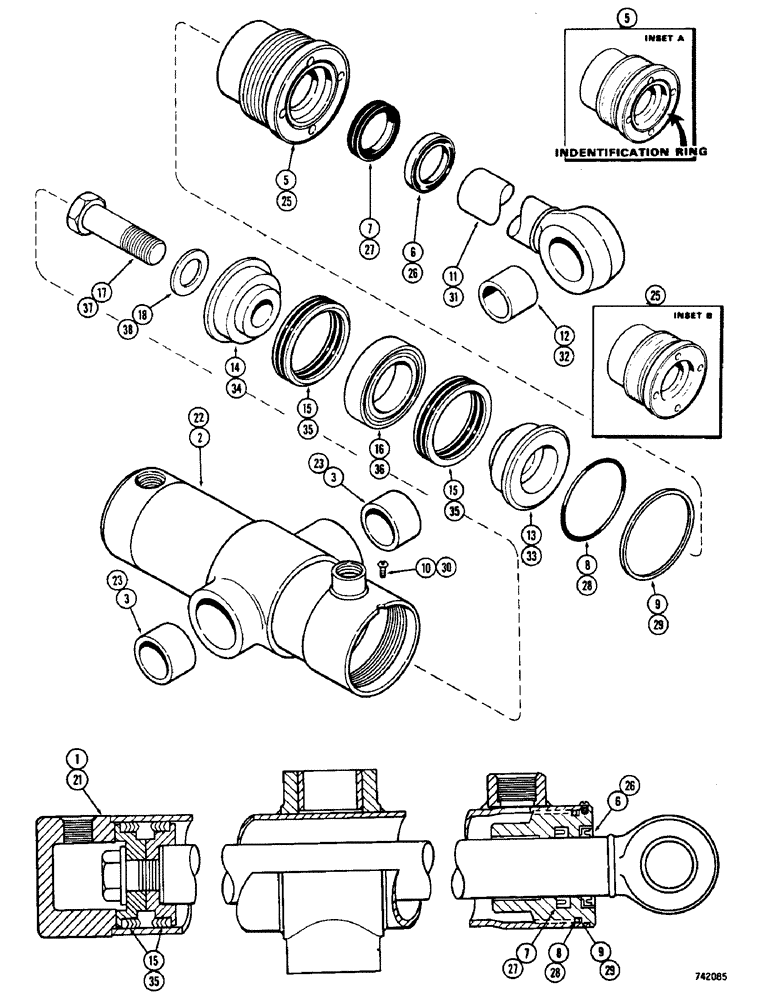

Запчасти Case 475 (170) - G34214 PLOW SWING CYLINDER, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

1

G34214

CYLINDER BLOCK

CYLINDER - plow swing, 3-1/2" dia. x 5-1/8" stroke

2шт.

2

G32897

TUBE

- cylinder body

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

4

G34233

GLAND

ASSEMBLY - not shown

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

11

G34215

ROD

- piston (1-1/2" dia.)

1шт.

12

D43056

BUSHING

- piston rod

2шт.

13

G34219

PISTON ASSY.

PISTON - split (Rod end)

1шт.

14

G32257

PISTON ASSY.

PISTON - split (Bolt end)

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

16

D47208

RING

- center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2" (Grade 8)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened (7/8" x 1-3/8" x 9/64")

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

G32902

SEAL KIT - cylinder repair Includes: Ref. 6-9 and 15

1шт.

21

G32894

CYLINDER - plow swing, 3-1/2" dia. x 5-1/8" stroke, G32894, gland has no identification ring

2шт.

22

G32897

TUBE

- cylinder body, G32894 plow swing , gland has no identification ring

1шт.

23

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion, G32894 plow swing cylinder, gland has no identification ring

2шт.

24

G32903

GLAND ASSEMBLY - not shown, G32894 plow swing cylinder, has no identification ring

1шт.

25

NSS

NOT SOLD SEPARAT

GLAND - see inset B, G32894 plow swing cylinder, has no identification ring

1шт.

26

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32894 plow swing cylinder, gland has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

27

D36969

CUP

SEAL - piston rod, (1-1/2 x 2 x 7/16"), G32894 plow swing cylinder, gland has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

28

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32894 plow swing cylinder, has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

29

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32894 plow swing cylinder, has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

30

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32894 plow swing cylinder, has no identification ring

1шт.

31

G32895

EYE

ROD - piston (1-1/2" dia.), G32894 plow swing cylinder, gland has no identification ring

1шт.

32

D43056

BUSHING

- piston rod, G32894 plow swing cylinder, gland has no identification ring

1шт.

33

G32256

PISTON - split (Rod end), G32894 plow swing cylinder, gland has no identification ring

1шт.

34

G32257

PISTON ASSY.

PISTON - split (Bolt end), G32894 plow swing cylinder, gland has no identification ring

1шт.

35

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type), G32894 plow swing cylinder, gland has no identification ring

2шт.

Part of Cylinder Repair Seal Kit P/N G32902

1шт.

36

D47208

RING

- center bearing, G32894 plow swing cylinder, gland has no identification ring

1шт.

37

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2" (Grade 8), G32894 plow swing cylinder, gland has no identification ring

1шт.

38

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened (7/8" - 1-3/8" x 9/64"), G32894 plow swing cylinder, gland has no identification ring

1шт.

G32902

SEAL KIT - cylinder repair Includes: Ref. 26-29 and 35, G32894 plow swing, gland has no identification ring

1шт.
