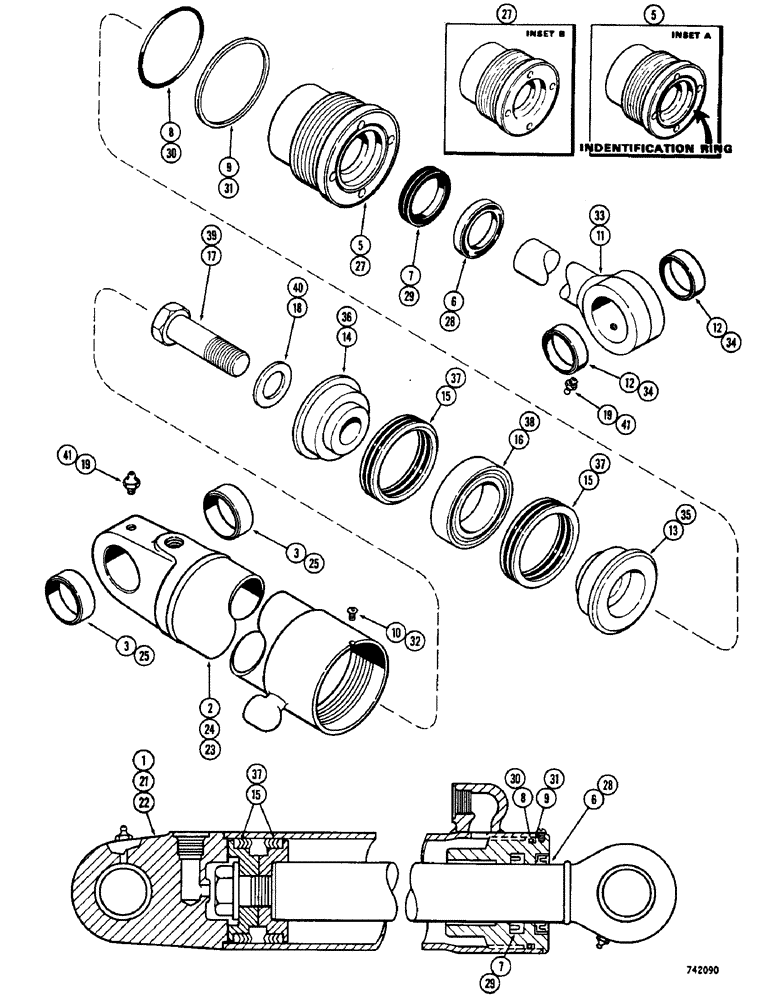

Запчасти Case 475 (168) - G34210 AND G34211 PLOW LIFT CYLINDERS, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

1

G34210

CYLINDER ASSY.

CYLINDER - plow lift, R.H. (4-1/2" dia. x 11-5/8" stroke)

1шт.

1

G34211

CYLINDER ASSY.

CYLINDER - plow lift, L.H. (4-1/2" dia. x 11-5/8" stroke)

1шт.

2

G32890

TUBE - G34210 cylinder

1шт.

2

G32891

TUBE

- G34211 cylinder

1шт.

3

D38478

BUSHING

- tube

2шт.

4

G33641

GLAND

ASSEMBLY - not shown

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

9

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

11

G34212

ROD

- piston (2" dia.)

1шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

13

D49166

PISTON ASSY.

PISTON - split (Rod end)

1шт.

14

D46931

PISTON

- split (Bolt end)

1шт.

15

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

18

G32351

WASHER

- hardened (1-11/32" x 2-1/2" x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

20

RESERVED

1шт.

G32885

KIT

seal, cylinder repair, Includes: Ref. 6-9 and 15

1шт.

21

G32888

CYLINDER

- plow lift, R.H. (4-1/2" dia. x 11-5/8" stroke), G32888 and G32889, gland has no identification ring

1шт.

22

G32889

CYLINDER

- plow lift, L.H. (4-1/2" dia. x 11-5/8" stroke), G32888 and G32889, gland has no identification ring

1шт.

23

G32890

TUBE - G32888 cylinder, G32889 plow lift, gland has no identifcation ring

1шт.

24

G32891

TUBE

- G32889 cylinder, G32888 plow lift, gland has no identification ring

1шт.

25

D38478

BUSHING

- tube, G32888 and G32889 plow lift cylinders, gland has no identification ring

2шт.

26

G32886

GLAND

ASSEMBLY - not shown, G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

27

NSS

NOT SOLD SEPARAT

GLAND - see inset B, G32888 and G32889 plow lift cylinders, has no identification ring

1шт.

28

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

29

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32"), G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8"), G32888 and G32889 plow lift cylinders, has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

31

G32284

BACK-UP RING

- gland "O" ring back-up, G32888 and G32889 plow lift cylinders, has no identification ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

32

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4", G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

33

G32892

ROD

- piston (2" dia.), G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

34

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod, G32888 and G32889 plow lift cylinders, gland has no identification ring

2шт.

35

D49166

PISTON ASSY.

PISTON - split, rod end, G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

36

D46931

PISTON

- split, (Bolt end), G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

37

D47205

PACKING

ASSY. - piston ("V" type), G32888 and G32889 plow lift cylinders, gland has no identification ring

2шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

38

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing, G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

39

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

40

G32351

WASHER

- hardened (1-11/32" x 2-1/2" x 9/64"), G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8 NPT), G32888 and G32889 plow lift cylinders, gland has no identification ring

2шт.

G32885

KIT

seal, cylinder repair, Includes: Ref. 28-31 and 37, G32888 and G32889 plow lift cylinders, gland has no identification ring

1шт.
