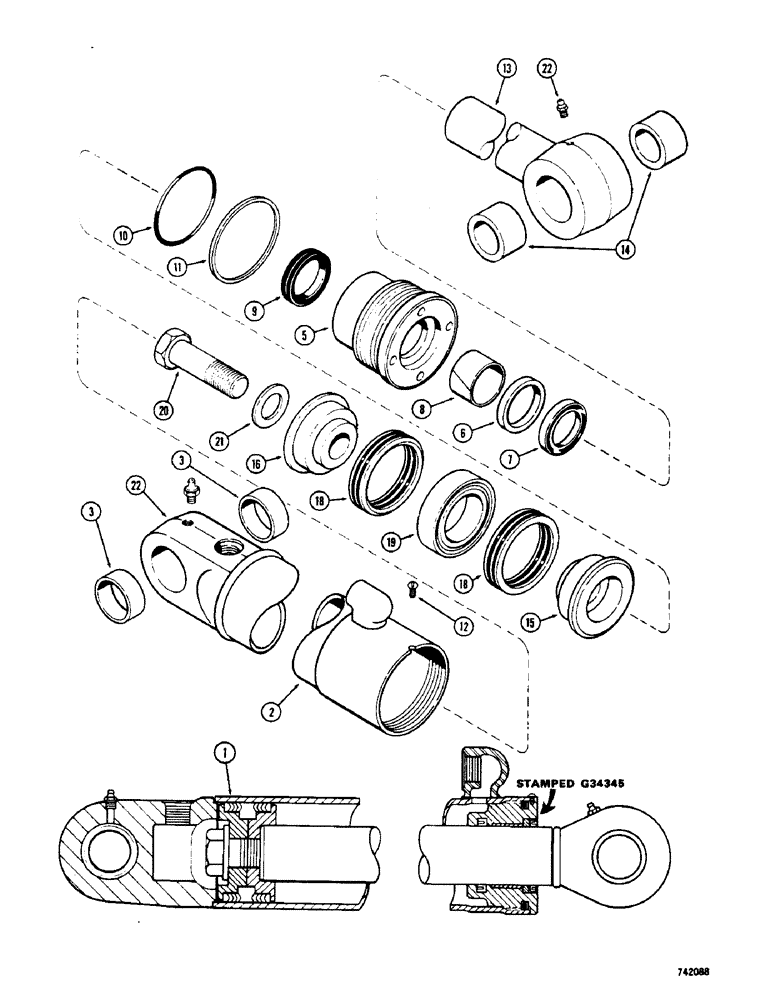

Запчасти Case 475 (167C) - G34345 DOZER TILT CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (35) - HYDRAULIC SYSTEMS

1

G34345

HYDRAULIC CYLINDER

CYLINDER - tilt (3-1/2" dia. x 8" stroke)

1шт.

2

G34411

TUBE,16.93" L

- cylinder body

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

RESERVED

1шт.

G34629

GLAND

ASSEMBLY

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod (2 x 2-1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

8

G34322

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

9

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" ring - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G34409

ROD ASSY.

ROD - piston (2" dia.)

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33167

PISTON

- split (Rod end)

1шт.

16

D28367

PISTON

- split (Bolt end)

1шт.

17

RESERVED

1шт.

G33237

PACKING

- piston

1шт.

Part of Cylinder Repair Seal Kit P/N G34648

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened (1-1/8" x 1-7/8" x 1/8")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

G34648

SEAL

KIT - cylinder repair Includes: Ref. 7-11 and G33237

1шт.
