Запчасти Case 475 (162) - FOUR POSITION SPOOLS (35) - HYDRAULIC SYSTEMS

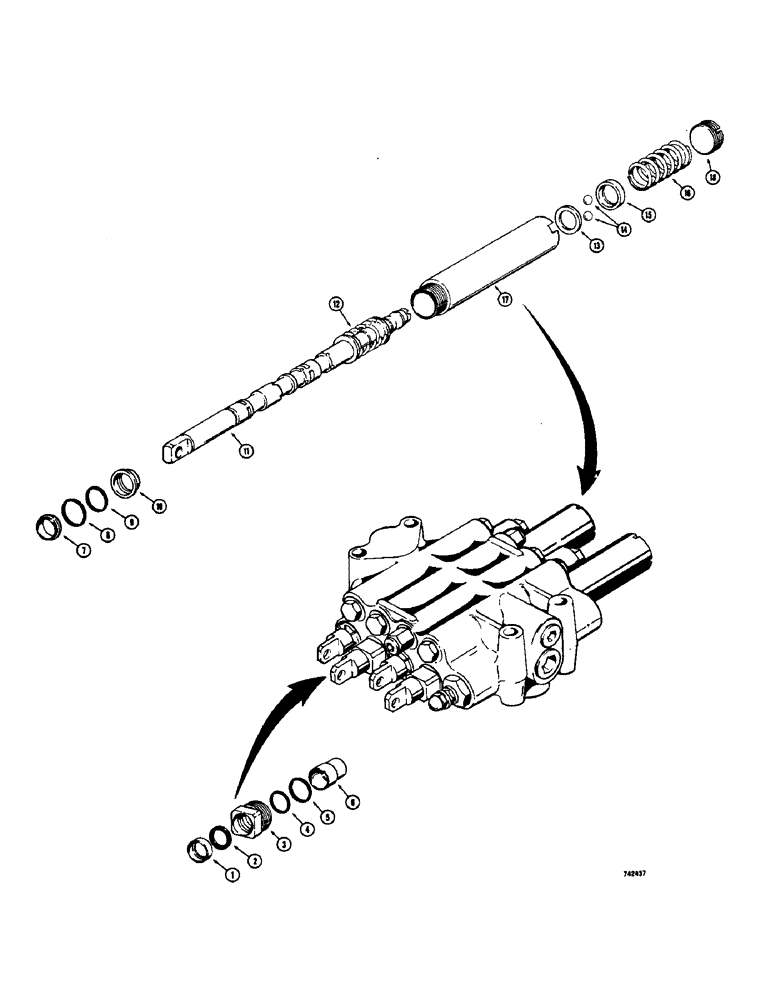

Схема запчастей Case 475 - (162) - FOUR POSITION SPOOLS (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D46024

SPOOL

ASSEMBLY - four position (Color code - black or letter code - W), Serial Range: .73700"-.73709"

1шт.

D46025

SPOOL

ASSEMBLY - four position (Color code - blue or letter code - X), Serial Range: .73710"-73719"

1шт.

N6592

VALVE

SPOOL ASSEMBLY - four position (Color code - yellow or letter code - Y), Serial Range: .73720"-.73729"

1шт.

D46027

SPOOL

ASSEMBLY - four position (Color code - green or letter code - Z), Serial Range: .73730"-.73740"

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland (Small)

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

SEAL - "O" ring, gland (Large)

1шт.

6

D37076

SLEEVE

- spool, lug end

1шт.

7

D38857

RETAINER - "O" ring

1шт.

8

A16877

SEAL

- "O" ring, housing (Large)

1шт.

9

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland (Small)

1шт.

10

D33856

RETAINER

- "O" ring

1шт.

D46034

TUBE

SPOOL KIT - D46024 spool assembly only

1шт.

D46035

SPOOL

KIT - D46025 spool assembly only

1шт.

D46036

SHAFT

SPOOL KIT - D46026 spool assembly only

1шт.

D46037

SPOOL

KIT - D46027 spool assembly only

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - four position

1шт.

12

A16882

SPRING

- centering

1шт.

13

L30455

WASHER

- detent

1шт.

14

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

15

L30456

CAM

- detent

1шт.

16

L30626

SPRING

- detent

1шт.

17

L30454

CAP

- valve, detent

1шт.

18

L30458

PLUG

- detent adjustment

1шт.

Выбрано товаров: 26
