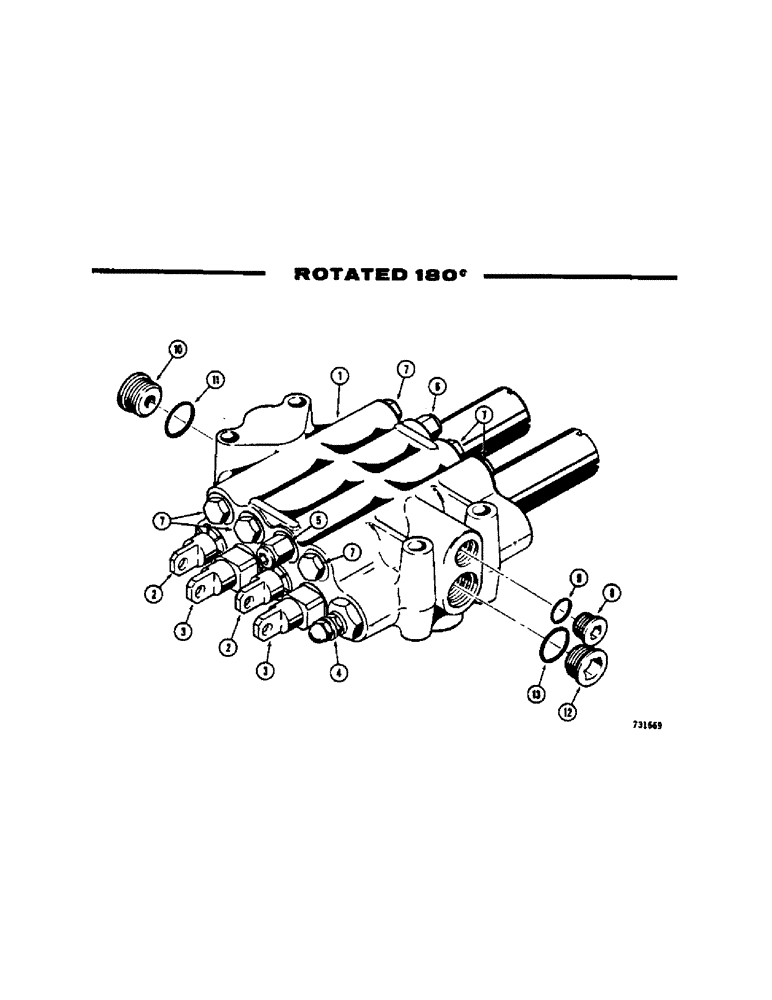

Запчасти Case 475 (158[1]) - R31182 VALVE 4 SPOOL (35) - HYDRAULIC SYSTEMS

1

R31182

VALVE

- equipment control, four spool

1шт.

2

D37050

SPOOL

- three position (Parts list Fig. 160)

2шт.

2

D37051

SPOOL

- three position (Parts list Fig. 160)

2шт.

2

D37052

SPOOL

- three position (Parts list Fig. 160)

2шт.

2

D37053

SPOOL

- three position (Parts list Fig. 160)

2шт.

3

D46024

SPOOL

- four position (Parts list Fig. 162)

2шт.

3

D46025

SPOOL

- four position (Parts list Fig. 162)

2шт.

3

D46026

PLUG

SPOOL - four position (Parts list Fig. 162)

2шт.

3

D46027

SPOOL

- four position (Parts list Fig. 162)

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Fig. 160)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 164)

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Fig. 165A)

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Fig. 164(1))

6шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port Hex Soc, 3/4"-16 ORB

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port Hex Soc, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Socket (Port), If used Hex Hd, 7/8"-14 ORB

2шт.

15

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
