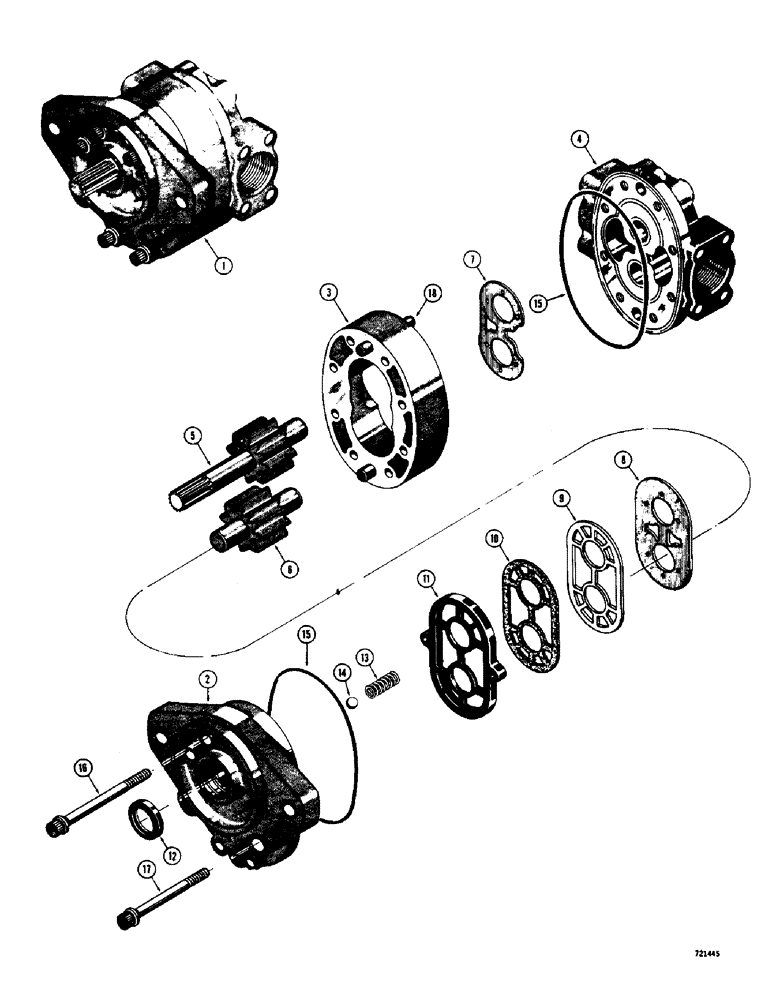

Запчасти Case 475 (156) - R24624 EQUIPMENT PUMP (35) - HYDRAULIC SYSTEMS

1

R24624

PUMP

PUMP - hydraulic, Cessna no. 24502-LAN

1шт.

RR24624

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

RC24624

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

R25505

COVER

COVER - driveshaft end

1шт.

3

R25508

BODY

BODY - center

1шт.

4

R25509

SPARE PART COVER - port end

1шт.

R25512

GEAR SET

GEAR SET - drive and driven

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - idler

1шт.

R25506

KIT

KIT - seal

1шт.

7

D41322

PLATE

PLATE - thrust

1шт.

8

A42304

DIAPHRAGM

DIAPHRAGM - pump

1шт.

9

A42305

GASKET

GASKET - protector

1шт.

10

A42303

GASKET

GASKET - backup

1шт.

11

D48888

SEAL

SEAL - diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - drive shaft

1шт.

13

D31403

SPRING

SPRING - ball retaining

1шт.

14

D31404

BALL

BALL - steel

1шт.

15

D48887

O-RING

SEAL - "O" ring, 4-3/4" I.D.

2шт.

16

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

SCREW - Ferry cap (3/8" - 16 NC x 3")

4шт.

17

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

SCREW - Ferry cap (3/8" - 16 NC x 2-3/4")

4шт.

18

A40785

AXLE PIN,12.7mm OD x 63.5mm L

DOWEL - body

2шт.
