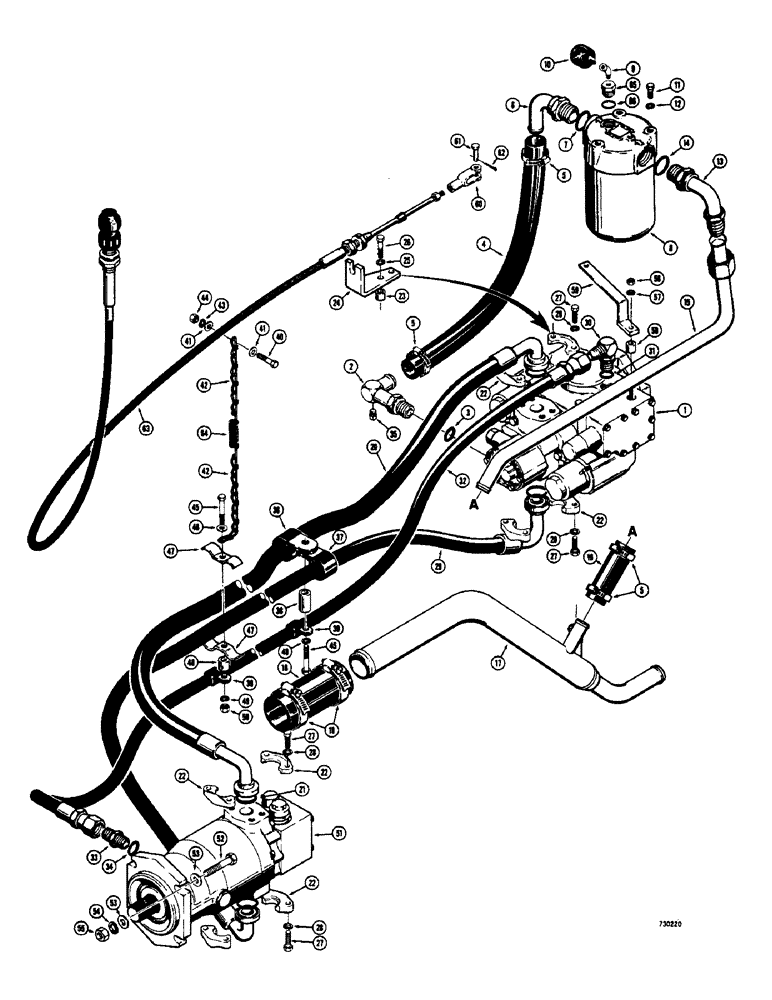

Запчасти Case 475 (150) - PLOW HYDRAULICS AND CONTROL (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP - hydrostatic

1шт.

2

R24252

STEM

TUBE -, Serial Range: pump-filter

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

R29836

FLEXIBLE HOSE

Low pressure (1" I.D. x 21-1/4" long)

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Screw type

4шт.

6

R25134

TUBE ASSY.

At filter

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

8

R25511

FILTER CARTRIDGE

Oil, hydraulic (Parts list Fig. 104)

1шт.

9

221-401

ELBOW,45 Degree, 1/8"-27, NPT

Street

1шт.

10

R29792

GAUGE ASSY.

Oil pressure

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

12

95-6

WASHER,3/8"

3шт.

13

R25137

TUBE ASSY.

At filter

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

15

R24242

TUBE,1" OD

To manifold

1шт.

16

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

Low pressure

1шт.

17

R24254

MANIFOLD

At hydraulic tank

1шт.

18

R24841

HOSE ASSY.

Low pressure (2" I.D. x 6-1/2" long)

1шт.

19

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Screw type

2шт.

20

R24261

HOSE

Pump to motor, top

1шт.

21

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL

4шт.

22

A12306

FLANGE

Split

8шт.

23

D43608

SPACER

SPACER - bracket

2шт.

24

R24263

BRACKET

SPARE PART Control mounting

1шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

14шт.

28

92-6

LOCK WASHER,3/8"

14шт.

29

R24251

HOSE

Pump to motor, bottom

1шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

R24247

HOSE

Pump to motor, side (105" long)

1шт.

33

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, straight

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

221-11

PLUG,Sq Hd, 1/8"-27

NPT

1шт.

36

R24245

SPARE PART "P" type

1шт.

37

D40471

CLAMP

"P" type

1шт.

38

A30965

SPACER

Clamp

1шт.

39

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

"P" type

2шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

41

195-25

WASHER,3/8"

2шт.

42

T33946

SPARE PART CHAIN - hose support

2шт.

43

92-6

LOCK WASHER,3/8"

1шт.

44

25-106

NUT,3/8"-16, G5

1шт.

45

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

46

95-6

WASHER,3/8"

1шт.

47

R24265

CLAMP

Hose

2шт.

48

R29846

SPARE PART Clamp 3/8" Pipe x 5/8"

1шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

25-106

NUT,3/8"-16, G5

1шт.

51

F94287

MOTOR HOUSING

Hydrostatic (Parts list Fig. 182)

1шт.

52

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

53

R24323

WASHER

Special

8шт.

54

92-8

LOCK WASHER,1/2"

Plow hydraulics and control

4шт.

55

25-108

NUT,1/2"-13, G5

Plow hydraulics and control

4шт.

56

25-104

NUT,1/4"-20, G5

Plow hydraulics and control

1шт.

57

92-4

LOCK WASHER,1/4"

Plow hydraulics and control

1шт.

58

G11270

SPACER

Shift lever, plow hydraulics and control

1шт.

59

R24422

LEVER

Shift, pump control, plow hydraulics and control

1шт.

60

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - adjustable, plow hydraulics and control

1шт.

61

141-1

CLEVIS PIN,3/16" x .580"

Plow hydraulics and control

1шт.

62

132-5

COTTER PIN,1/16" x 1/2"

Plow hydraulics and control

1шт.

63

R24417

CABLE PULLING GRIP

Control, pump (Parts list Fig. 71A), plow hydraulics and control

1шт.

64

R31412

SPRING

Chain tension, plow hydraulics and control

1шт.

65

R26251

SPARE PART Special, plow hydraulics and control

1шт.

66

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Plow hydraulics and control

1шт.
