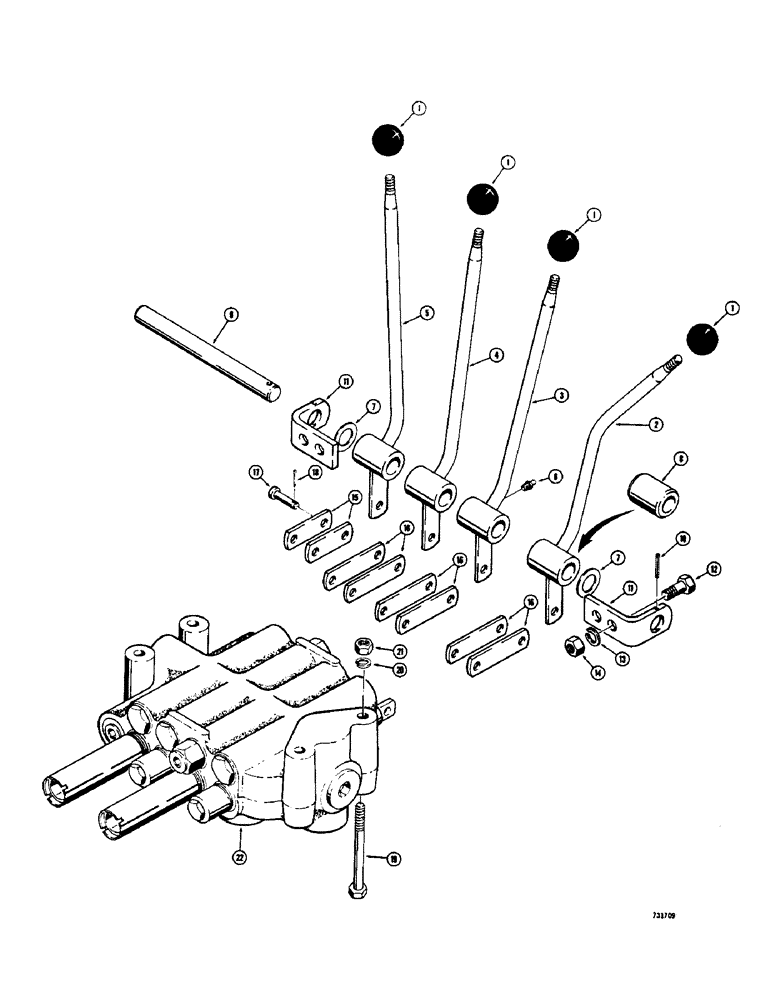

Запчасти Case 475 (149A) - FOUR SPOOL VALVE AND LEVERS (35) - HYDRAULIC SYSTEMS

1

70213

KNOB

- lever

4шт.

2

R31435

LEVER

- control, R.H. outer (Dozer tilt)

1шт.

3

R24346

LEVER - control, R.H. inner (Dozer and reel lift)

1шт.

4

R24347

LEVER

- control, L.H. inner (Plow)

1шт.

5

R24345

LEVER - control, L.H. outer (Swing)

1шт.

6

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease. straight

4шт.

7

A26411

WASHER

- special, spacer

1шт.

8

D33252

SPACER - lever (When 4th lever not used)

1шт.

9

D36087

SHAFT

- lever mounting

1шт.

10

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

11

D47216

BRACKET

- lever mounting

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

15

R24353

LINK - short, to L.H. lever

2шт.

16

R24352

DRAG LINK

LINK - long (R31435, R24346 and R24347 levers)

4-6шт.

17

D45388

PIN

- clevis

6-8шт.

18

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6-8шт.

19

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

22

R31182

VALVE

- equipment control (4 spool) Parts list Fig. 158(1)

1шт.
