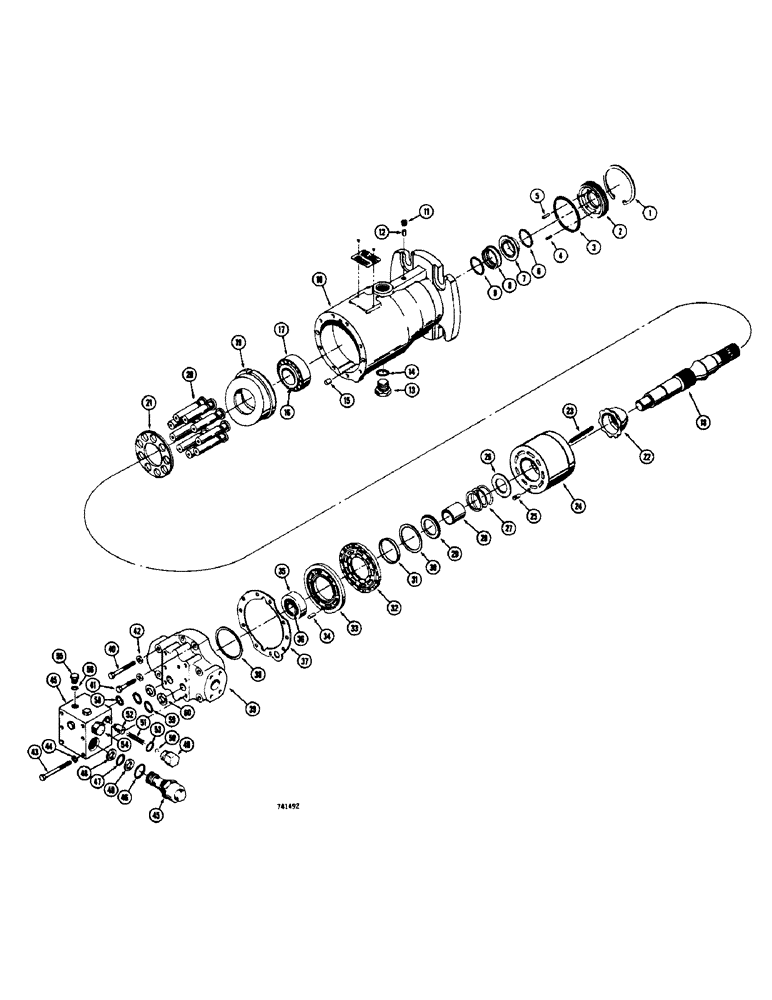

Запчасти Case 475 (111C) - R33749 HYDROSTATIC MOTOR, TRANSMISSION DRIVE (21) - TRANSMISSION

R33749

MOTOR, HYDRAULIC

MOTOR - hydrostatic, fixed displacement (Sundstrand #23-3028)

1шт.

1

D63418

SNAP RING,3.875", Int, #387

Ring, Snap, 3.875", Int, #387

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

3

F23157

AXLE PIN

PIN - grooved

1шт.

D66240

KIT

- seal

1шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - kit

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - retainer

8шт.

6

D63419

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - stationery

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rotating, bronze

1шт.

9

D63419

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

10

D63423

HOUSING

- pump

1шт.

11

F23137

PLUG

- special

1шт.

12

D63417

PIN - retaining

1шт.

13

86512512

PLUG,7/8" - 14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

F23124

AXLE PIN

PIN - aligning

2шт.

16

K5259

CONE

- bearing

1шт.

17

R10218

BEARING CUP

CUP - bearing

1шт.

18

D63426

SHAFT

- motor

1шт.

19

D63427

PLATE

- swash, fixed

1шт.

D63428

BLOCK

KIT - block, cylinder

1шт.

20

D63431

PISTON - cylinder

9шт.

21

D63432

RETAINER

- piston

1шт.

22

D63433

GUIDE

- retainer

1шт.

23

D63434

SPRING

- retaining

6шт.

24

D63435

CYLINDER BLOCK

1шт.

25

R26252

PIN

- alignment

1шт.

26

D63436

SEAT

- spring

1шт.

27

D63437

SPRING

- cylinder

1шт.

28

D63438

GUIDE

- spring

1шт.

29

D63439

RETAINER

- spring

1шт.

30

D63416

OIL SEAL

RING - retaining

1шт.

31

D63440

PILOT VALVE

PILOT - bearing

1шт.

32

D64836

PLATE

- bearing, rear

1шт.

New part has inner circle of holes removed. No part number change. It is all right to mix.

1шт.

33

D63422

PLATE

- bearing, rear

1шт.

34

NLS

NO LONGER SERVICED

PIN - alignment

1шт.

35

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CUP - bearing

1шт.

36

D31948

BEARING CUP,2.5312" OD x 0.6563"

CONE - bearing

1шт.

37

D63421

GASKET

- end cap

1шт.

38

D63430

SHIM,.010" Thk

(If used) .010" Thk

1шт.

38

D64835

SHIM - .020" (If used)

1шт.

39

D63429

CAP - end, motor

1шт.

40

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

4шт.

41

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

5шт.

42

95-7

WASHER,7/16"

- flat () 7/16"

9шт.

43

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

6шт.

44

F23187

WASHER

- special (5/16")

6шт.

F89261

MANIFOLD

AND VALVE - motor

1шт.

All parts of manifold and valve that are not illustrated are not serviced separately.

1шт.

F89262

LOCK VALVE

VALVE ASSEMBLY - relief, high pressure

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

46

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, outer

1шт.

47

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL - "O" ring, inner

1шт.

48

A16560

RING - backup

2шт.

49

NSS

NOT SOLD SEPARAT

PLUG - charge valve

1шт.

50

H570283

SHIM

- charge valve

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - charge valve

1шт.

52

NSS

NOT SOLD SEPARAT

PISTON - charge valve

1шт.

53

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, charge valve

1шт.

54

NSS

NOT SOLD SEPARAT

PLUG - shuttle

2шт.

55

NSS

NOT SOLD SEPARAT

PLUG

3шт.

56

NSS

NOT SOLD SEPARAT

SEAL - "O" ring

3шт.

57

NSS

NOT SOLD SEPARAT

HOUSING - manifold

1шт.

All parts of manifold and valve that are not illustrated are not serviced separately.

1шт.

R29539

SEAL ASSY.

SEAL KIT - manifold

1шт.

58

R15366

O-RING,7/8" ID x 1" OD x 1/16"

SEAL - "O" ring

1шт.

59

F23189

O-RING

SEAL - "O" ring

2шт.

60

F23190

O-RING

RING - backup

2шт.
