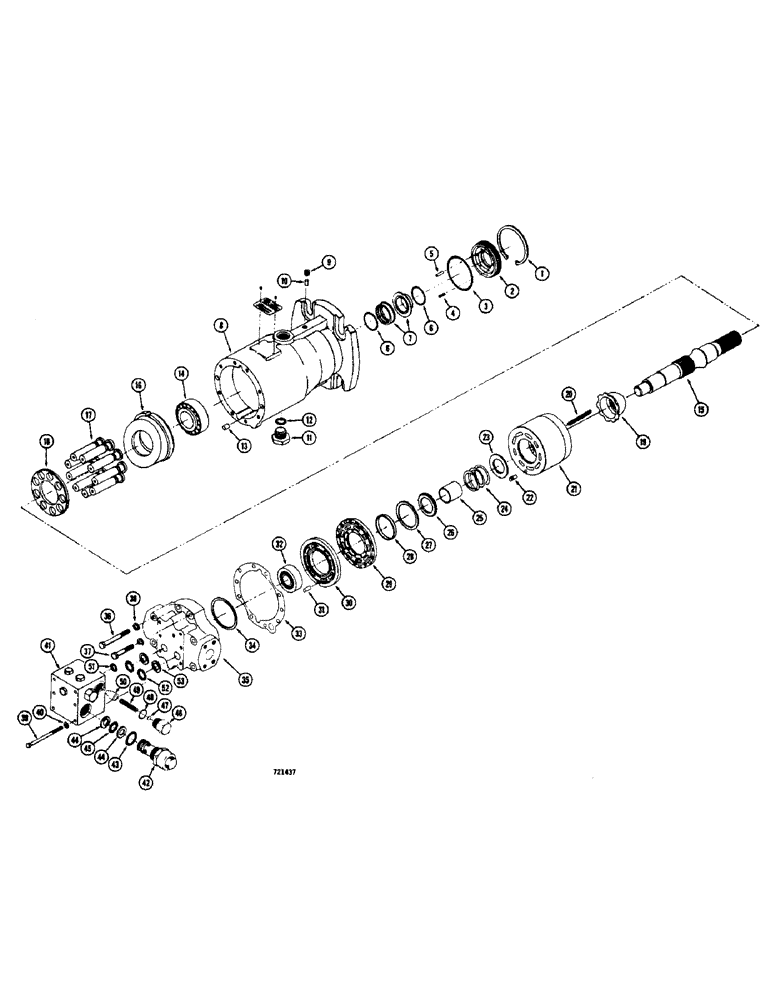

Запчасти Case 475 (110) - R25521 HYDROSTATIC MOTOR, TRANSMISSION DRIVE (21) - TRANSMISSION

R25521

MOTOR, HYDRAULIC

MOTOR - hydrostatic, fixed displacement (Sundstrand #22-3031)

1шт.

R29533

SEAL KIT

KIT - seal

1шт.

1

F23160

RING

- retaining

1шт.

2

F23159

RETAINER

- seal

1шт.

3

F23158

O-RING

SEAL - "O" ring

1шт.

4

F23156

SPRING

- retainer

6шт.

5

F23157

AXLE PIN

PIN - grooved

1шт.

6

R26322

O-RING

SEAL - "O" ring

2шт.

7

F89258

SEAL

KIT

1шт.

8

R26266

HOUSING

- pump

1шт.

9

F23137

PLUG

- special

1шт.

10

R26326

PIN - retaining

1шт.

11

86512512

PLUG,7/8" - 14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

F23124

AXLE PIN

PIN - aligning

2шт.

14

R26257

BEARING, BALL

BEARING ASSEMBLY - front

1шт.

15

R26265

SHAFT

- motor

1шт.

16

R26267

LARGE PLATE

PLATE - swash, fixed

1шт.

R29538

BLOCK

KIT - block, cylinder

1шт.

17

R30960

PISTON - cylinder

9шт.

18

F23182

RETAINER

- piston

1шт.

19

F23181

GUIDE

- retainer

1шт.

20

F23179

SPRING

- retaining

9шт.

21

F89259

CYLINDER BLOCK

1шт.

22

R26252

PIN

- alignment

1шт.

23

F23178

SPRING SEAT

SEAT - spring

1шт.

24

R30961

SPRING

- cylinder

1шт.

25

F23176

GUIDE

- spring

1шт.

26

F23175

RETAINER

- spring

1шт.

27

F23174

RING, SNAP

RING - retaining

1шт.

28

F23173

RING

PILOT - bearing

1шт.

29

F23123

LARGE PLATE

PLATE - bearing, rear

1шт.

30

R26269

PLATE

- bearing, rear

1шт.

31

F23119

AXLE PIN

PIN - alignment

1шт.

32

R26256

BEARING

ASSEMBLY - rear

1шт.

33

F23117

GASKET,0.25mm Thk

- end cap

1шт.

34

F23116

SCREW

SHIM

1шт.

35

R26279

CAP - end, motor

1шт.

36

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

5шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

38

F23114

WASHER

- special

8шт.

R29543

HYDRAULIC VALVE

MANIFOLD AND VALVE ASSEMBLY - motor

1шт.

All parts of manifold and valve that are not illustrated are not serviced separately.

1шт.

39

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

6шт.

40

F23187

WASHER

- special (5/16")

6шт.

F89261

MANIFOLD

AND VALVE - motor

1шт.

41

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - motor

1шт.

42

F89262

LOCK VALVE

VALVE - high pressure relief

2шт.

43

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

44

A16860

RING

- backup

4шт.

45

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

46

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

47

H570283

SHIM

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

R29539

SEAL ASSY.

SEAL KIT - manifold

1шт.

51

R15366

O-RING,7/8" ID x 1" OD x 1/16"

SEAL - "O" ring

1шт.

52

F23189

O-RING

SEAL - "O" ring

2шт.

53

F23190

O-RING

RING - back up

2шт.
