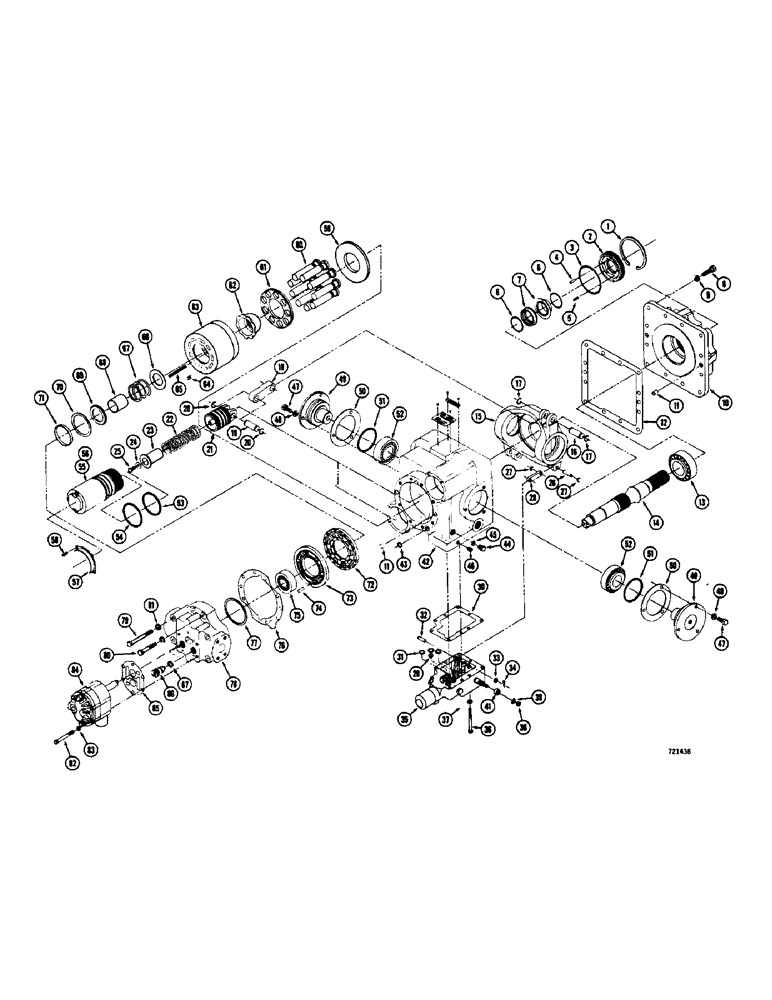

Запчасти Case 475 (108) - R25520 HYDROSTATIC PUMP, TRANSMISSION DRIVE (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
R25520
PUMP
- hydrostatic, variable displacement (Sundstrand #21-2024)
1шт.
R29533
SEAL KIT
KIT - seal
1шт.
1
F23160
RING
- retaining
1шт.
2
F23159
RETAINER
- seal
1шт.
3
F23158
O-RING
SEAL - "O" ring
1шт.
4
F23157
AXLE PIN
PIN - grooved
1шт.
5
F23156
SPRING
- seal retaining
6шт.
6
R26322
O-RING
SEAL - "O" ring
2шт.
7
F89258
SEAL
KIT
2шт.
8
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
12шт.
9
F23114
WASHER
- special
12шт.
10
R26284
COVER - front
1шт.
11
F23124
AXLE PIN
PIN - dowel
4шт.
12
H220855
GASKET
- front cover
1шт.
13
R26254
BEARING
ASSEMBLY - front
1шт.
14
R26285
SHAFT
- pump
1шт.
16
R30954
PIN
-, Serial Range: plate-link
2шт.
17
R29526
RING
- retaining
4шт.
18
R26295
LINK -, Serial Range: plate-piston
2шт.
19
R26317
PIN
-, Serial Range: link-piston
2шт.
20
R29526
RING
- retaining
4шт.
21
R26274
PISTON ASSY.
PISTON - servo
2шт.
22
R29547
SPRING
- servo piston
2шт.
23
R26283
GUIDE
- spring
2шт.
24
R29545
WASHER
- special
2шт.
25
R29544
SCREW
BOLT - special
2шт.
26
F23149
AXLE PIN
PIN -, Serial Range: link-plate
1шт.
27
R26314
SNAP RING,#25, Ext, E-Type
Ring, Retaining, #25, Ext, E-Type
2шт.
28
F23147
LINK
-, Serial Range: plate-valve
1шт.
29
F23134
PLUG
- valve
1шт.
R29534
KIT
- valve, control
1шт.
30
R26263
GASKET
- valve
1шт.
31
F23125
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
SEAL - "O" ring
3шт.
32
F23135
PIN
-, Serial Range: link-valve
1шт.
33
A22354
WASHER
- plain
1шт.
34
132-4
PIN - cotter, 1/16" x 7/16"
1шт.
35
R29528
CONTROL VALVE
VALVE ASSEMBLY - control
1шт.
36
13-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
9шт.
37
A22354
WASHER
- special
9шт.
38
25-144
JAM NUT,Jam, 1/4"-20, G5
- hex., 1/4" - 20 NC
1шт.
39
193-57
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
40
RESERVED
1шт.
41
F23132
SPACER
- lever
1шт.
42
R26278
HOUSING - pump
1шт.
43
F23125
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
44
9672438
PLUG,7/16" - 20 ORB
1шт.
45
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
46
F23127
SCREW
PLUG - special
1шт.
47
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
48
F23187
WASHER
- special
6шт.
49
H219485
TRUNNION - bearing retaining
2шт.
50
R26273
GASKET
SET - trunnion
2шт.
51
R26327
O-RING
SEAL - "O" ring
2шт.
52
R26281
BEARING WASHER
BEARING ASSEMBLY - trunnion
2шт.
R29535
KIT
- sleeve, servo
1шт.
53
R26323
O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
54
R26324
O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
55
F23215
PLUG
- cylinder end
4шт.
56
R26325
SLEEVE CYLINDER
SLEEVE - cylinder, servo
2шт.
57
R26297
RETAINER
- sleeve
2шт.
58
R26316
SCREW
- special
4шт.
59
R29529
PLATE
- thrust
1шт.
R29536
BLOCK
KIT - block, cylinder
1шт.
60
R26275
PISTON
9шт.
61
F23207
FLANGE
RETAINER - piston
1шт.
62
F23205
GUIDE
- retainer
1шт.
63
F89263
BLOCK
CYLINDER BLOCK
1шт.
64
F23203
PIN
- guide
1шт.
65
F23204
SPRING
- retaining
9шт.
66
F23202
SEAT
- spring
1шт.
67
R26276
SPRING - cylinder block
1шт.
68
F23200
GUIDE
- spring
1шт.
69
F23199
RETAINER
- spring
1шт.
70
F23198
SEAL ASSY.
RING - retaining
1шт.
71
F23197
WASHER
PILOT - bearing plate
1шт.
72
F89273
PLATE ASSY.
PLATE - bearing support, front
1шт.
73
H246587
PLATE
- bearing support, rear
1шт.
74
NLS
NO LONGER SERVICED
PIN - alignment
1шт.
75
R26280
BEARING
ASSEMBLY - rear
1шт.
76
F23193
HEADED PIN,3/4" x 4 11/16"
GASKET - end cap
1шт.
77
F23192
SHIM
1шт.
78
H246553
CAP - pump mounting
1шт.
79
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
5шт.
80
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3шт.
81
F23114
WASHER
- special
8шт.
R29537
KIT
- pump, charging
1шт.
82
13-448
BOLT,Hex, 1/4" - 20 x 3", Gr 5
4шт.
83
A22354
WASHER
- special
4шт.
84
R30957
PUMP
ASSEMBLY - charging
1шт.
85
R26262
GASKET
- pump
1шт.
86
F89256
VALVE, CHECK
VALVE - check
2шт.
87
F23111
O-RING
SEAL - "O" ring
1шт.
Выбрано товаров: 93
